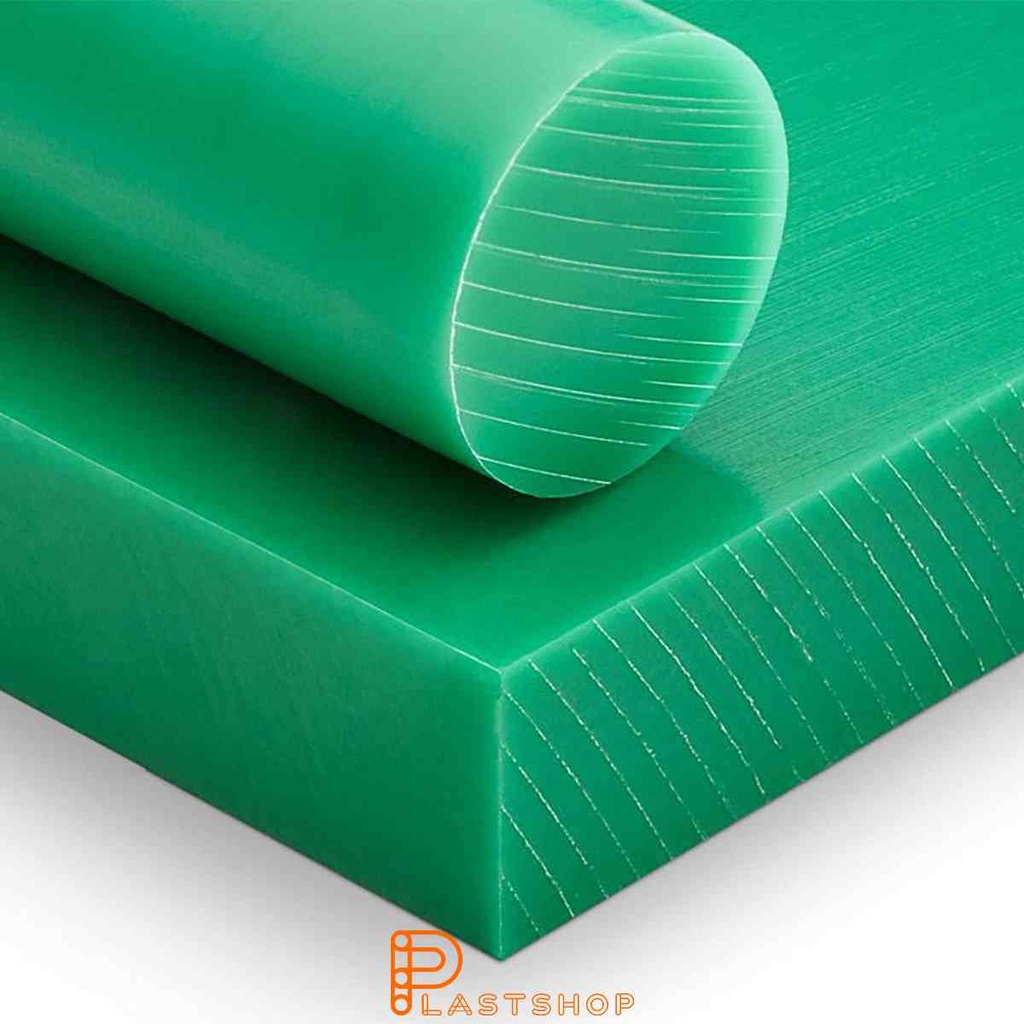

PE-1000 3000x1250x50 mm grön
High mechanical strength and impact resistance make HMWPE an excellent choice for demanding industrial applications. It also features good chemical resistance and low moisture absorption, making it suitable for use in environments where contact with chemicals is possible. HMWPE has excellent insulating properties, both thermal and electrical. It can be used as protective components and seals where impact and stress are common. If you need a material that can handle demanding conditions, HMWPE may be the right choice. Contact us if you want to know more about how HMWPE can be used in your specific application.
Technical Specifications
Color
Green
Length
3000 mm
Material
Produktens basmaterial
Thickness
50 mm
Width
1250 mm
| Property | Value | Unit | Test standard |
|---|---|---|---|
| Density & Weight | |||
| Density | 0.95 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.01 | % | |
| Water Absorption to Saturation | 0.01 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 17 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 800 | MPa | DIN EN ISO 527-1/2 |
| Breakdown Voltage | 40 | MPa | ISO 527 |
| Break Elongation | 200 | % | ISO 527 |
| Flexural Properties | |||
| Flexural Strength | 17 | MPa | ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 80 | kJ/m² | ISO 11542-2 |
| Impact Resistance (Charpy) | 80 | kJ/m² | DIN EN ISO 179-1/2 |
| Hardness | |||
| Hardness Shore D | 60 | ° Shore D | shore D |
| Ball pressure hardness | 34 | MPa | ISO 2039-1 |
| Compressive Properties | |||
| Creep Voltage at 1% Elongation | 24 | MPa | ISO 178 |
| Temperature Limits | |||
| Melting point | 135 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 100 | °C | |
| Maximum Operating Temperature | 64 | °C | |
| Minimum temperature | -214 | °C | UL746B |
| Heat deflection temperature (HDT/A) | 42 | °C | ISO 75 |
| Heat deflection temperature (HDT/B) | 65 | °C | ISO 75 |
| Vicat softening temperature (VST/B/50) | 79 | °C | DIN EN ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.4 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 2 | 10⁻⁴/K | ISO 11359 |
| Insulation Properties | |||
| Dielectric Strength | 45 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 1 | Ω | IEC 60093 |
| Dielectric Constant (1 MHz) | 2.3 | - | IEC 60250 |
| Dielectric Constant (100 Hz) | 2.55 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹² | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 3 | UL 94 | |
Identification
| Product name | Polyeten (PE) |
|---|---|
| Classification | not_classified |
| Supplier | ARC Gruppen AB // PlastShop.se |
| Chemical characterization | Polyeten (PE), CAS 9002-88-4 |
| Physical/chemical hazards | Brandfarlig vid höga temperaturer.. Damm kan orsaka mekanisk irritation vid bearbetning. |
|---|---|
| Health hazards | Brandfarlig vid höga temperaturer.. Damm kan orsaka mekanisk irritation vid bearbetning. |
| Environmental hazards | Materialet är inte skadligt för miljön, men är inte biologiskt nedbrytbart. |
Physical properties
| Fysisk form | Fast, halvgenomskinlig till ogenomskinlig termoplast. Vit till svart. |
|---|---|
| Färg | Fast, halvgenomskinlig till ogenomskinlig termoplast. Vit till svart. |
| Odour | Luktfri |
| Melting point | 125-135°C (PE-HD), 130-145°C (PE-UHMW) |
|---|---|
| Auto-ignition | ca 350°C |
| Decomposition temp. | >350 °C |
| Solubility | Olöslig i vatten |
Handling and storage
| Handling | Sug bort spån vid bearbetning. Undvik överhettning. |
|---|---|
| Storage | Förvara torrt och svalt. Håll borta från öppen låga. Välventilerade utrymmen. |
Personal protection
| Gloves | Skyddshandskar vid kontakt med varmt material. |
|---|---|
| Eyes | Skyddsglasögon vid bearbetning. |
| Respiratory | Adekvat ventilering vid bearbetning. |
Stability and reactivity
| Förhållanden | Temperaturer över smältpunkten. Undvik UV-exponering. |
|---|---|
| Materials to avoid | Starka oxidanter, syror. |
| Decomposition products | Koldioxid, kolmonoxid, vaxångor. |
Transport information
Inte klassificerad som farligt gods.
Legal specifications
Produkten kräver ingen varningsetikett enligt EU-direktiv.
Resistant
Partially resistant
Not resistant
| Chemical | Concentration | Resist. |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium chloride | — | |
| Amyl alcohol | — | |
| Benzene | — | |
| Boric acid | 100 | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Citric acid | 10 | |
| Cresol | — | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | — | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Food oil | — | |
| Formaldehyde, aqueous | 40 | |
| Formic acid | 10 | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | — | |
| Hydrogen peroxide | 10 | |
| Isopropyl alcohol | 100 | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100 | |
| Methylene chloride | 100 | |
| Milk | — | |
| Mineral oils, aromatic free | — | |
| Nitric acid | 50 | |
| Nitric acid | 10 | |
| Nitrobenzene | — | |
| Oxalic acid | — | |
| Ozone (gas) | ≤ 0.5 ppm | |
| Paraffin oil | 100 | |
| Perchloroethylene | — | |
| Petroleum ether | 100 | |
| Phenol, aqueous | ca. 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | — | |
| Propyl alcohol | — | |
| Silicone oil | — | |
| Sodium carbonate, aqueous | — | |
| Sodium chloride, aqueous | — | |
| Sodium hydrogen sulfite | — | |
| Sodium hydroxide solution (caustic soda) | 60 | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate, aqueous | — | |
| Sodium thiosulfate | — | |
| Sulphuric acid | 96 | |
| Transformer oil | — | |
| Vinegar, standard | 5 - 10 | |
| Water | — | |
| Xylene | — |
