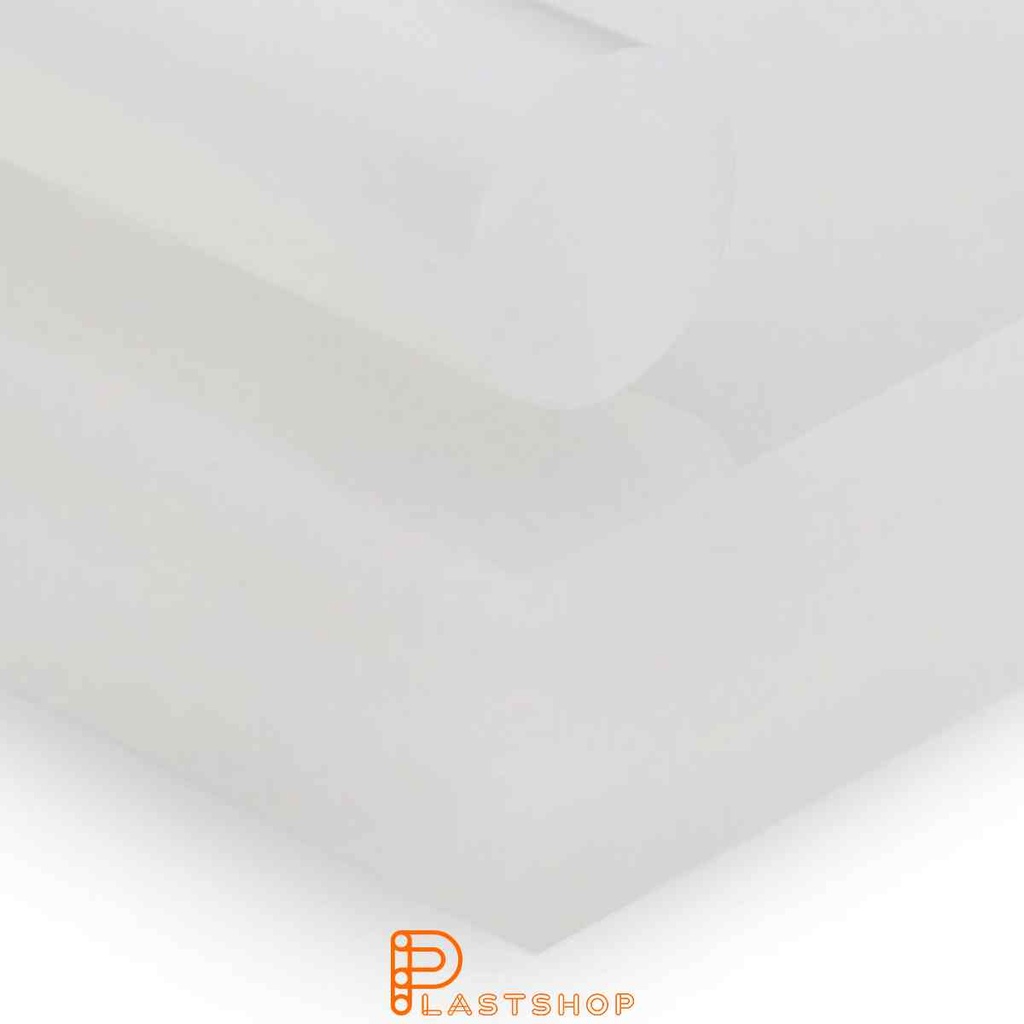

  3. PP-C 4120x2010x10 mm natural
EUR List Price €
PP-C 4120x2010x10 mm natural

PP-C 4120x2010x10 mm natural

https://utv.plastshop.se/web/image/product.template/30403/image_1920?unique=adfe78f
SKU:
P2201603
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PP Sheet

Share

PP-C 4120x2010x10 mm natur High chemical resistance is one of the key properties of this material, making it resistant to corrosion and chemical degradation. It can withstand a range of chemicals, acids, and bases, making it ideal for packaging chemicals and food. It also has a low density, resulting in lightweight products that are easy to handle and transport. It is easy to machine with cutting tools and can therefore be customized as needed. An example of its use is in packaging chemicals and food, where the material's chemical resistance and low density are particularly valuable. Contact us if you want to know more about how this material can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 0.9 g/cm³ DIN EN ISO 1183-1
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.1 % DIN EN ISO 62
Water Absorption to Saturation 0.1 % DIN EN ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 24 MPa DIN EN ISO 527
Modulus of elasticity (tensile) 1241.1765 MPa DIN EN ISO 527
Break Elongation 50 % DIN EN ISO 527
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 4 kJ/m² DIN EN ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 67.25 ° Shore D DIN EN ISO 868
Ball pressure hardness 50 MPa DIN EN ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 164.0714 °C ISO 11357-3
Maximal operating temperature (short-term) 115.7143 °C
Maximum Operating Temperature 75 °C
Minimum temperature -23 °C
Vicat softening temperature (VST/B/50) 87.1429 °C DIN EN ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.2 W/(m·K) DIN 52612-1
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.0155 10⁻⁴/K DIN 53752
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 40 kV/mm IEC 60243
Volume Resistivity 1014 Ω·cm DIN EN 62631-3-1
Dielectric Constant (1 MHz) 2.48 - IEC 60250
Dielectric loss factor (1 MHz) 0.0002 - IEC 60250
Dielectric loss factor (100 Hz) 0.00019 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 1014 Ω DIN EN 62631-3-2
Comparative Tracking Index (CTI) 600 V IEC 60112
