  3. PP-H 3000x1500x20 mm natur (protective film) [P2201219] PP-H 3000x1500x20 mm natur (protective film)
EUR List Price

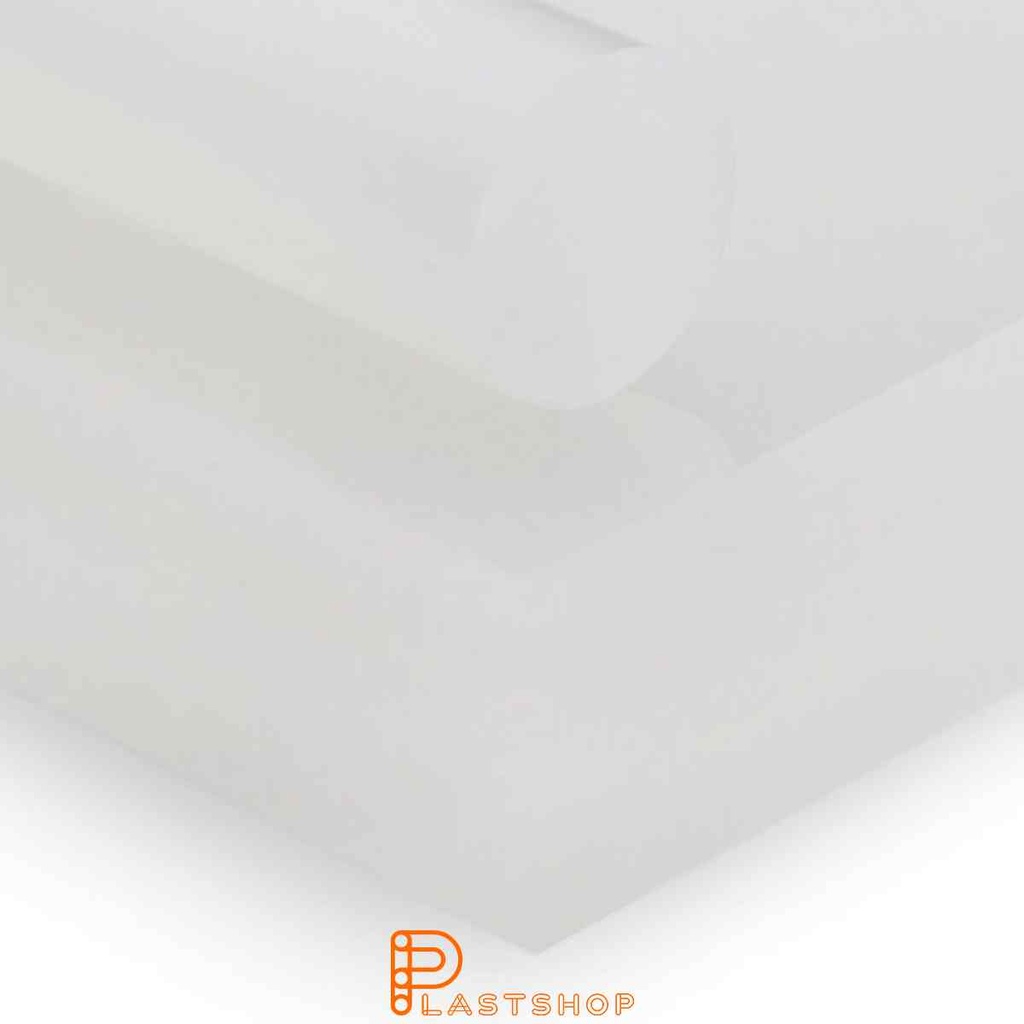

PP-H 3000x1500x20 mm natur (protective film)

PP-H 3000x1500x20 mm natur (protective film)

P2201219

[P2201219] PP-H 3000x1500x20 mm natur (protective film)

https://utv.plastshop.se/web/image/product.template/30604/image_1920?unique=f58e450
Material PP Format Plate Length 3000 mm Width 1500 mm Thickness 20 mm Color Natural
Begär offert
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

Egenskaper

Color Natural
Length 3000 mm
Thickness 20 mm
Width 1500 mm
Visa alla tekniska specifikationer
Material PP
Format Plate
Length 3000 mm
Width 1500 mm
Thickness 20 mm
Color Natural

This content will be shared across all product pages.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Om produkten

PP-H 3000x1500x20 mm natur (skyddsfolie) High chemical resistance is one of the key properties of this material, making it resistant to corrosion and chemical degradation. It can withstand a range of chemicals, acids, and bases, making it ideal for packaging chemicals and food. It also has a low density, resulting in lightweight products that are easy to handle and transport. This material is easy to machine and can be customized as needed. It is commonly used in the packaging industry, automotive industry, electronics, and more. It is an excellent choice for applications where chemical resistance and low weight are important. Do you have questions about the material? Contact us.

Tekniska specifikationer

Color
Natural
Length
3000 mm
Material

Produktens basmaterial

Thickness
20 mm
Width
1500 mm
Fördelar
Chemical Resistant

God motståndskraft mot kemikalier, syror och baser

Electrically Insulating

Hög volym- och ytresistivitet

Food Safe

Godkänd för kontakt med livsmedel (FDA/EU 10/2011)

Low Water Absorption

Minimal fuktupptagning, dimensionsstabil

Recyclable

Materialet kan återvinnas

Weldable

Kan sammanfogas genom svetsning

Certifieringar
EU 10/2011 FDA REACH RoHS
Bearbetning
CNC Machining

Datorstödd bearbetning

Drilling

Håltagning med borr

Milling

Bearbetning med fräs

Sawing

Kapning med såg (band-, cirkelsåg)

Turning

Bearbetning i svarv

Waterjet Cutting

Skärning med högtrycksvatten

Welding

Sammanfogning genom svetsning (varmgas, spegel, ultraljud)

Egenskap Värde Enhet Teststandard
Density & Weight
Density 0.91 g/cm³ ISO 1183
Moisture Absorption
Water absorption to saturation 0.2 % ISO 62
Water Absorption to Saturation 0.2 % ISO 62
Tensile Properties
Tensile Strength 36 MPa ISO 527
Modulus of elasticity (tensile) 1700 MPa ISO 527-2
Breakdown Voltage 30 MPa ISO 527
Break Elongation 8 % ISO 527-2
Flexural Properties
Flexural Strength 37 MPa DIN EN ISO 527-2
Impact Resistance
Notched impact strength (Charpy) 9 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 7.7 kJ/m² ISO 179
Hardness
Hardness Shore D 72 ° Shore D ISO 868
Ball pressure hardness 110 MPa ISO 2039
Temperature Limits
Melting point 161 °C DIN EN ISO 11357
Maximal operating temperature (short-term) 127 °C UL746B
Maximum Operating Temperature 80 °C
Minimum temperature -7 °C
Heat deflection temperature (HDT/A) 54 °C ISO 75
Heat deflection temperature (HDT/B) 90 °C ISO 75
Vicat softening temperature (VST/B/50) 50 °C ISO 306
Thermal Conductivity
Thermal Conductivity 0.27 W/(m·K) ISO 22007-4
Thermal Expansion
Thermal Expansion Coefficient 1.6 10⁻⁴/K ISO 11359-2
Insulation Properties
Dielectric Strength 40 kV/mm IEC 60243-1
Volume Resistivity 10¹⁴ Ω DIN EN 62631-3-1
Dielectric Constant (1 MHz) 2.4 - IEC 60250
Dielectric loss factor (1 MHz) 13.4 - IEC 60250
Dielectric loss factor (100 Hz) 0.0 - IEC 60250
Static spread
Surface Resistivity 10¹³ Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Flammability Classification (UL 94) 60695 UL 94
Ladda ner tekniskt datablad (PDF)
Identifiering
ProduktnamnPolypropylen (PP)
Klassificeringnot_classified
Fysikaliska egenskaper
UtseendeFast, halvgenomskinlig termoplast. Vit till naturvit.
LuktLuktfri
Smältpunkt160-170°C
Nedbrytningstemp.>350 °C
Självantändningca 390°C
LöslighetOlöslig i vatten
Ladda ner komplett säkerhetsblad (PDF)
Beständig Delvis beständig Ej beständig
KemikalieKoncentrationBeständighet
1,4-Dioxane 100
2-Hydroxypropionic acid (lactic acid) 90
Acetic acid 100
Acetone 100
Ammonia -
Ammonium chloride -
Amyl alcohol -
Benzene -
Bleaching solution -
Boric acid 100
Brake fluid -
Butyl acetate -
Calcium chloride -
Carbon disulphide 100
Carbon tetrachloride -
Chlorine (gas) 100
Chlorobenzene 100
Chloroform -
Citric acid 10
Cresol -
Cyclohexanone 100
Cyclohexene 100
Diesel -
Diethylene oxide -
Ethyl acetate 100
Ethyl alcohol (ethanol) 96
Ethylene chloride 100
Food oil -
Formaldehyde, aqueous 40
Formic acid 10
Frost protection agent -
Fuel oil -
Fuel, aromatic free -
Glycerine 100
Glycol 100
Heptane 100
Hydrochloric acid 10
Hydrochloric acid (concentrated) -
Hydrofluoric acid 40
Hydrogen peroxide 10
Hydrogen sulfide, aqueous -
Isopropyl alcohol 100
Linseed oil -
Mercurochrome -
Methyl alcohol (methanol) 100
Methyl ethyl ketone (MEK) 100
Methylene chloride 100
Milk -
Mineral oils (aromatic free) -
Nitric acid 50
Nitric acid 10
Nitrobenzene -
Oxalic acid -
Ozone (gas) ≤ 0.5 ppm
Paraffin oil 100
Perchloroethylene -
Petroleum ether 100
Phenol, aqueous ca. 9
Phosphoric acid 50
Potassium hydroxide solution 50
Premium fuel -
Propyl alcohol -
Pyridine -
Silicone oil -
Sodium carbonate, aqueous -
Sodium chloride, aqueous -
Sodium hydrogen sulfite -
Sodium hydroxide solution (caustic soda) 15
Sodium hydroxide solution (caustic soda) 60
Sodium nitrate, aqueous -
Sodium thiosulfate -
Sulphuric acid 96
Tetrahydrofuran (THF) 100
Toluene 100
Transformer oil -
Trichloroethylene 100
Vinegar, standard 5 - 10
Water -
Xylene -
Ladda ner kemisk beständighet (PDF)

Specifications

Material PP
Format Plate
Length 3000 mm
Width 1500 mm
Thickness 20 mm
Color Natural
