  3. PE-500 300x1000 mm natural
EUR List Price €

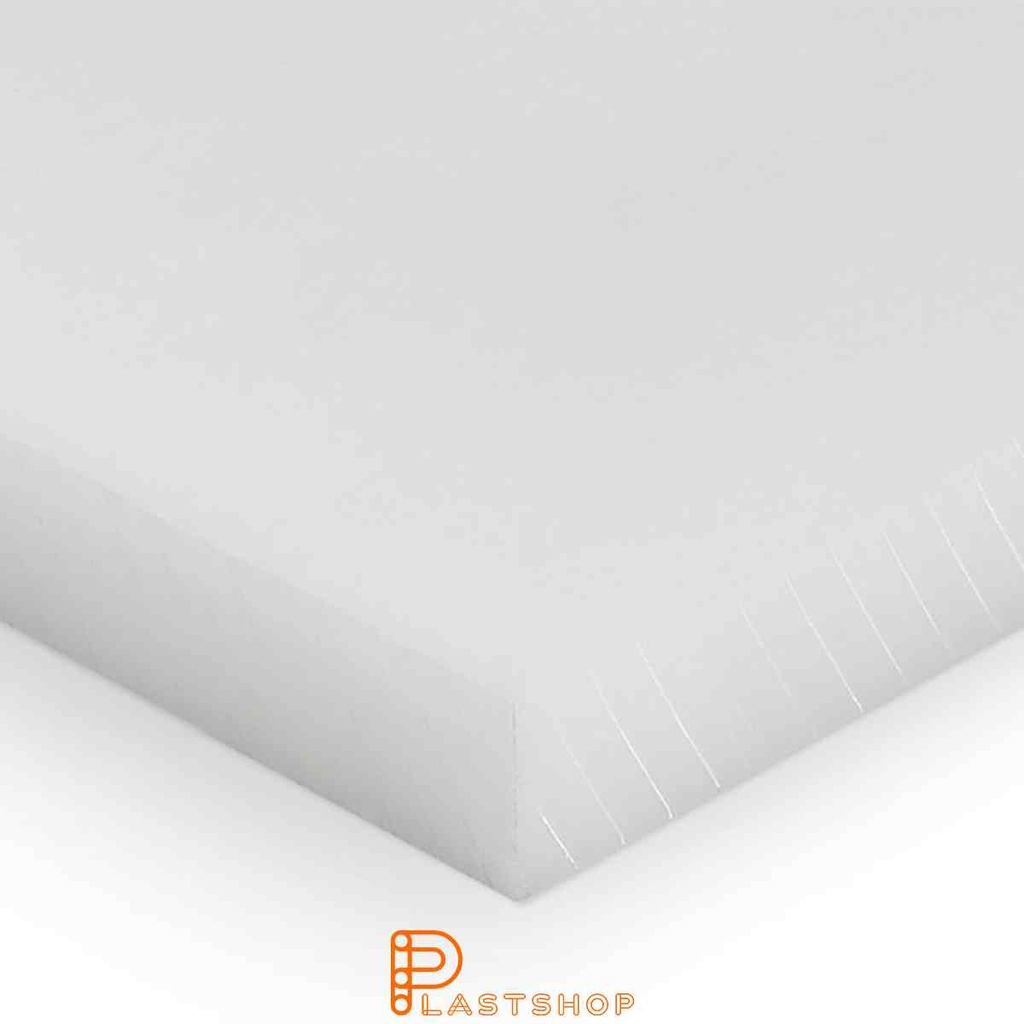

PE-500 300x1000 mm natural

PE-500 300x1000 mm natural

https://utv.plastshop.se/web/image/product.template/33635/image_1920?unique=e9ee6f8
SKU:
P2200653
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PE Round Bar

Share

PE-500 300x1000 mm natur This material offers high mechanical strength and impact resistance, making it an excellent choice for demanding industrial applications. It also exhibits good chemical resistance and low moisture absorption, rendering it suitable for use in environments where contact with chemicals is possible. Its good sliding properties and insulating characteristics, both thermal and electrical, make it useful in the electrical and electronics industries. It can be advantageously used as protective components and seals. Contact us if you want to know more about how this material can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.2762 g/cm³ DIN EN ISO 1183-1
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.0071 % DIN EN ISO 62
Water Absorption to Saturation 0.005 % DIN EN ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 24.2 MPa DIN EN ISO 527
Modulus of elasticity (tensile) 1100 MPa DIN EN ISO 527
Break Elongation 138.75 % DIN EN ISO 527
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 2 kJ/m² DIN EN ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 65 ° Shore D DIN EN ISO 868
Ball pressure hardness 50 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 132.5 °C ISO 11357-3
Maximal operating temperature (short-term) 80 °C
Maximum Operating Temperature 54.2857 °C
Minimum temperature -100 °C
Vicat softening temperature (VST/B/50) 79 °C DIN EN ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.4 W/(m·K) DIN 52612-1
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 2.4325 10⁻⁴/K DIN 53752
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 40 kV/mm IEC 60243
Volume Resistivity 1014 Ω DIN EN 62631-3-1
Dielectric Constant (1 MHz) 2.3 - IEC 60250
Dielectric loss factor (1 MHz) 0.0002 - IEC 60250
Dielectric loss factor (100 Hz) 0.0002 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 142872152.8571 Ω DIN EN 62631-3-2
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Egenskap Värde Enhet Teststandard
Flammability Classification (UL 94) 3 UL 94
