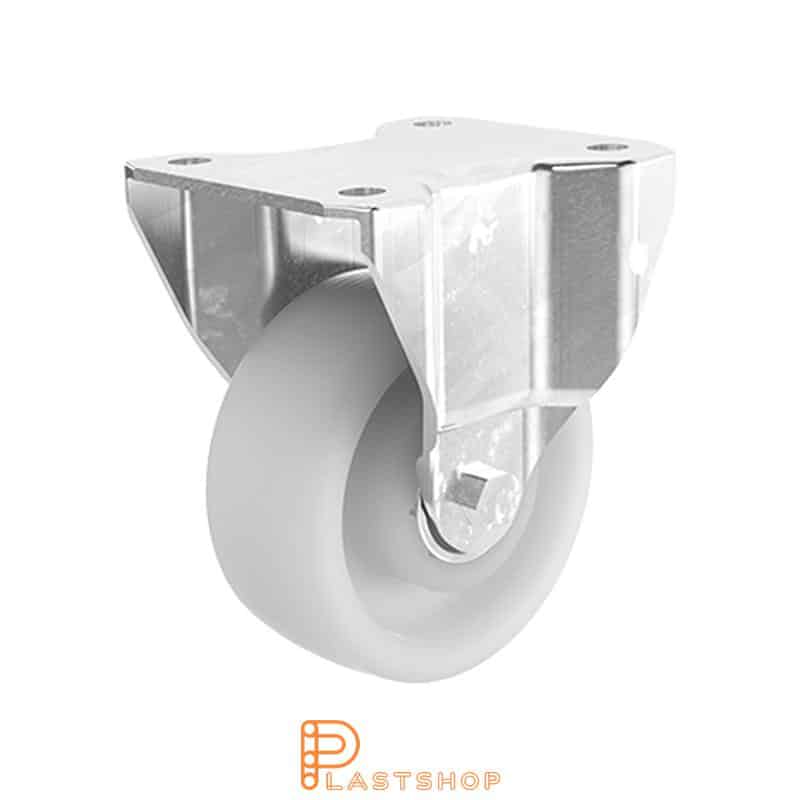

Fixed bracket, flat, wheel diameter 100 mm, construction height 130 mm, hard wheel in solid PA6, 350 kg load capacity, double ball bearing
P2000484[P2000484] Fixed bracket, flat, wheel diameter 100 mm, construction height 130 mm, hard wheel in solid PA6, 350 kg load capacity, double ball bearing
Link wheel diameter
100 mm
Link wheel building height
130 mm
Link wheel load capacity
350 kg
Link wheel bracket type
Fixed bracket
Link wheel mounting type
Top plate
Link wheel material track
PA6
Link wheel material hub
PA6
This product has no valid combination.
| Link wheel diameter | 100 mm |
| Link wheel building height | 130 mm |
| Link wheel load capacity | 350 kg |
| Link wheel bracket type | Fixed bracket |
| Link wheel mounting type | Top plate |
| Link wheel material track | PA6 |
| Link wheel material hub | PA6 |
This content will be shared across all product pages.
Om produkten
Fast bygel, platta, hjuldiameter 100 mm, bygghöjd 130 mm, hårt hjul i massiv PA6, 350 kg bärighet, dubbla kullager
This rigid bracket features high load capacity thanks to its double ball-bearing wheel. The track is made of PUR with a hardness of 93° Shore A. The bracket is mounted with a plate and has a total load capacity of 350 kg.
It is equipped with a total brake that locks both the wheel and the swivel ring with a single pedal press.
It operates within a temperature range of -20°C to +70°C.
This bracket is well-suited for heavy loads that require stability and safety.
Contact us if you would like to know more about how this bracket can be used in your application.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Wheel | |||
| Link wheel diameter | 100 | mm | |
| Wheel Storage | Dubbla kullager | ||
| Track width | 32 | mm | |
| Bracket | |||
| Building height | 130 | mm | |
| Plate size | 105x85 | ||
| Drill pattern | 80x60 | ||
| Hole Diameter | 10x9 | mm | |
| Load-bearing capacity | |||
| Link wheel load capacity | 350 | kg | |
| Type of mounting | |||
| Hinge type | Fast | ||
| Mounting Method | Topplatta | ||
| Track | |||
| Chain Wheel Material Track | PA6 | ||
| Banana Hardness | 75° Shore D | ||
| Banana color | Natur | ||
| Hub | |||
| Material Hub | PA6 | ||
| Temperature Range | |||
| Lowest temperature | -20 | °C | |
| Maximum Short-term Temperature | 70 | °C | |
| Hinge Material | |||
| Material Bracket | Plåt | ||
Tillgängliga dokument för nedladdning:
Specifications
| Link wheel diameter | 100 mm |
| Link wheel building height | 130 mm |
| Link wheel load capacity | 350 kg |
| Link wheel bracket type | Fixed bracket |
| Link wheel mounting type | Top plate |
| Link wheel material track | PA6 |
| Link wheel material hub | PA6 |
