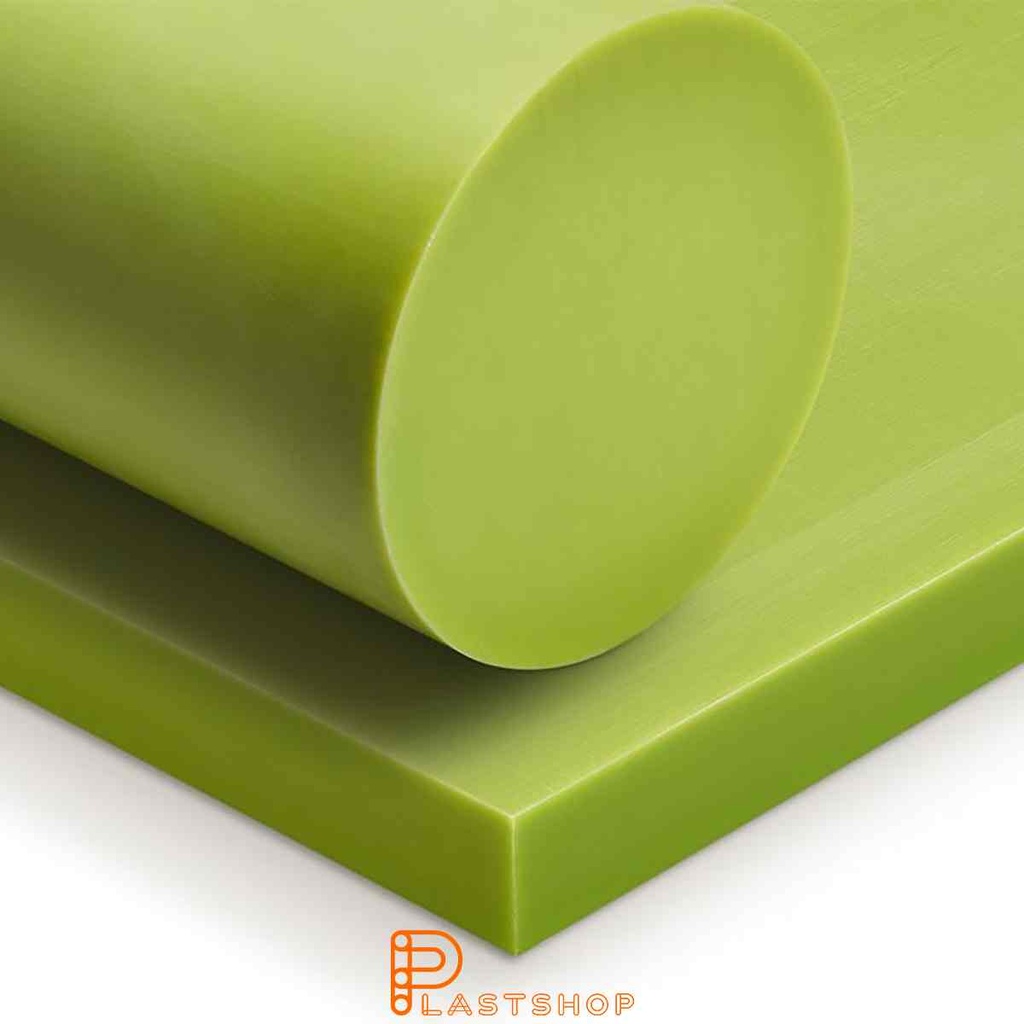

PA6 GL 500x1000 mm grön
P1600305[P1600305] PA6 GL 500x1000 mm grön
Material
PA
Format
Round bar
Length
1000 mm
Outer diameter
500 mm
Color
Green
| Material | PA |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 500 mm |
| Color | Green |
This content will be shared across all product pages.
Om produkten
PA6 GL 500x1000 mm grön
PA6 OL is known for its enhanced lubricity, reduced friction, and excellent wear resistance. The addition of oil provides improved lubricity, which reduces friction between surfaces and results in smoother movement and decreased wear. This material is particularly suitable for use in high-friction applications or where high wear resistance is crucial.
PA6 OL can be used in applications where sliding or movement is common, such as moving parts or mechanical components.
Contact us to learn more about how PA6 OL can be used in your specific application.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.1 | g/cm³ | DIN EN ISO 1183-1 |
| Moisture Absorption | |||
| Water absorption to saturation | 5.65 | % | DIN EN ISO 62 |
| Water Absorption to Saturation | 5.65 | % | DIN EN ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 67.5 | MPa | DIN EN ISO 527 |
| Modulus of elasticity (tensile) | 3000 | MPa | DIN EN ISO 527 |
| Break Elongation | 198.5 | % | DIN EN ISO 527 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 13 | kJ/m² | DIN EN ISO 179 |
| Hardness | |||
| Hardness Shore D | 81 | ° Shore D | ISO 868 |
| Temperature Limits | |||
| Melting point | 218 | °C | ISO 11357-3 |
| Maximal operating temperature (short-term) | 162.5 | °C | |
| Maximum Operating Temperature | 109 | °C | |
| Minimum temperature | -40 | °C | |
| Heat deflection temperature (HDT/A) | 90 | °C | ISO 75 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.3 | W/(m·K) | DIN 52612-1 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.7 | 10⁻⁴/K | DIN 53752 |
| Insulation Properties | |||
| Dielectric Strength | 20 | kV/mm | IEC 60243 |
| Volume Resistivity | 10¹⁵ | Ω·cm | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 3.7 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.02 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹³ | Ω | DIN EN 62631-3-2 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
Color
Green
Length
1000 mm
Material
Produktens basmaterial
Outer Diameter
500 mm
Identifiering
| Produktnamn | Polyamid (PA) / Nylon |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig till ogenomskinlig termoplast. Naturvit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 220-260°C (beroende på typ) |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten (absorberar fukt) |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100 | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric Acid | 10 | |
| Cresol | - | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | - | |
| Fuel (aromatic free) | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | - | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | - | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10 | |
| Nitric Acid | 50 | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤ 0.5 ppm | |
| Paraffine Oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate (aqueous) | - | |
| Sodium Chloride (aqueous) | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor | 60 | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Nitrate (aqueous) | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PA |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 500 mm |
| Color | Green |
