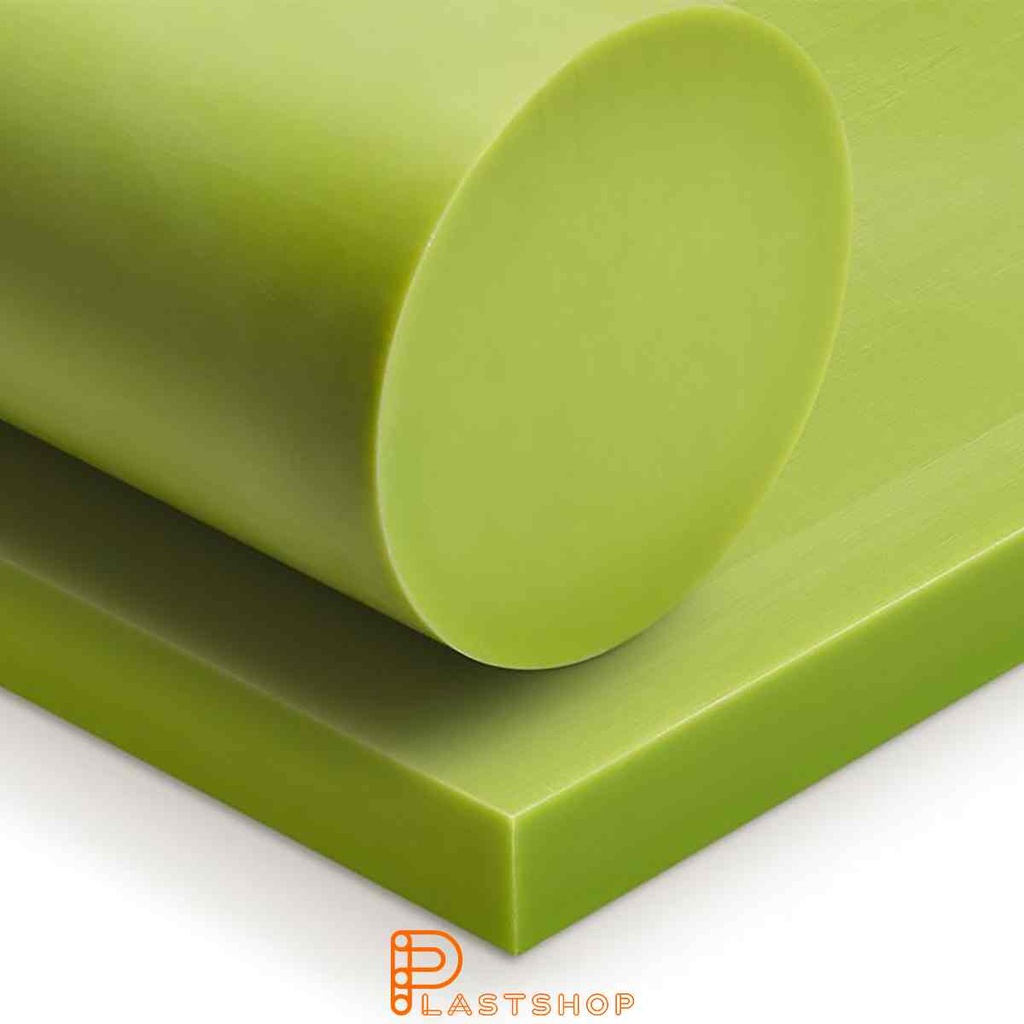

PA6 GL 3048x1220x45 mm grön
P1600259[P1600259] PA6 GL 3048x1220x45 mm grön
Material
PA
Format
Plate
Length
3048 mm
Width
1220 mm
Thickness
45 mm
Color
Green
Egenskaper
Color
Green
Length
3048 mm
Thickness
45 mm
Width
1220 mm
| Material | PA |
| Format | Plate |
| Length | 3048 mm |
| Width | 1220 mm |
| Thickness | 45 mm |
| Color | Green |
This content will be shared across all product pages.
Om produkten
PA6 GL 3048x1220x45 mm grön
Flame-retardant properties make PA an ideal material for applications where fire safety is of utmost importance. It has high tensile strength, stiffness, and impact resistance, making it a strong and durable material choice. PA also offers good chemical resistance to a range of common chemicals and solvents. It is suitable for use in components and parts that require both mechanical strength and fire safety, such as the electrical and electronics industry, automotive industry, and construction sector. If you need help selecting the right material for your application, contact us.
Tekniska specifikationer
Color
Green
Length
3048 mm
Material
Produktens basmaterial
Thickness
45 mm
Width
1220 mm
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.1 | g/cm³ | DIN EN ISO 1183-1 |
| Moisture Absorption | |||
| Water absorption to saturation | 5.65 | % | DIN EN ISO 62 |
| Water Absorption to Saturation | 5.65 | % | DIN EN ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 67.5 | MPa | DIN EN ISO 527 |
| Modulus of elasticity (tensile) | 3000 | MPa | DIN EN ISO 527 |
| Break Elongation | 198.5 | % | DIN EN ISO 527 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 13 | kJ/m² | DIN EN ISO 179 |
| Hardness | |||
| Hardness Shore D | 81 | ° Shore D | ISO 868 |
| Temperature Limits | |||
| Melting point | 218 | °C | ISO 11357-3 |
| Maximal operating temperature (short-term) | 162.5 | °C | |
| Maximum Operating Temperature | 109 | °C | |
| Minimum temperature | -40 | °C | |
| Heat deflection temperature (HDT/A) | 90 | °C | ISO 75 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.3 | W/(m·K) | DIN 52612-1 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.7 | 10⁻⁴/K | DIN 53752 |
| Insulation Properties | |||
| Dielectric Strength | 20 | kV/mm | IEC 60243 |
| Volume Resistivity | 10¹⁵ | Ω·cm | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 3.7 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.02 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹³ | Ω | DIN EN 62631-3-2 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
Identifiering
| Produktnamn | Polyamid (PA) / Nylon |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig till ogenomskinlig termoplast. Naturvit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 220-260°C (beroende på typ) |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten (absorberar fukt) |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100 | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric Acid | 10 | |
| Cresol | - | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | - | |
| Fuel (aromatic free) | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | - | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | - | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10 | |
| Nitric Acid | 50 | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤ 0.5 ppm | |
| Paraffine Oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate (aqueous) | - | |
| Sodium Chloride (aqueous) | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor | 60 | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Nitrate (aqueous) | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PA |
| Format | Plate |
| Length | 3048 mm |
| Width | 1220 mm |
| Thickness | 45 mm |
| Color | Green |
