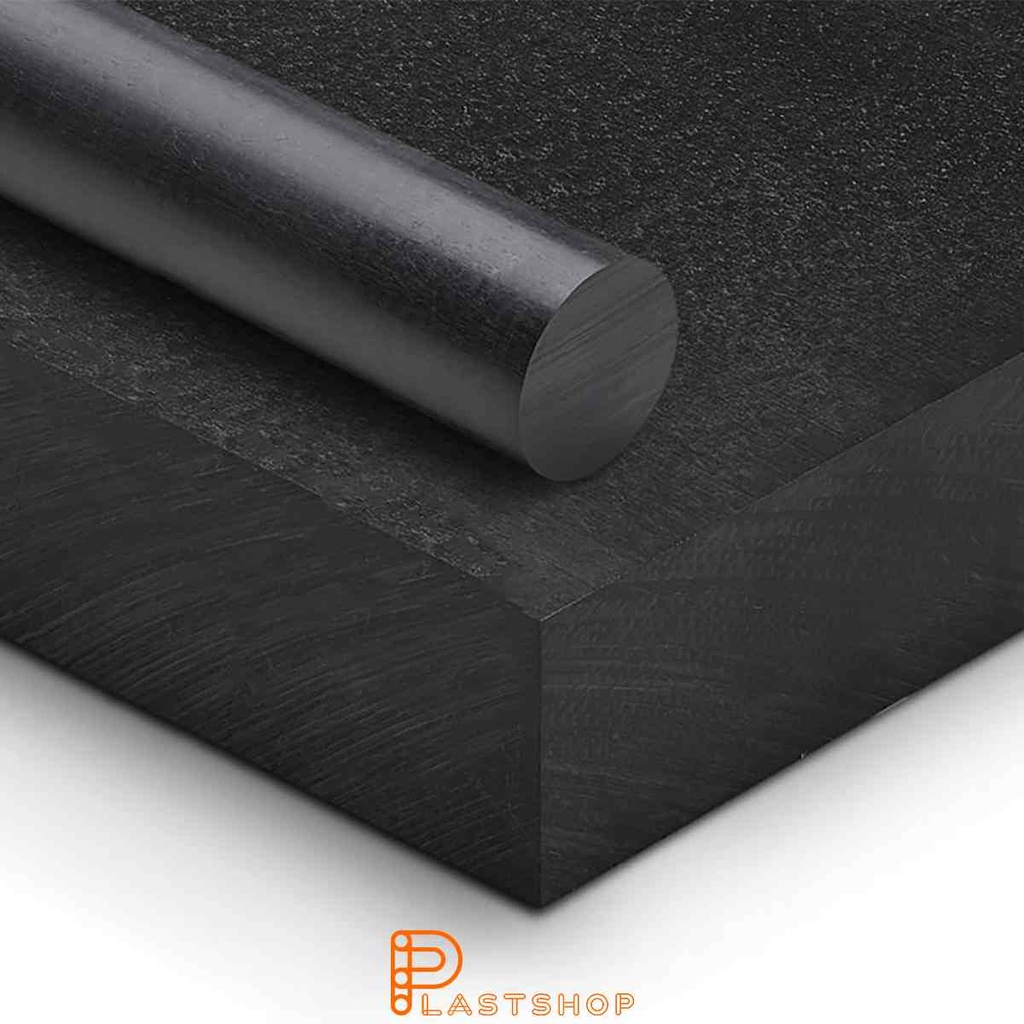

PEEK MG 100x1000 mm svart
P1501614[P1501614] PEEK MG 100x1000 mm svart
Material
PEEK
Format
Round bar
Length
1000 mm
Outer diameter
100 mm
Color
Black
| Material | PEEK |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 100 mm |
| Color | Black |
This content will be shared across all product pages.
Om produkten
PEEK MG 100x1000 mm svart
PEEK MG is a high-performance thermoplastic polymer characterized by a unique combination of exceptional mechanical, thermal, and chemical properties. It is biocompatible and approved for use in medical technology or as implants. PEEK MG also exhibits excellent mechanical properties and high dimensional stability at temperatures up to 260°C.
It is highly resistant to chemicals and corrosion.
PEEK MG is suitable for applications where chemical exposure is common.
It can be used in medical equipment or as a component in chemically aggressive environments.
Contact us if you want to know more about how PEEK MG can be used in your specific application.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.31 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.2 | % | ISO 62 |
| Water Absorption to Saturation | 0.45 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 112 | MPa | ISO527-2 |
| Modulus of elasticity (tensile) | 4400 | MPa | ISO 527-2 |
| Breakdown Voltage | 67 | MPa | ISO 527 |
| Break Elongation | 20 | % | ISO 527-2 |
| Flexural Properties | |||
| Flexural Strength | 110 | MPa | ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 3.5 | kJ/m² | ISO 179/1eA |
| Impact Resistance (Charpy) | 92 | kJ/m² | ISO179/1eU |
| Hardness | |||
| Hardness Shore D | 90 | ° Shore D | DIN EN ISO 868 |
| Ball pressure hardness | 230 | MPa | ISO 2039-1 |
| Temperature Limits | |||
| Melting point | 340 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 291 | °C | UL746B |
| Maximum Operating Temperature | 245 | °C | |
| Minimum temperature | -35 | °C | |
| Heat deflection temperature (HDT/A) | 160 | °C | ISO 75-2 |
| Heat deflection temperature (HDT/B) | 240 | °C | ISO 75 |
| Vicat softening temperature (VST/B/50) | 50 | °C | ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.25 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.5 | 10⁻⁴/K | DIN 11359 |
| Insulation Properties | |||
| Dielectric Strength | 24 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹⁴ | Ω·cm | IEC 60093 |
| Dielectric Constant (1 MHz) | 3.6 | - | IEC 60250 |
| Dielectric Constant (100 Hz) | 3.2 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹³ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 150 | V | IEC 60112 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 0 | UL 94 | |
Color
Black
Length
1000 mm
Material
Produktens basmaterial
Outer Diameter
100 mm
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Flame Retardant
Uppfyller brandklassning V-0 eller bättre
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Temperature Resistant
Behåller mekaniska egenskaper vid höga temperaturer
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Hydrolysis Resistant
Tål långvarig exponering för varmt vatten och ånga
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyetereterketon (PEEK) |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig högpresterande termoplast. Beige till brun/svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 340-345°C |
| Nedbrytningstemp. | >500 °C |
| Självantändning | >580°C |
| Löslighet | Olöslig i vatten och de flesta lösningsmedel |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Ammonia | - | |
| Ammonium chloride | - | |
| Amyl alcohol | - | |
| Apple juice | - | |
| Benzene | - | |
| Boric acid | 100 | |
| Brake fluid | - | |
| Butyl acetate | - | |
| Calcium chloride | - | |
| Carbon tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric acid | 10 | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | - | |
| Diethylene oxide | - | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Food oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic acid | 10 | |
| Frost protection agent | - | |
| Fuel oil | - | |
| Fuel, aromatic free | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | - | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide (aqueous) | - | |
| Isopropyl alcohol | 100 | |
| Linseed oil | - | |
| Mercurochrome | - | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Milk | - | |
| Mineral oils (aromatic free) | - | |
| Nitric acid | 10 | |
| Nitric acid | 50 | |
| Nitrobenzene | - | |
| Oxalic acid | - | |
| Ozone (gas) | - | |
| Paraffin oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum ether | 100 | |
| Phenol (aqueous) | 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | - | |
| Propyl alcohol | - | |
| Pyridine | - | |
| Silicone oil | - | |
| Sodium carbonate (aqueous) | - | |
| Sodium chloride (aqueous) | - | |
| Sodium hydrogen sulfite | - | |
| Sodium hydroxide solution (caustic soda) | 60 | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate (aqueous) | - | |
| Sodium thiosulfate | - | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5-10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PEEK |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 100 mm |
| Color | Black |
