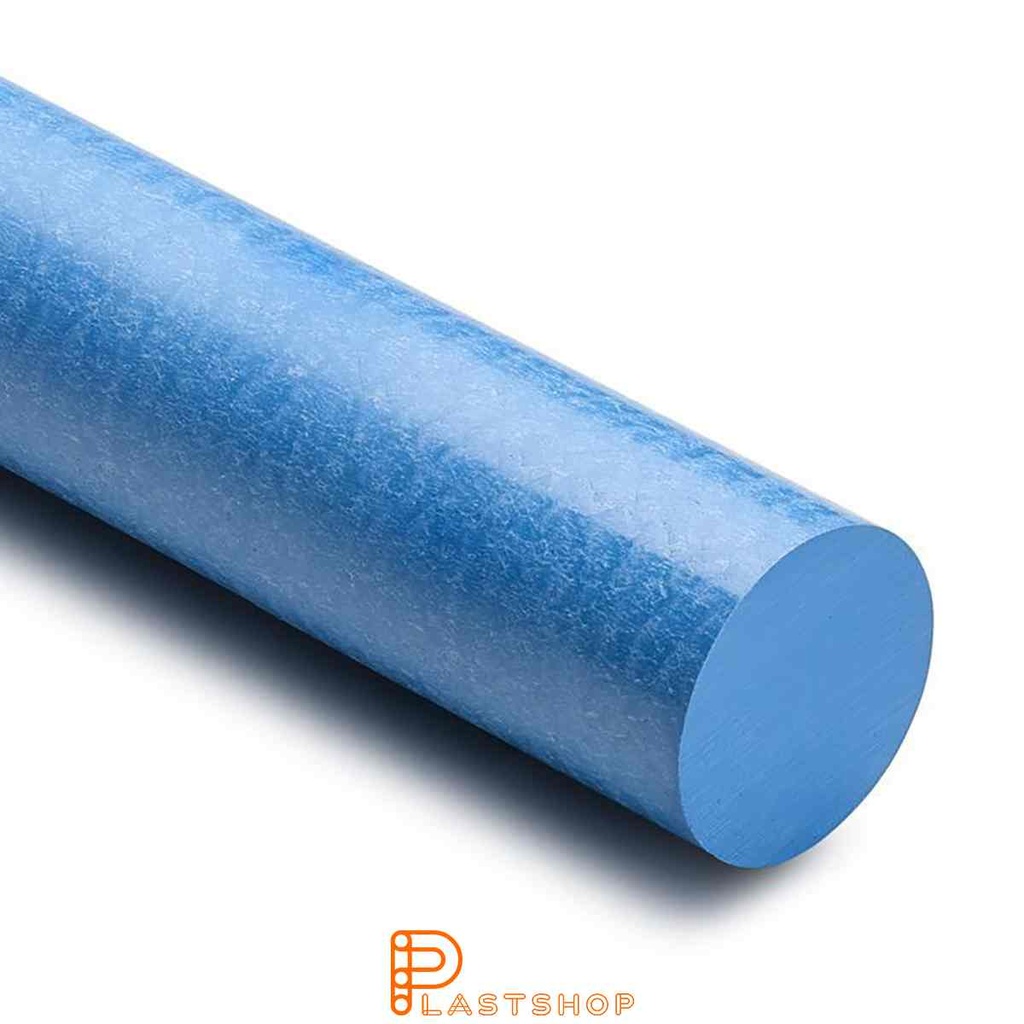

PEEK+PTFE 40x3000 mm blå
Excellent chemical resistance is one of the key properties of this material. It is resistant to most chemicals and solvents, and can withstand corrosive environments without being affected by acids, bases, or other chemicals. Additionally, it combines low friction and self-lubrication with high mechanical strength, making it ideal for applications where sliding and rotating motions occur. This material is also high-temperature resistant and can withstand high operating temperatures. It is therefore suitable for use in chemical plants, laboratories, and industries where contact with aggressive substances is common. If you need help selecting the right material for your application, please contact us.
Technical Specifications
Color
Blue
Length
3000 mm
Material
Produktens basmaterial
Outer Diameter
40 mm
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Flame Retardant
Uppfyller brandklassning V-0 eller bättre
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Temperature Resistant
Behåller mekaniska egenskaper vid höga temperaturer
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Low Friction
Låg friktionskoefficient, självsmörjande egenskaper
Self-Lubricating
Kräver ingen extern smörjning
PTFE
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyetereterketon (PEEK) |
|---|---|
| Klassificering | not_classified |
| Tillverkare | ARC Gruppen AB // PlastShop.se |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig högpresterande termoplast. Beige till brun/svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 340-345°C |
| Nedbrytningstemp. | >500 °C |
| Självantändning | >580°C |
| Löslighet | Olöslig i vatten och de flesta lösningsmedel |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium Chloride | — | |
| Amyl Alcohol | — | |
| Apple Juice | — | |
| Benzene | — | |
| Bleaching Solution | — | |
| Boric Acid | 100 | |
| Brake Fluid | — | |
| Butyl Acetate | — | |
| Calcium Chloride | — | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | — | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Citric Acid | 10 | |
| Cresol | — | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | — | |
| Diethylene Oxide | — | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | — | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | — | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | — | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | — | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | — | |
| Mercurochrome | — | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | — | |
| Mineral Oils (aromatic free) | — | |
| Nitric Acid | 10 | |
| Nitric Acid | 50 | |
| Nitrobenzene | — | |
| Oxalic Acid | — | |
| Ozone Gas | — | |
| Paraffine Oil | 100 | |
| Perchloroethylene | — | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | — | |
| Propyl Alcohol | — | |
| Pyridine | — | |
| Silicone Oil | — | |
| Sodium Carbonate (aqueous) | — | |
| Sodium Chloride (aqueous) | — | |
| Sodium Hydrogen Sulfite | — | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Hydroxide liquor | 60 | |
| Sodium Nitrate (aqueous) | — | |
| Sodium Thiosulfate | — | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | — | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5-10 | |
| Water | — | |
| Xylene | — |
