  3. PEEK+PTFE 36x3000 mm blue
EUR List Price €

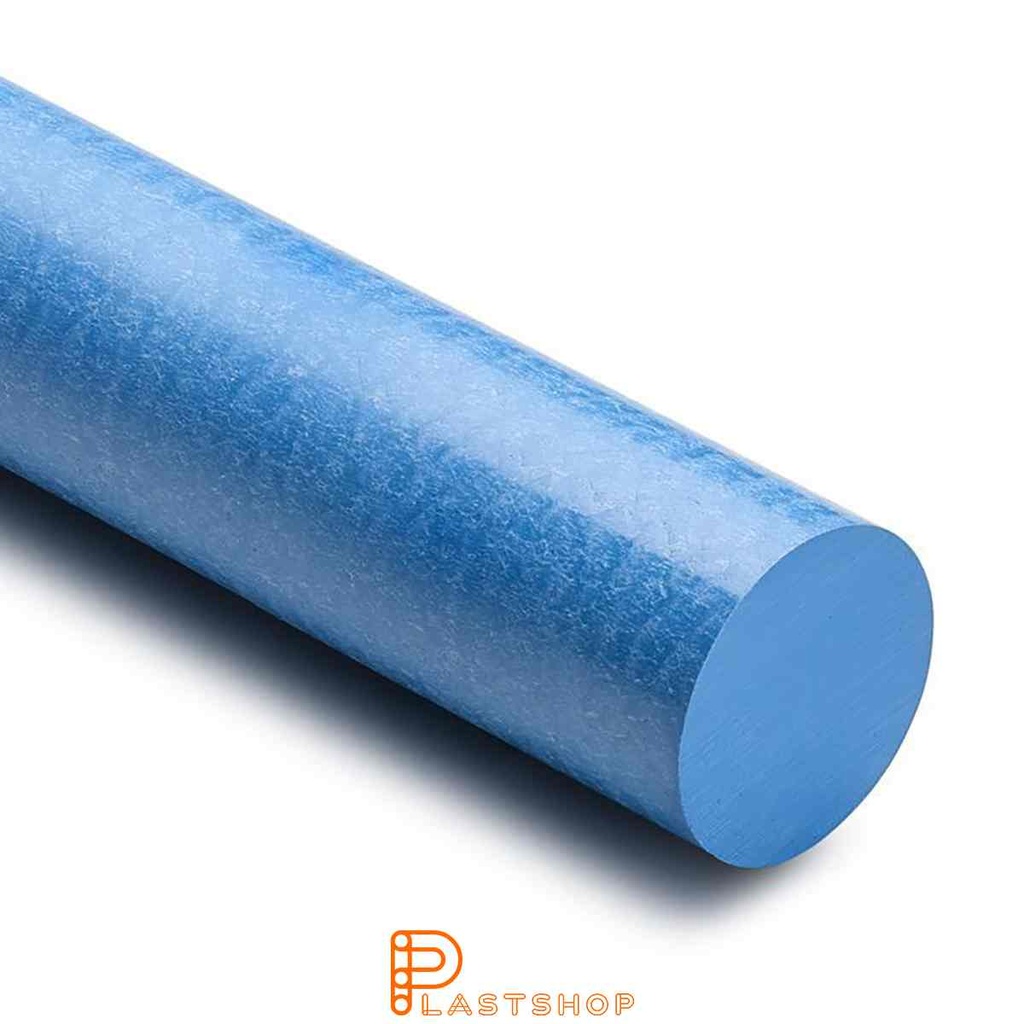

PEEK+PTFE 36x3000 mm blue

PEEK+PTFE 36x3000 mm blue

https://utv.plastshop.se/web/image/product.template/34109/image_1920?unique=8da09af
SKU:
P1501472
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PEEK round bar

Share

PEEK+PTFE 36x3000 mm blå Excellent chemical resistance is one of the key properties of this material. It is resistant to most chemicals and solvents, and can withstand corrosive environments without being affected by acids, bases, or other chemicals. Additionally, it combines low friction and self-lubrication with high mechanical strength, making it ideal for applications where sliding and rotating motions occur. This material is also high-temperature resistant and can withstand high operating temperatures. It is therefore suitable for use in chemical plants, laboratories, and industries where contact with aggressive substances is common. If you need help selecting the right material for your application, please contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.31 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.2 % ISO 62
Water Absorption to Saturation 0.45 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Modulus of elasticity (tensile) 4400 MPa ISO 527-2
Break Elongation 20 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 110 MPa ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 3.5 kJ/m² ISO 179/1eA
Hardness
Egenskap Värde Enhet Teststandard
Ball pressure hardness 230 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 340 °C ISO 3146
Maximal operating temperature (short-term) 310 °C
Maximum Operating Temperature 200 °C
Heat deflection temperature (HDT/A) 160 °C ISO 75-2
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.25 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.5 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 24 kV/mm IEC 60243-1
Volume Resistivity 100000000000000 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.6 - IEC 60250
Dielectric Constant (100 Hz) 3.2 - IEC 60250
Dielectric loss factor (1 MHz) 0.002 - IEC 60250
Dielectric loss factor (100 Hz) 0.001 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 150 V IEC 60112
