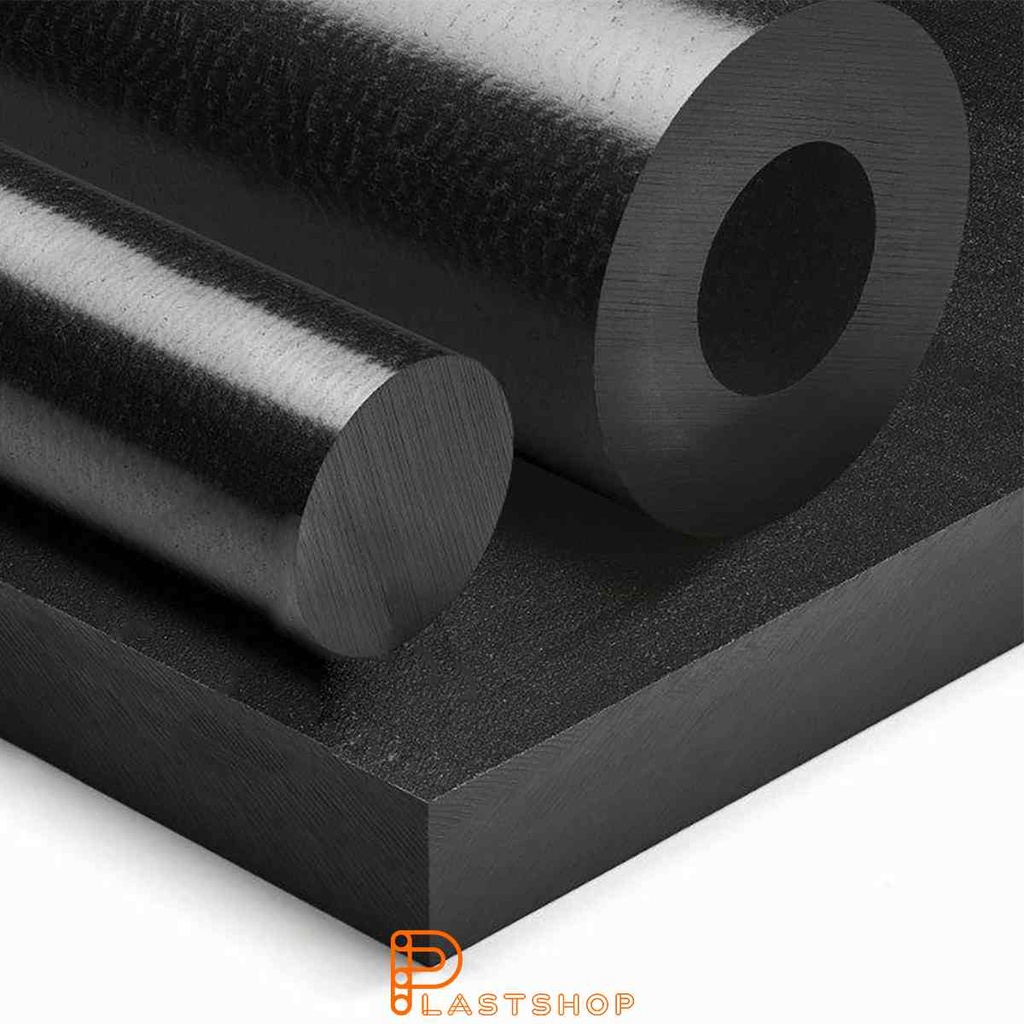

  3. PEEK Mod 3000x500x22 mm svart [P1501304] PEEK Mod 3000x500x22 mm svart
EUR List Price
PEEK Mod 3000x500x22 mm svart

PEEK Mod 3000x500x22 mm svart

P1501304

[P1501304] PEEK Mod 3000x500x22 mm svart

https://utv.plastshop.se/web/image/product.template/26315/image_1920?unique=f58e450
Material PEEK Format Plate Length 3000 mm Width 500 mm Thickness 22 mm Color Black
Begär offert
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

Egenskaper

Color Black
Length 3000 mm
Thickness 22 mm
Width 500 mm
Visa alla tekniska specifikationer
Material PEEK
Format Plate
Length 3000 mm
Width 500 mm
Thickness 22 mm
Color Black

This content will be shared across all product pages.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Om produkten

PEEK Mod 3000x500x22 mm svart This high-performance material boasts key characteristics such as lower friction and higher wear resistance. Its unique blend of PTFE, graphite, and carbon fiber provides high dimensional stability and enhanced thermal conductivity. The benefits of this material include lower friction, increased thermal conductivity, and higher wear resistance. It is suitable for applications where its specific properties are truly needed. Contact us if you want to learn more about how this material can be used in your specific application.

Tekniska specifikationer

Color
Black
Length
3000 mm
Material

Produktens basmaterial

Thickness
22 mm
Width
500 mm
Fördelar
Chemical Resistant

God motståndskraft mot kemikalier, syror och baser

Dimensionally Stable

Låg krypning och minimal formförändring

Easy to Machine

Lätt att bearbeta med konventionella verktyg

Flame Retardant

Uppfyller brandklassning V-0 eller bättre

High Stiffness

Hög elasticitetsmodul och formstabilitet

High Temperature Resistant

Behåller mekaniska egenskaper vid höga temperaturer

High Wear Resistance

Utmärkt motstånd mot nötning och slitage

Hydrolysis Resistant

Tål långvarig exponering för varmt vatten och ånga

Certifieringar
EU 10/2011 FDA REACH RoHS UL 94
Bearbetning
CNC Machining

Datorstödd bearbetning

Drilling

Håltagning med borr

Milling

Bearbetning med fräs

Sawing

Kapning med såg (band-, cirkelsåg)

Threading

Skärning av gängor (invändig/utvändig)

Turning

Bearbetning i svarv

Egenskap Värde Enhet Teststandard
Density & Weight
Density 1.31 g/cm³ ISO 1183
Moisture Absorption
Water absorption to saturation 0.2 % ISO 62
Water Absorption to Saturation 0.45 % ISO 62
Tensile Properties
Tensile Strength 112 MPa ISO527-2
Modulus of elasticity (tensile) 4400 MPa ISO 527-2
Breakdown Voltage 67 MPa ISO 527
Break Elongation 20 % ISO 527-2
Flexural Properties
Flexural Strength 110 MPa ISO 527-2
Impact Resistance
Notched impact strength (Charpy) 3.5 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 92 kJ/m² ISO179/1eU
Hardness
Hardness Shore D 90 ° Shore D DIN EN ISO 868
Ball pressure hardness 230 MPa ISO 2039-1
Temperature Limits
Melting point 340 °C ISO 3146
Maximal operating temperature (short-term) 291 °C UL746B
Maximum Operating Temperature 245 °C
Minimum temperature -35 °C
Heat deflection temperature (HDT/A) 160 °C ISO 75-2
Heat deflection temperature (HDT/B) 240 °C ISO 75
Vicat softening temperature (VST/B/50) 50 °C ISO 306
Thermal Conductivity
Thermal Conductivity 0.25 W/(m·K) DIN 52612
Thermal Expansion
Thermal Expansion Coefficient 0.5 10⁻⁴/K DIN 11359
Insulation Properties
Dielectric Strength 24 kV/mm IEC 60243-1
Volume Resistivity 10¹⁴ Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.6 - IEC 60250
Dielectric Constant (100 Hz) 3.2 - IEC 60250
Dielectric loss factor (1 MHz) 0.0 - IEC 60250
Dielectric loss factor (100 Hz) 0.0 - IEC 60250
Static spread
Surface Resistivity 10¹³ Ω IEC 60093
Comparative Tracking Index (CTI) 150 V IEC 60112
Fire Classification
Flammability Classification (UL 94) 0 UL 94
Ladda ner tekniskt datablad (PDF)
Identifiering
ProduktnamnPolyetereterketon (PEEK)
Klassificeringnot_classified
Fysikaliska egenskaper
UtseendeFast, ogenomskinlig högpresterande termoplast. Beige till brun/svart.
LuktLätt, produktspecifik
Smältpunkt340-345°C
Nedbrytningstemp.>500 °C
Självantändning>580°C
LöslighetOlöslig i vatten och de flesta lösningsmedel
Ladda ner komplett säkerhetsblad (PDF)
Beständig Delvis beständig Ej beständig
KemikalieKoncentrationBeständighet
1,4-Dioxane 100
2-Hydroxypropionic acid (lactic acid) 90
Acetic acid 100
Acetone 100
Ammonia -
Ammonium chloride -
Amyl alcohol -
Apple juice -
Benzene -
Boric acid 100
Brake fluid -
Butyl acetate -
Calcium chloride -
Carbon tetrachloride -
Chlorine (gas) 100
Chlorobenzene 100
Chloroform -
Citric acid 10
Cyclohexanone 100
Cyclohexene 100
Diesel -
Diethylene oxide -
Ethyl acetate 100
Ethyl alcohol (ethanol) 96
Ethylene chloride 100
Food oil -
Formaldehyde (aqueous) 40
Formic acid 10
Frost protection agent -
Fuel oil -
Fuel, aromatic free -
Glycerine 100
Glycol 100
Heptane 100
Hydrochloric acid 10
Hydrochloric acid (concentrated) -
Hydrofluoric acid 40
Hydrogen peroxide 10
Hydrogen sulfide (aqueous) -
Isopropyl alcohol 100
Linseed oil -
Mercurochrome -
Methyl alcohol (methanol) 100
Methyl ethyl ketone (MEK) 100
Methylene chloride 100
Milk -
Mineral oils (aromatic free) -
Nitric acid 50
Nitric acid 10
Nitrobenzene -
Oxalic acid -
Ozone (gas) -
Paraffin oil 100
Perchloroethylene -
Petroleum 100
Petroleum ether 100
Phenol (aqueous) 9
Phosphoric acid 50
Potassium hydroxide solution 50
Premium fuel -
Propyl alcohol -
Pyridine -
Silicone oil -
Sodium carbonate (aqueous) -
Sodium chloride (aqueous) -
Sodium hydrogen sulfite -
Sodium hydroxide solution (caustic soda) 60
Sodium hydroxide solution (caustic soda) 15
Sodium nitrate (aqueous) -
Sodium thiosulfate -
Sulphuric acid 96
Tetrahydrofuran (THF) 100
Toluene 100
Transformer oil -
Trichloroethylene 100
Vinegar (standard) 5-10
Water -
Xylene -
Ladda ner kemisk beständighet (PDF)

Specifications

Material PEEK
Format Plate
Length 3000 mm
Width 500 mm
Thickness 22 mm
Color Black
