P1500633

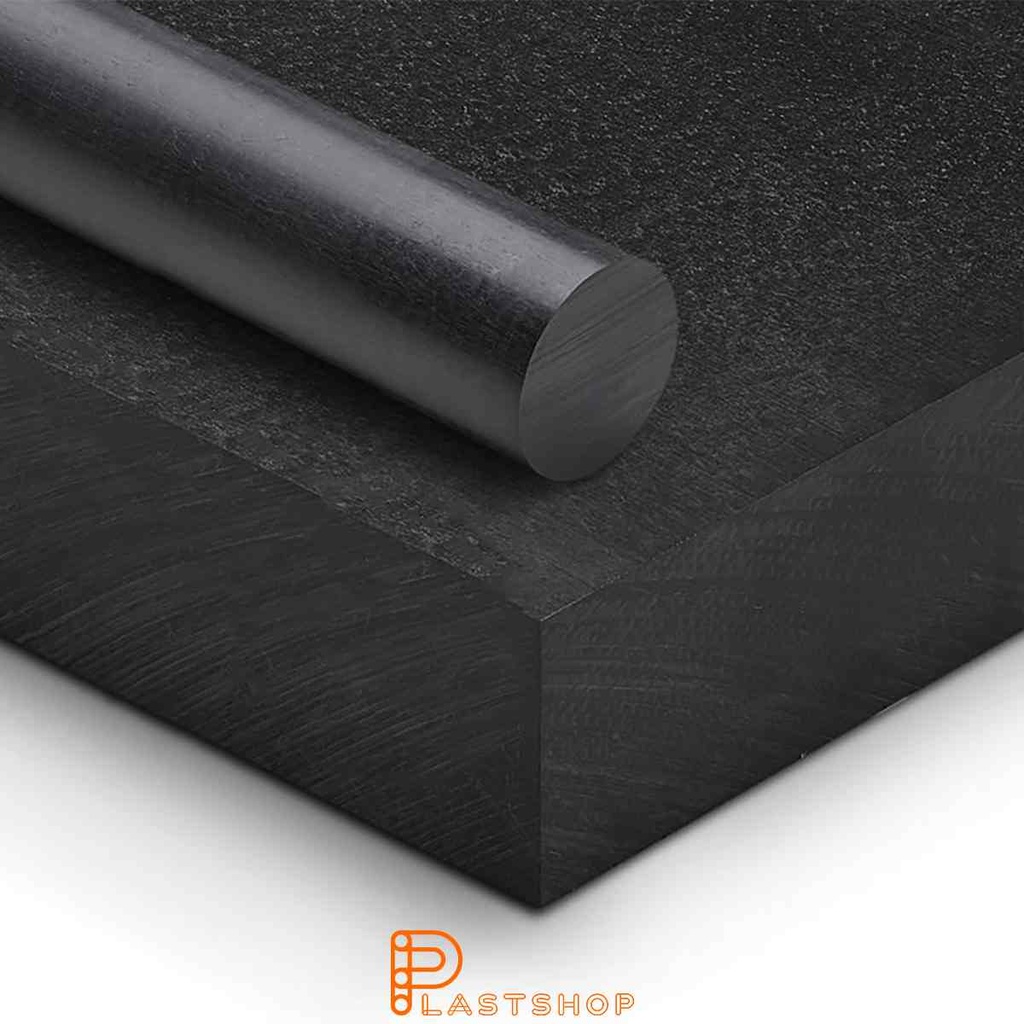

[P1500633] PEEK 3000x500x60 mm svart

Material PEEK Format Plate Length 3000 mm Width 500 mm Thickness 60 mm Color Black

Begär offert

Material
Format
Length
Width
Thickness
Color

This combination does not exist.

Visa tekniska specifikationer

Egenskaper

Color Black

Length 3000 mm

Thickness 60 mm

Width 500 mm

Visa alla tekniska specifikationer

Specifications

Material	PEEK
Format	Plate
Length	3000 mm
Width	500 mm
Thickness	60 mm
Color	Black

More Information

This content will be shared across all product pages.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Begär offert

Om produkten

PEEK 3000x500x60 mm svart Outstanding thermal stability is one of the key properties of this material. It can withstand extremely high temperatures, up to 300 degrees Celsius, and retains its mechanical properties even at high temperatures. This makes it suitable for use in environments where thermal stability is crucial. It also offers exceptional mechanical strength and stiffness, making it strong enough to withstand high loads and stresses. It is highly resistant to chemicals and corrosion. It is often used in demanding applications where high performance and reliability are required. Need help selecting the right material for your application? Contact us.

Tekniska specifikationer

Color

Black

Length

3000 mm

Material

Produktens basmaterial

Thickness

60 mm

Width

500 mm

Fördelar

Chemical Resistant

God motståndskraft mot kemikalier, syror och baser

Dimensionally Stable

Låg krypning och minimal formförändring

Easy to Machine

Lätt att bearbeta med konventionella verktyg

Flame Retardant

Uppfyller brandklassning V-0 eller bättre

High Stiffness

Hög elasticitetsmodul och formstabilitet

High Temperature Resistant

Behåller mekaniska egenskaper vid höga temperaturer

High Wear Resistance

Utmärkt motstånd mot nötning och slitage

Hydrolysis Resistant

Tål långvarig exponering för varmt vatten och ånga

Certifieringar

EU 10/2011 FDA REACH RoHS UL 94

Bearbetning

CNC Machining

Datorstödd bearbetning

Drilling

Håltagning med borr

Milling

Bearbetning med fräs

Sawing

Kapning med såg (band-, cirkelsåg)

Threading

Skärning av gängor (invändig/utvändig)

Turning

Bearbetning i svarv

Egenskap	Värde	Enhet	Teststandard
Density & Weight
Density	1.31	g/cm³	ISO 1183
Moisture Absorption
Water absorption to saturation	0.2	%	ISO 62
Water Absorption to Saturation	0.45	%	ISO 62
Tensile Properties
Tensile Strength	112	MPa	ISO527-2
Modulus of elasticity (tensile)	4400	MPa	ISO 527-2
Breakdown Voltage	67	MPa	ISO 527
Break Elongation	20	%	ISO 527-2
Flexural Properties
Flexural Strength	110	MPa	ISO 527-2
Impact Resistance
Notched impact strength (Charpy)	3.5	kJ/m²	ISO 179/1eA
Impact Resistance (Charpy)	92	kJ/m²	ISO179/1eU
Hardness
Hardness Shore D	90	° Shore D	DIN EN ISO 868
Ball pressure hardness	230	MPa	ISO 2039-1
Temperature Limits
Melting point	340	°C	ISO 3146
Maximal operating temperature (short-term)	291	°C	UL746B
Maximum Operating Temperature	245	°C
Minimum temperature	-35	°C
Heat deflection temperature (HDT/A)	160	°C	ISO 75-2
Heat deflection temperature (HDT/B)	240	°C	ISO 75
Vicat softening temperature (VST/B/50)	50	°C	ISO 306
Thermal Conductivity
Thermal Conductivity	0.25	W/(m·K)	DIN 52612
Thermal Expansion
Thermal Expansion Coefficient	0.5	10⁻⁴/K	DIN 11359
Insulation Properties
Dielectric Strength	24	kV/mm	IEC 60243-1
Volume Resistivity	10¹⁴	Ω·cm	IEC 60093
Dielectric Constant (1 MHz)	3.6	-	IEC 60250
Dielectric Constant (100 Hz)	3.2	-	IEC 60250
Dielectric loss factor (1 MHz)	0.0	-	IEC 60250
Dielectric loss factor (100 Hz)	0.0	-	IEC 60250
Static spread
Surface Resistivity	10¹³	Ω	IEC 60093
Comparative Tracking Index (CTI)	150	V	IEC 60112
Fire Classification
Flammability Classification (UL 94)	0		UL 94

Ladda ner tekniskt datablad (PDF)

Identifiering

Produktnamn	Polyetereterketon (PEEK)
Klassificering	not_classified

Fysikaliska egenskaper

Utseende	Fast, ogenomskinlig högpresterande termoplast. Beige till brun/svart.
Lukt	Lätt, produktspecifik
Smältpunkt	340-345°C
Nedbrytningstemp.	>500 °C
Självantändning	>580°C
Löslighet	Olöslig i vatten och de flesta lösningsmedel

Ladda ner komplett säkerhetsblad (PDF)

Beständig Delvis beständig Ej beständig

Kemikalie	Koncentration	Beständighet
1,4-Dioxane	100
2-Hydroxypropionic acid (lactic acid)	90
Acetic acid	100
Acetone	100
Ammonia	-
Ammonium chloride	-
Amyl alcohol	-
Apple juice	-
Benzene	-
Boric acid	100
Brake fluid	-
Butyl acetate	-
Calcium chloride	-
Carbon tetrachloride	-
Chlorine (gas)	100
Chlorobenzene	100
Chloroform	-
Citric acid	10
Cyclohexanone	100
Cyclohexene	100
Diesel	-
Diethylene oxide	-
Ethyl acetate	100
Ethyl alcohol (ethanol)	96
Ethylene chloride	100
Food oil	-
Formaldehyde (aqueous)	40
Formic acid	10
Frost protection agent	-
Fuel oil	-
Fuel, aromatic free	-
Glycerine	100
Glycol	100
Heptane	100
Hydrochloric acid	10
Hydrochloric acid (concentrated)	-
Hydrofluoric acid	40
Hydrogen peroxide	10
Hydrogen sulfide (aqueous)	-
Isopropyl alcohol	100
Linseed oil	-
Mercurochrome	-
Methyl alcohol (methanol)	100
Methyl ethyl ketone (MEK)	100
Methylene chloride	100
Milk	-
Mineral oils (aromatic free)	-
Nitric acid	50
Nitric acid	10
Nitrobenzene	-
Oxalic acid	-
Ozone (gas)	-
Paraffin oil	100
Perchloroethylene	-
Petroleum	100
Petroleum ether	100
Phenol (aqueous)	9
Phosphoric acid	50
Potassium hydroxide solution	50
Premium fuel	-
Propyl alcohol	-
Pyridine	-
Silicone oil	-
Sodium carbonate (aqueous)	-
Sodium chloride (aqueous)	-
Sodium hydrogen sulfite	-
Sodium hydroxide solution (caustic soda)	60
Sodium hydroxide solution (caustic soda)	15
Sodium nitrate (aqueous)	-
Sodium thiosulfate	-
Sulphuric acid	96
Tetrahydrofuran (THF)	100
Toluene	100
Transformer oil	-
Trichloroethylene	100
Vinegar (standard)	5-10
Water	-
Xylene	-
