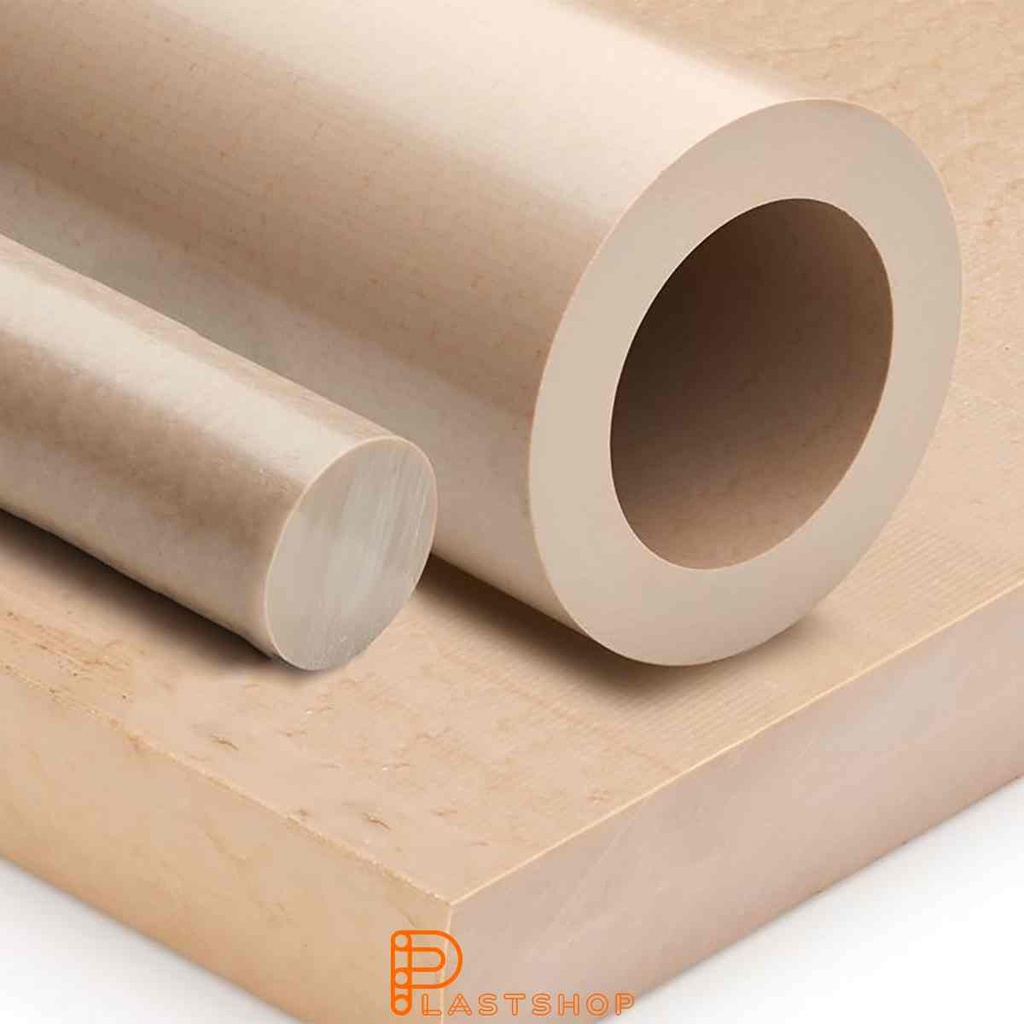

PEEK 2000x1000x10 mm beige
Outstanding thermal stability is one of the key properties of this material. It can withstand extremely high temperatures, up to 300 degrees Celsius, and retains its mechanical properties even at high temperatures. This makes it suitable for use in environments where thermal stability is crucial. It also offers exceptional mechanical strength and stiffness, making it strong enough to withstand high loads and stresses. It is highly resistant to chemicals and corrosion. It is often used in demanding applications where high performance and reliability are required. Need help selecting the right material for your application? Contact us.
Technical Specifications
Color
Beige
Length
2000 mm
Material
Produktens basmaterial
Thickness
10 mm
Width
1000 mm
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Flame Retardant
Uppfyller brandklassning V-0 eller bättre
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Temperature Resistant
Behåller mekaniska egenskaper vid höga temperaturer
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Hydrolysis Resistant
Tål långvarig exponering för varmt vatten och ånga
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyetereterketon (PEEK) |
|---|---|
| Klassificering | not_classified |
| Tillverkare | ARC Gruppen AB // PlastShop.se |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig högpresterande termoplast. Beige till brun/svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 340-345°C |
| Nedbrytningstemp. | >500 °C |
| Självantändning | >580°C |
| Löslighet | Olöslig i vatten och de flesta lösningsmedel |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium chloride | — | |
| Amyl alcohol | — | |
| Apple juice | — | |
| Benzene | — | |
| Boric acid | 100 | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Carbon tetrachloride | — | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Citric acid | 10 | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | — | |
| Diethylene oxide | — | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Food oil | — | |
| Formaldehyde (aqueous) | 40 | |
| Formic acid | 10 | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | — | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide (aqueous) | — | |
| Isopropyl alcohol | 100 | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Milk | — | |
| Mineral oils (aromatic free) | — | |
| Nitric acid | 50 | |
| Nitric acid | 10 | |
| Nitrobenzene | — | |
| Oxalic acid | — | |
| Ozone (gas) | — | |
| Paraffin oil | 100 | |
| Perchloroethylene | — | |
| Petroleum | 100 | |
| Petroleum ether | 100 | |
| Phenol (aqueous) | 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | — | |
| Propyl alcohol | — | |
| Pyridine | — | |
| Silicone oil | — | |
| Sodium carbonate (aqueous) | — | |
| Sodium chloride (aqueous) | — | |
| Sodium hydrogen sulfite | — | |
| Sodium hydroxide solution (caustic soda) | 60 | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate (aqueous) | — | |
| Sodium thiosulfate | — | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | — | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5-10 | |
| Water | — | |
| Xylene | — |
