  3. PE-500 3000x1250x60 mm blue
EUR List Price €

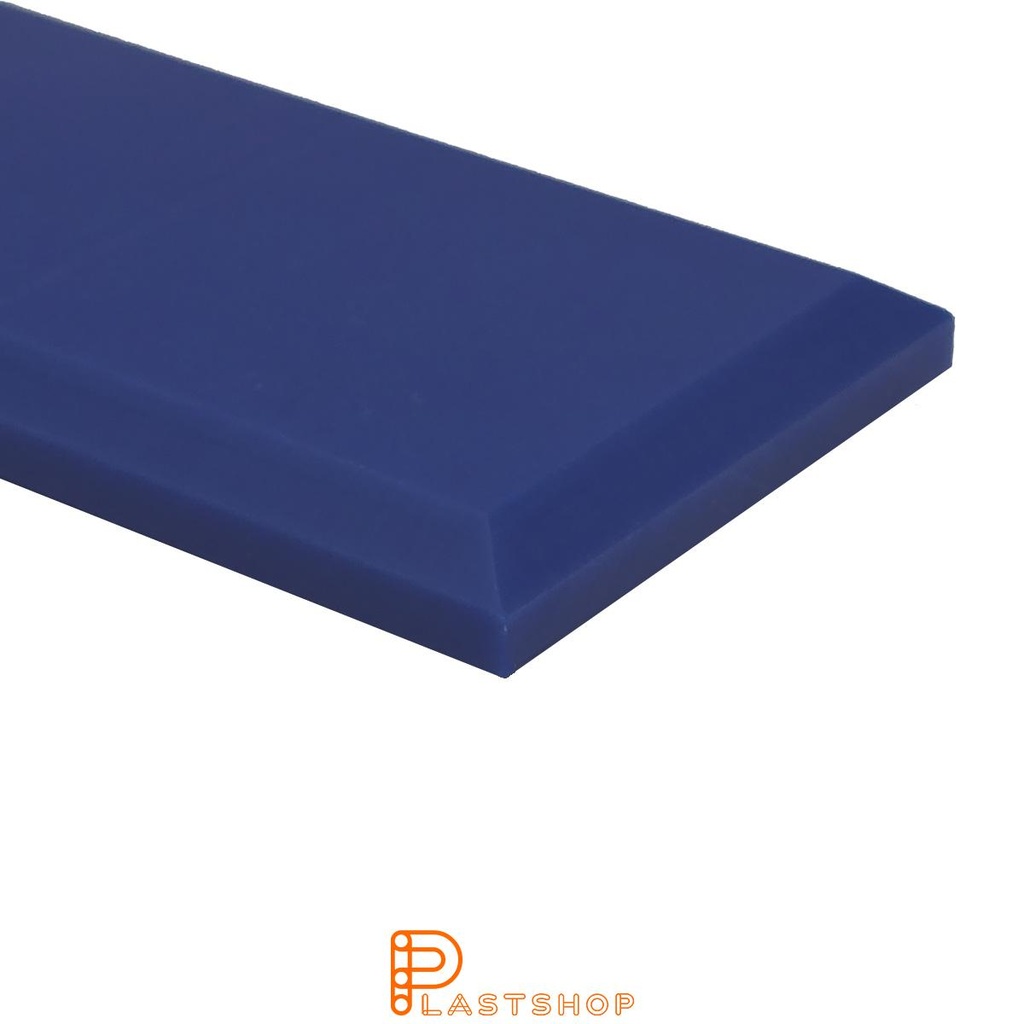

PE-500 3000x1250x60 mm blue

PE-500 3000x1250x60 mm blue

https://utv.plastshop.se/web/image/product.template/25857/image_1920?unique=e9ee6f8
SKU:
P1400393
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PE Sheet

Share

PE-500 3000x1250x60 mm blå High mechanical strength and impact resistance make HMWPE an excellent choice for demanding industrial applications. It also features good chemical resistance and low moisture absorption, making it suitable for use in environments where contact with chemicals is possible. HMWPE has excellent insulating properties, both thermal and electrical. It can be used as protective components and seals where impact and stress are common. If you need a material that can handle demanding conditions, HMWPE may be the right choice. Contact us if you want to know more about how HMWPE can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.2762 g/cm³ DIN EN ISO 1183-1
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.0071 % DIN EN ISO 62
Water Absorption to Saturation 0.005 % DIN EN ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 24.2 MPa DIN EN ISO 527
Modulus of elasticity (tensile) 1100 MPa DIN EN ISO 527
Break Elongation 138.75 % DIN EN ISO 527
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 2 kJ/m² DIN EN ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 65 ° Shore D DIN EN ISO 868
Ball pressure hardness 50 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 132.5 °C ISO 11357-3
Maximal operating temperature (short-term) 80 °C
Maximum Operating Temperature 54.2857 °C
Minimum temperature -100 °C
Vicat softening temperature (VST/B/50) 79 °C DIN EN ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.4 W/(m·K) DIN 52612-1
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 2.4325 10⁻⁴/K DIN 53752
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 40 kV/mm IEC 60243
Volume Resistivity 1014 Ω DIN EN 62631-3-1
Dielectric Constant (1 MHz) 2.3 - IEC 60250
Dielectric loss factor (1 MHz) 0.0002 - IEC 60250
Dielectric loss factor (100 Hz) 0.0002 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 142872152.8571 Ω DIN EN 62631-3-2
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Egenskap Värde Enhet Teststandard
Flammability Classification (UL 94) 3 UL 94
