  3. PA6 C 100/60x3000 mm natural
EUR List Price €

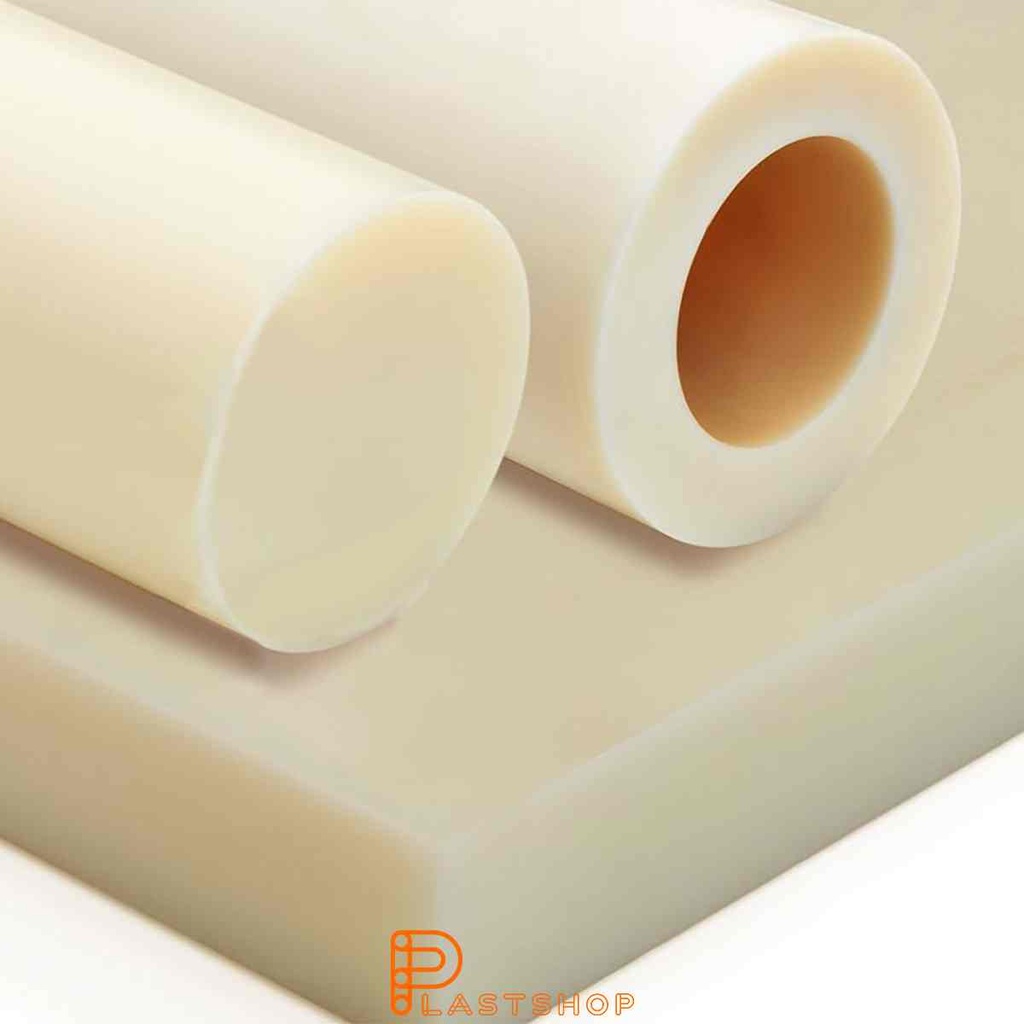

PA6 C 100/60x3000 mm natural

PA6 C 100/60x3000 mm natural

https://utv.plastshop.se/web/image/product.template/24080/image_1920?unique=58ada08
SKU:
P1202003
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Inner diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA pipe

Share

PA6 C 100/60x3000 mm natur High mechanical strength and wear resistance make PA6 an ideal material for demanding applications. It is also resistant to chemicals and withstands high temperatures. PA6 is easy to process and can be formed into various shapes and sizes. The benefits of PA6 include: * High mechanical strength * Excellent wear resistance * Chemical resistance * Heat resistance PA6 is often used in the automotive industry, electronics industry, and sports equipment. If you need help selecting the right material for your application, contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.134 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.3 % ISO 62
Water Absorption to Saturation 6.5 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 75 MPa ISO 527
Modulus of elasticity (tensile) 3500 MPa ISO 527-2
Break Elongation 25 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 85 MPa ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 3.5 kJ/m² ISO 179/1eA
Hardness
Egenskap Värde Enhet Teststandard
Ball pressure hardness 148.3333 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 220 °C ISO 3146
Maximal operating temperature (short-term) 170 °C
Maximum Operating Temperature 105 °C
Minimum temperature -30 °C
Heat deflection temperature (HDT/A) 80 °C ISO 75-2
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.29 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.8 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 25 kV/mm IEC 60243-1
Volume Resistivity 100000000000000 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.2 - IEC 60250
Dielectric Constant (100 Hz) 3.6 - IEC 60250
Dielectric loss factor (1 MHz) 0.016 - IEC 60250
Dielectric loss factor (100 Hz) 0.012 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
