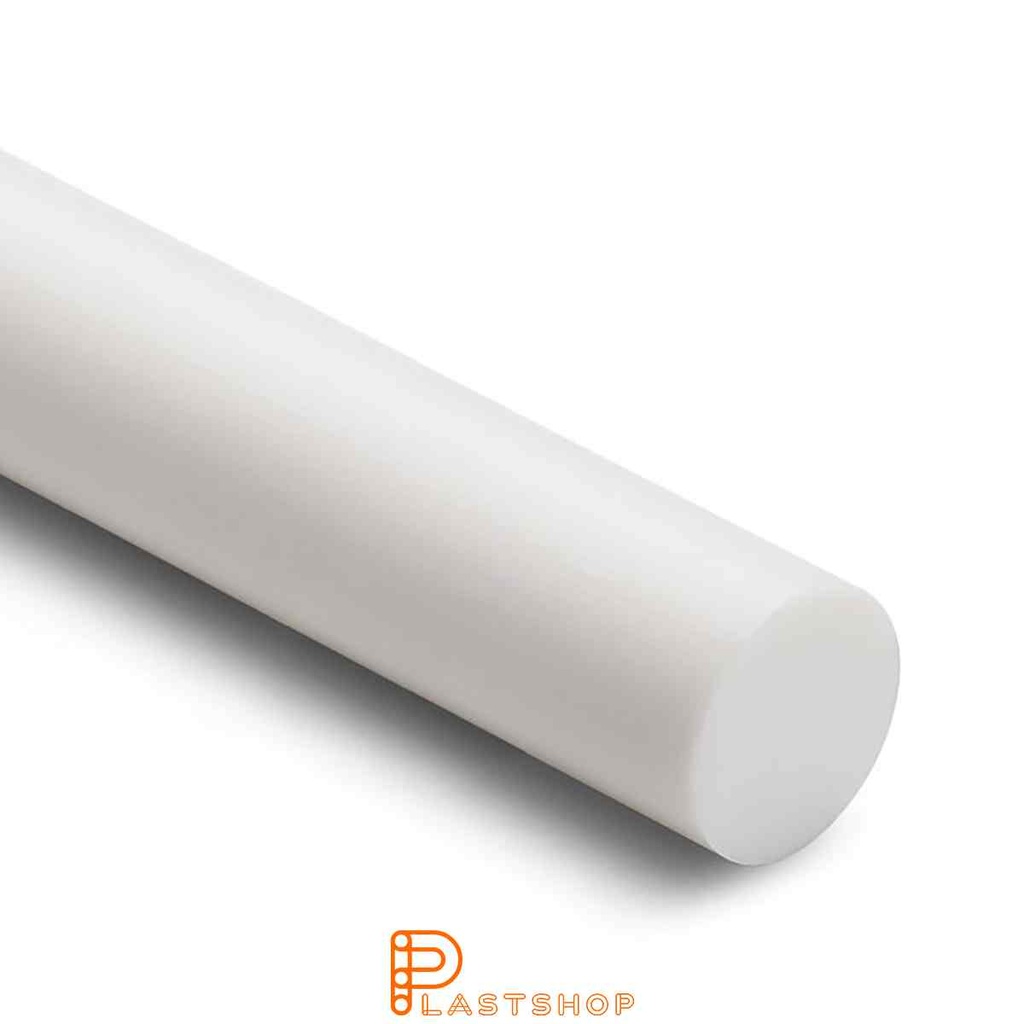

PTFE 150x2000 mm natur
This material boasts exceptional chemical resistance, making it highly resistant to chemicals and solvents, including acids, bases, and various corrosive substances. This makes it an excellent choice for applications that require contact with aggressive substances.
It also exhibits extremely low friction, rendering it a suitable option for applications that demand smooth sliding and minimal wear.
It can withstand extremely high temperatures without compromising its mechanical properties.
This material is often used in applications that require thermal stability and insulation at high temperatures.
If you need help selecting the right material for your application, please contact us.
Technical Specifications
Color
Natural
Length
2000 mm
Material
Produktens basmaterial
Outer Diameter
150 mm
| Property | Value | Unit | Test standard |
|---|---|---|---|
| Density & Weight | |||
| Density | 2.1 | g/cm³ | ASTM D1457 |
| Tensile Properties | |||
| Tensile Strength | 22 | MPa | ASTM D4894 |
| Modulus of elasticity (tensile) | 750 | MPa | ISO 527 |
| Breakdown Voltage | 18 | MPa | ASTM D1457 |
| Break Elongation | 300 | % | ASTM D1457 |
| Flexural Properties | |||
| Flexural Strength | 6 | MPa | ISO 178 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 16 | kJ/m² | ISO 179 |
| Hardness | |||
| Hardness Shore D | 58.5 | ° Shore D | ASTM D1706 |
| Ball pressure hardness | 45 | MPa | ISO 2039 |
| Temperature Limits | |||
| Maximal operating temperature (short-term) | 260 | °C | |
| Maximum Operating Temperature | 260 | °C | |
| Minimum temperature | -200 | °C | |
| Insulation Properties | |||
| Volume Resistivity | 10⁴ | Ω·cm | ASTM D257 |
Identification
| Product name | Polytetrafluoreten (PTFE) / Teflon |
|---|---|
| Classification | not_classified |
| Supplier | ARC Gruppen AB // PlastShop.se |
| Chemical characterization | Polytetrafluoreten (PTFE), CAS 9002-84-0 |
| Physical/chemical hazards | Brandfarlig.. Vid överhettning (>300°C) kan ångor orsaka influensaliknande symtom (polymerångfeber). |
|---|---|
| Health hazards | Brandfarlig.. Vid överhettning (>300°C) kan ångor orsaka influensaliknande symtom (polymerångfeber). |
| Environmental hazards | Materialet är inte skadligt för miljön, men är inte biologiskt nedbrytbart. |
Physical properties
| Fysisk form | Fast, ogenomskinlig plast. Vit. |
|---|---|
| Färg | Fast, ogenomskinlig plast. Vit. |
| Odour | Lätt, produktspecifik |
| Melting point | 327°C |
|---|---|
| Auto-ignition | >530°C |
| Decomposition temp. | >400 °C |
| Solubility | Olöslig i alla kända lösningsmedel |
Handling and storage
| Handling | Vid bearbetning av halvfabrikatet bör spån sugas bort för att undvika halkskador. |
|---|---|
| Storage | Förvara inert produkt torrt och svalt. Håll lager- och arbetsutrymmen välventilerade. Håll borta från öppen låga, värmekälla eller antändning. På grund av risken för kollaps, stapla inte mer än två pallar ovanpå varandra. Pallar ska inte staplas ovanpå varandra längs gångar. |
Personal protection
| Gloves | Skyddshandskar vid kontakt med varmt material. |
|---|---|
| Eyes | Skyddsglasögon eller visir vid bearbetning. |
| Respiratory | Adekvat ventilering vid arbetsplatsen krävs. |
Stability and reactivity
| Förhållanden | Temperaturer över smältpunkten. |
|---|---|
| Materials to avoid | Starka oxidanter. |
| Decomposition products | Fluorväte (HF), perfluorisobuten (PFIB), koldioxid. |
Transport information
Inte klassificerad som farligt gods.
Legal specifications
Produkten kräver ingen varningsetikett i enlighet med EU-direktiv.
Resistant
Partially resistant
Not resistant
| Chemical | Concentration | Resist. |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium Chloride | — | |
| Amyl Alcohol | — | |
| Apple Juice | — | |
| Benzene | — | |
| Bleaching Solution | — | |
| Boric Acid | 100 | |
| Brake Fluid | — | |
| Butyl Acetate | — | |
| Calcium Chloride | — | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | — | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Citric Acid | 10 | |
| Cresol | — | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | — | |
| Diethylene Oxide | — | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | — | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | — | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | — | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | — | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | — | |
| Mercurochrome | — | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | — | |
| Mineral Oils (aromatic free) | — | |
| Nitric Acid | 10 | |
| Nitric Acid (50%) | 50 | |
| Nitrobenzene | — | |
| Oxalic Acid | — | |
| Ozone Gas | ≤ 0.5 ppm | |
| Paraffine Oil | 100 | |
| Perchloroethylene | — | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | — | |
| Propyl Alcohol | — | |
| Pyridine | — | |
| Silicone Oil | — | |
| Sodium Carbonate (aqueous) | — | |
| Sodium Chloride (aqueous) | — | |
| Sodium Hydrogen Sulfite | — | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Hydroxide liquor (60) | 60 | |
| Sodium Nitrate (aqueous) | — | |
| Sodium Thiosulfate | — | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | — | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | — | |
| Xylene | — |
