  3. PMMA E 3050x2050x3 mm opaque white 3%
EUR List Price €

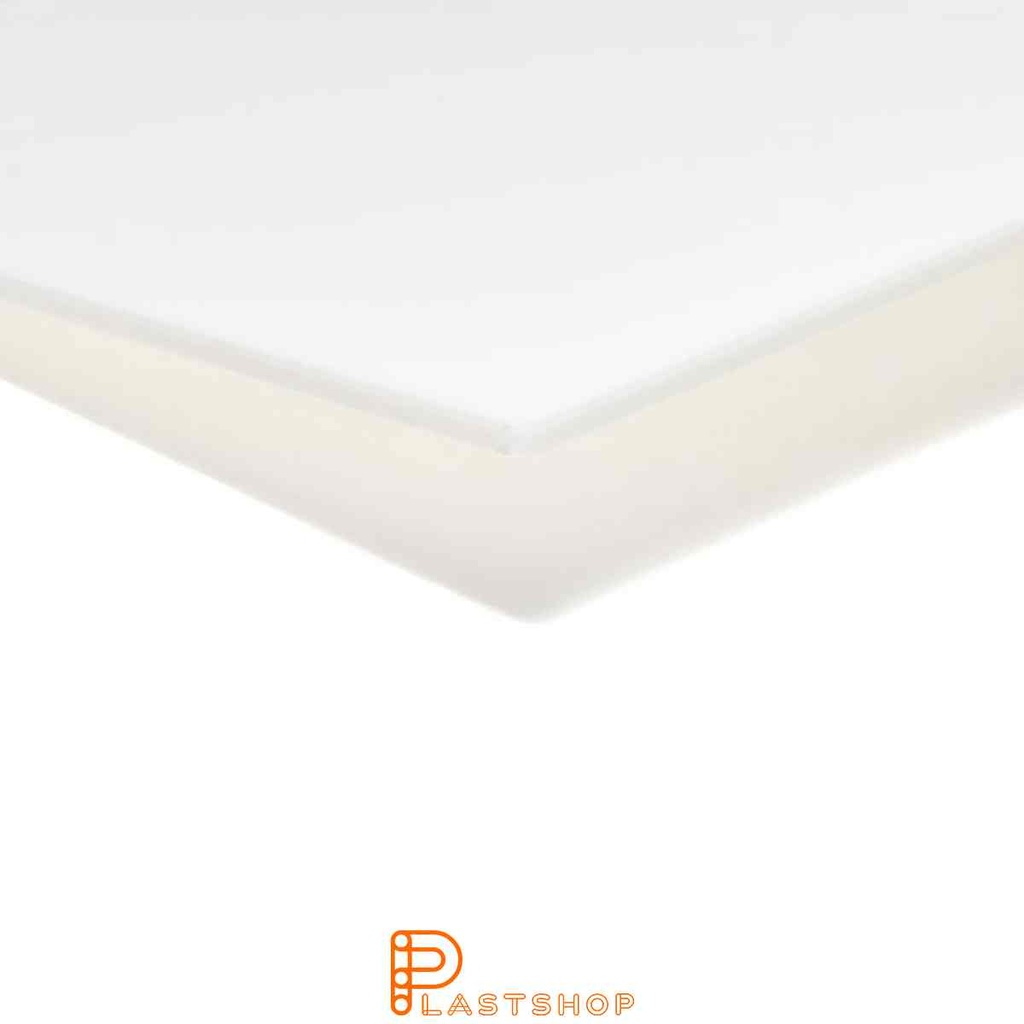

PMMA E 3050x2050x3 mm opaque white 3%

PMMA E 3050x2050x3 mm opaque white 3%

https://utv.plastshop.se/web/image/product.template/27684/image_1920?unique=6b1cdf3
SKU:
P1200690
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PMMA plate

Share

PMMA E 3050x2050x3 mm opalvit 3% Acrylic, also known as PMMA, is characterized by its high optical clarity and excellent light transmission properties. It is a popular choice for applications where aesthetics, transparency, and durability are key factors. PMMA is impact resistant, UV stable, and resistant to chemicals, making it suitable for outdoor use. It can be processed and formed in a variety of ways, allowing for easy adaptation to specific needs and design requirements. PMMA is often used in applications such as signs, display cases, and lighting fixtures. Do you have questions about the material? Contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.19 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.1 % ISO 62
Water Absorption to Saturation 2.1 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 72 MPa ISO 527
Modulus of elasticity (tensile) 3300 MPa ISO 527-2
Breakdown Voltage 70 MPa ISO 527-2
Break Elongation 5 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 75 MPa ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 1.6 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 15 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 15 ° Shore D
Rockwell hardness 100 M-scale ISO 2039-2
Ball pressure hardness 175 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 160 °C ISO 3146
Maximal operating temperature (short-term) 107.5 °C UL746B
Maximum Operating Temperature 75 °C
Minimum temperature -40 °C
Heat deflection temperature (HDT/A) 95 °C ISO 75
Heat deflection temperature (HDT/B) 100 °C ISO 75
Vicat softening temperature (VST/B/50) 103 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.19 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.0007 10⁻⁴/K DIN 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 30 kV/mm IEC 60243-1
Volume Resistivity 101500 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 1 - IEC 60250
Dielectric Constant (100 Hz) 2.7 - DIN 53483-2
Dielectric loss factor (1 MHz) 0.03 - IEC 60250
Dielectric loss factor (100 Hz) 0.06 - DIN 53483-2
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 1013 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie Betyg Koncentration
Acetic Acid D 100%%
Acetone D 100%%
Ammonia A conc.%
Amyl Alcohol D
Apple Juice A
Benzene D
Butyl Acetate D
Calcium Chloride A
Carbon Disulfide D 100%%
Carbon Tetrachloride D
Chlorine gas B 100%%
Chloroform D
Citric Acid A 10%%
Cresol D
Cyclohexanone D 100%%
Cyclohexene D 100%%
Diesel Fuel A
Diethylene Oxide D
Ethyl Acetate D 100%%
Ethyl Alcohol A 96%%
Ethylene Chloride D 100%%
Formaldehyde aqueous A 40%%
Formic Acid D 10%%
Fuel aromatic free A
Glycerin A 100%%
Glycol A 100%%
Heating Oil A
Heptane A 100%%
Hydrochloric Acid A 10%%
Hydrochloric Acid (concentrated) A conc.%
Hydrofluoric Acid D 40%%
Hydrogen Peroxide A 10%%
Hydrogen Sulfide aqueous solution A
Isopropyl Alcohol A 100%%
Linseed Oil A
Mercurochrome D
Methyl Alcohol D 100%%
Methyl Ethyl Ketone (MEK) D 100%%
Methylene Chloride D 100%%
Milk A
Mineral Oils aromatic free A
Nitric Acid A 10%%
Nitric Acid (50%) D 50%%
Nitrobenzene D
Oxalic Acid A
Ozone Gas A ≤ 0.5 ppm%
Paraffine Oil A 100%%
Perchloroethylene B
Petroleum B 100%%
Petroleum Ether A 100%%
