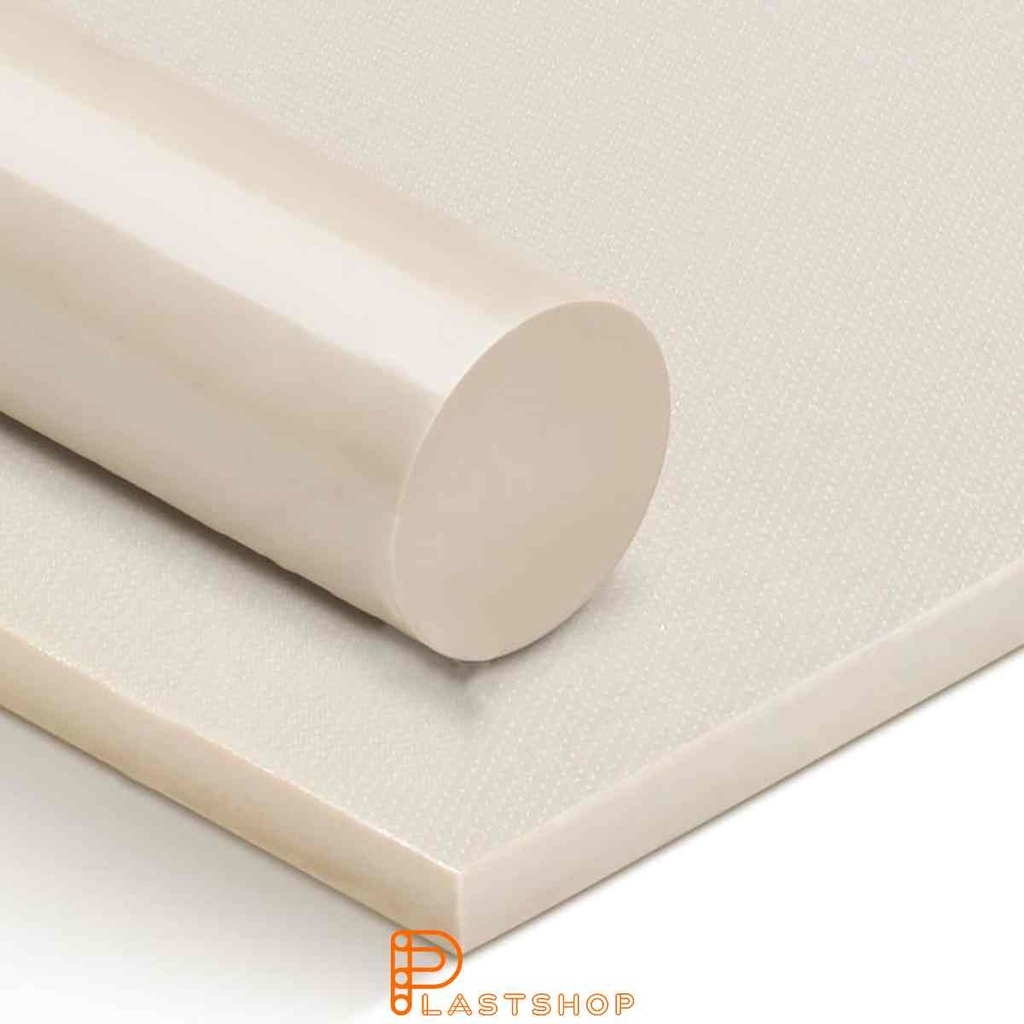

PPS 50x1000 mm natur
P1010769[P1010769] PPS 50x1000 mm natur
Material
PPS
Format
Round bar
Length
1000 mm
Outer diameter
50 mm
Color
Natural
| Material | PPS |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 50 mm |
| Color | Natural |
This content will be shared across all product pages.
Om produkten
PPS 50x1000 mm natur
PPS is renowned for its exceptional chemical resistance and mechanical strength. It is a popular choice in demanding industries where a combination of durability, heat resistance, and corrosion resistance is required. PPS has a melting point of approximately 170-180 °C and can be continuously used at temperatures up to 150 °C. This makes it suitable for applications that require thermal stability and resistance to high temperatures. PPS is often used in applications where chemical resistance and thermal stability are crucial, such as in chemical process technology and the manufacture of machine parts. Contact us if you want to know more about how PPS can be used in your specific application.
Tekniska specifikationer
Color
Natural
Length
1000 mm
Material
Produktens basmaterial
Outer Diameter
50 mm
Fördelar
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Flame Retardant
Uppfyller brandklassning V-0 eller bättre
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Temperature Resistant
Behåller mekaniska egenskaper vid höga temperaturer
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Certifieringar
REACH
RoHS
UL 94
Bearbetning
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Turning
Bearbetning i svarv
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.65 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.02 | % | ISO 62 |
| Water Absorption to Saturation | 0.02 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 83 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 7630 | MPa | ISO 527 |
| Breakdown Voltage | 136.5 | MPa | ISO 527 |
| Break Elongation | 4 | % | ISO 527 |
| Flexural Properties | |||
| Flexural Strength | 144 | MPa | ISO 178 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 5 | kJ/m² | DIN EN ISO 179 |
| Impact Resistance (Charpy) | 27 | kJ/m² | ISO 179 |
| Hardness | |||
| Hardness Shore D | 90 | ° Shore D | ISO 868 |
| Ball pressure hardness | 343 | MPa | ISO 2039 |
| Temperature Limits | |||
| Melting point | 280 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 230 | °C | UL746B |
| Maximum Operating Temperature | 162 | °C | |
| Minimum temperature | -13 | °C | |
| Heat deflection temperature (HDT/A) | 260 | °C | ISO 75 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.25 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.3 | 10⁻⁴/K | DIN 11359 |
| Insulation Properties | |||
| Dielectric Strength | 28 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹⁴ | Ω·cm | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 3.6 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹⁴ | Ω | DIN EN 62631-3-2 |
| Comparative Tracking Index (CTI) | 125 | V | IEC 60112 |
Identifiering
| Produktnamn | Polypropylen (PP) |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig termoplast. Vit till naturvit. |
|---|---|
| Lukt | Luktfri |
| Smältpunkt | 160-170°C |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 390°C |
| Löslighet | Olöslig i vatten |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| Acetone | 100 | |
| Ammonia | - | |
| Ammonium chloride | - | |
| Benzene | - | |
| Brake fluid | - | |
| Butyl acetate | - | |
| Calcium chloride | - | |
| Carbon tetrachloride | - | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Diesel | - | |
| Diethylene oxide | - | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Frost protection agent | - | |
| Fuel, aromatic free | - | |
| Glycerine | 100 | |
| Hydrochloric acid (10%) | 10 | |
| Hydrochloric acid (concentrated) | - | |
| Isopropyl alcohol | 100 | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Mineral oils (aromatic free) | - | |
| Nitric acid (10%) | 10 | |
| Nitric acid (50%) | 50 | |
| Perchloroethylene | - | |
| Phenol, aqueous | 9 | |
| Phosphoric acid | 50 | |
| Premium fuel | - | |
| Sodium chloride, aqueous | - | |
| Sodium hydroxide solution (15%) | 15 | |
| Sodium hydroxide solution (60%) | 60 | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | - | |
| Trichloroethylene | 100 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PPS |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 50 mm |
| Color | Natural |
