  3. PPS 25x1000 mm natural
EUR List Price €

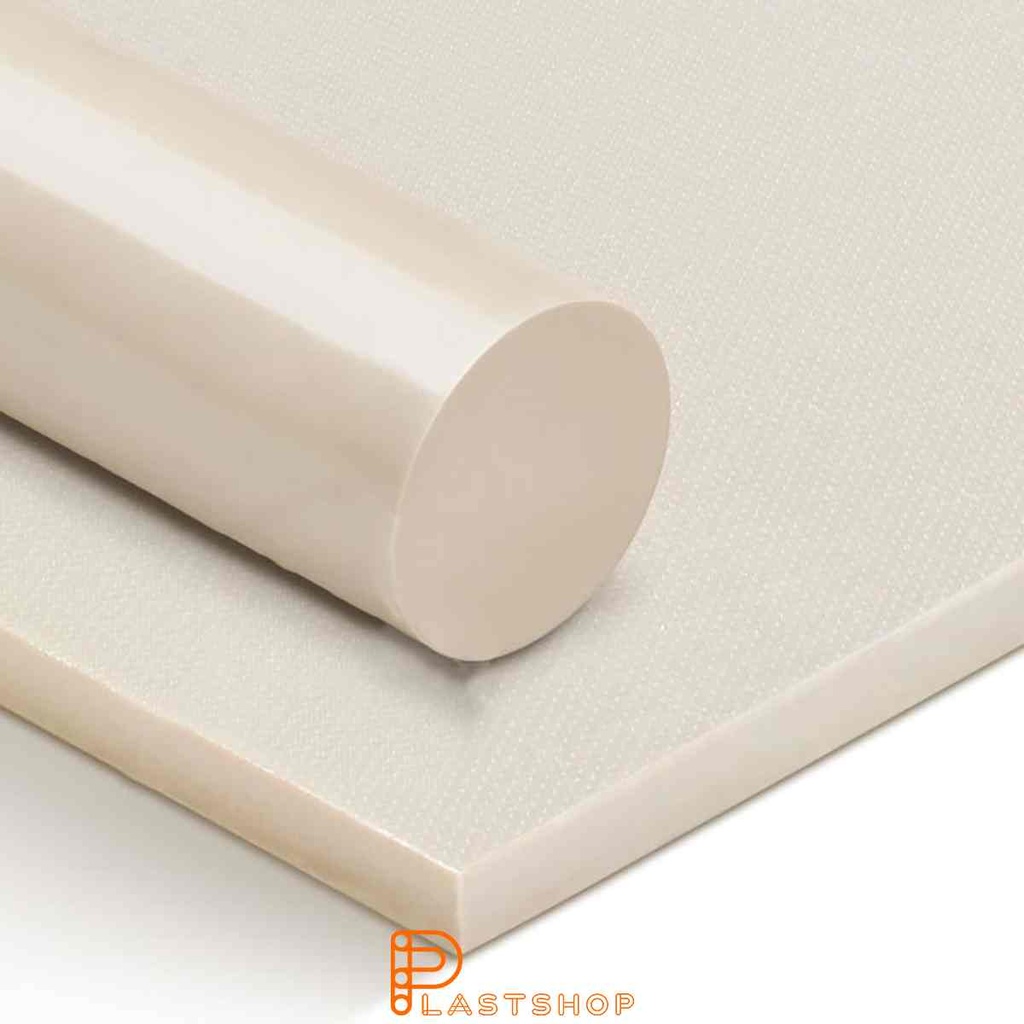

PPS 25x1000 mm natural

PPS 25x1000 mm natural

https://utv.plastshop.se/web/image/product.template/36832/image_1920?unique=5679ba1
SKU:
P1010764
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PPS Round Bar

Share

PPS 25x1000 mm natur PPS is renowned for its exceptional chemical resistance and mechanical strength. It is a popular choice in demanding industries where a combination of durability, heat resistance, and corrosion resistance is required. PPS has a melting point of approximately 170-180 °C and can be continuously used at temperatures up to 150 °C. This makes it suitable for applications that require thermal stability and resistance to high temperatures. PPS is often used in applications where chemical resistance and thermal stability are crucial, such as in chemical process technology and the manufacture of machine parts. Contact us if you want to know more about how PPS can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.65 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.02 % ISO 62
Water Absorption to Saturation 0.02 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 83 MPa ISO 527
Modulus of elasticity (tensile) 7630 MPa ISO 527
Breakdown Voltage 136.5 MPa ISO 527
Break Elongation 4 % ISO 527
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 144 MPa ISO 178
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 5 kJ/m² DIN EN ISO 179
Impact Resistance (Charpy) 27 kJ/m² ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 90 ° Shore D ISO 868
Ball pressure hardness 343 MPa ISO 2039
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 280 °C ISO 3146
Maximal operating temperature (short-term) 230 °C UL746B
Maximum Operating Temperature 161.6667 °C
Minimum temperature -13.3333 °C
Heat deflection temperature (HDT/A) 260 °C ISO 75
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.25 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.3 10⁻⁴/K DIN 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 28 kV/mm IEC 60243-1
Volume Resistivity 1014 Ω·cm DIN EN 62631-3-1
Dielectric Constant (1 MHz) 3.6 - IEC 60250
Dielectric loss factor (1 MHz) 0.004 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 1014.3333 Ω DIN EN 62631-3-2
Comparative Tracking Index (CTI) 125 V IEC 60112

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie Betyg Koncentration
1,4-Dioxane A 100%
Acetone A 100%
Ammonia A
Ammonium Chloride A
Benzene A
Brake Fluid A
Butyl Acetate A
Calcium Chloride A
Carbon Tetrachloride A
Chlorobenzene A 100%
Chloroform A
Diesel Fuel A
Diethylene Oxide A
Ethyl Acetate A 100%
Ethyl Alcohol A 96%
Frost Protection Agent A
Fuel, aromatic free A
Glycerin A 100%
Hydrochloric Acid (10%) A 10%
Hydrochloric Acid (concentrated) D
Isopropyl Alcohol A 100%
Methyl Alcohol A 100%
Methyl Ethyl Ketone (MEK) A 100%
Methylene Chloride B 100%
Mineral Oils (aromatic free) A
Nitric Acid (10%) A 10%
Nitric Acid (50%) D 50%
Perchloroethylene A
Phenol, aqueous A 9%
Phosphoric Acid A 50%
Premium Fuel A
Sodium Chloride, aqueous A
Sodium Hydroxide liquor (15%) A 15%
Sodium Hydroxide liquor (60%) B 60%
Sulfuric Acid A 96%
Tetrahydrofuran, THF A 100%
Toluene A 100%
Transformer Oil A
Trichloroethylene A 100%
Water A
Xylene A
