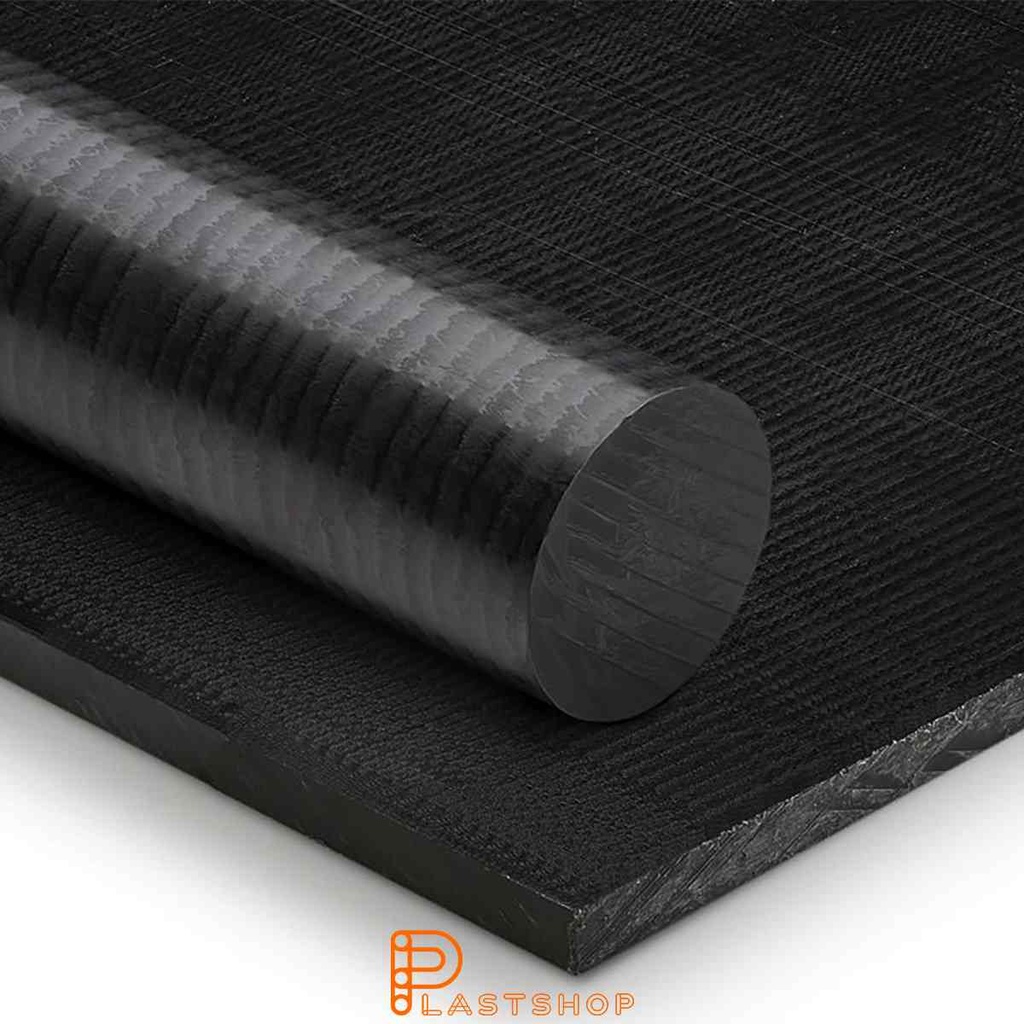

POM H 1000x500x30 mm svart
P1008705[P1008705] POM H 1000x500x30 mm svart
Material
POM
Format
Plate
Length
1000 mm
Width
500 mm
Thickness
30 mm
Color
Black
Egenskaper
Color
Black
Length
1000 mm
Thickness
30 mm
Width
500 mm
| Material | POM |
| Format | Plate |
| Length | 1000 mm |
| Width | 500 mm |
| Thickness | 30 mm |
| Color | Black |
This content will be shared across all product pages.
Om produkten
POM H 1000x500x30 mm svart
This material offers excellent mechanical strength and stiffness, making it an ideal choice for applications that require resistance to stress and strain. It has high tensile strength and flexural strength, rendering it suitable for use in parts and components that need to maintain shape and integrity over time. Dimensional stability is another key property of this material. It is often used in applications where high strength and stiffness are crucial. If you need a material that can handle tough conditions and still maintain its shape, this may be the right choice. Contact us if you want to know more about how this material can be used in your specific application.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 3 | g/cm³ | DIN EN ISO 1183-1 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.1 | % | DIN EN ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 53 | MPa | DIN EN ISO 527-2 |
| Modulus of elasticity (tensile) | 3000 | MPa | DIN EN ISO 527-2 |
| Break Elongation | 8 | % | DIN EN ISO 527-2 |
| Flexural Properties | |||
| Flexural Strength | 53 | MPa | DIN EN ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 25 | kJ/m² | DIN EN ISO 179-1 |
| Impact Resistance (Charpy) | 2 | kJ/m² | DIN EN ISO 179-1 |
| Hardness | |||
| Hardness Shore D | 81 | ° Shore D | DIN EN ISO 868 |
| Temperature Limits | |||
| Melting point | 179 | °C | DIN EN ISO 11357 |
| Maximal operating temperature (short-term) | 150 | °C | |
| Maximum Operating Temperature | 110 | °C | |
| Heat deflection temperature (HDT/A) | 141 | °C | |
| Vicat softening temperature (VST/B/50) | 90 | °C | DIN EN ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.46 | W/(m·K) | ISO 22007-4 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 23 | 10⁻⁴/K | DIN EN ISO 11359-1 |
| Insulation Properties | |||
| Dielectric Strength | 23 | kV/mm | ISO 60243-1 |
| Volume Resistivity | 10¹⁴ | Ω | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 2.4 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹⁴ | Ω | DIN EN 62631-3-2 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 60695 | UL 94 | |
Color
Black
Length
1000 mm
Material
Produktens basmaterial
Thickness
30 mm
Width
500 mm
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Low Friction
Låg friktionskoefficient, självsmörjande egenskaper
Low Water Absorption
Minimal fuktupptagning, dimensionsstabil
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyoximetylen (POM) / Polyacetal |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig termoplast. Vit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 165-175°C |
| Nedbrytningstemp. | >250 °C (bildar formaldehyd) |
| Självantändning | ca 310°C |
| Löslighet | Olöslig i vatten |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100% | |
| 2-Hydroxypropionic Acid | 90% | |
| Acetic Acid | 100% | |
| Acetone | 100% | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100% | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100% | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100% | |
| Chlorobenzene | 100% | |
| Chloroform | - | |
| Citric Acid | 10% | |
| Cresol | - | |
| Cyclohexanone | 100% | |
| Cyclohexene | 100% | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100% | |
| Ethyl Alcohol | 96% | |
| Ethylene Chloride | 100% | |
| Food Oil | - | |
| Formaldehyde, aqueous | 40% | |
| Formic Acid | 10% | |
| Frost Protection Agent | - | |
| Fuel, aromatic free | - | |
| Glycerine | 100% | |
| Glycol | 100% | |
| Heating Oil | - | |
| Heptane | 100% | |
| Hydrochloric Acid | 10% | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40% | |
| Hydrogen Peroxide | 10% | |
| Hydrogen Sulfide, aqueous solution | - | |
| Isopropyl Alcohol | 100% | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100% | |
| Methyl Ethyl Ketone (MEK) | 100% | |
| Methylene Chloride | 100% | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10% | |
| Nitric Acid (50%) | 50% | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤0.5 ppm | |
| Paraffine Oil | 100% | |
| Perchloroethylene | - | |
| Petroleum | 100% | |
| Petroleum Ether | 100% | |
| Phenol, aqueous | ca. 9% | |
| Phosphoric Acid | 50% | |
| Potassium Hydroxide liquor | 50% | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate, aqueous | - | |
| Sodium Chloride, aqueous | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor (15%) | 15% | |
| Sodium Hydroxide liquor (60%) | 60% | |
| Sodium Nitrate, aqueous | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96% | |
| Tetrahydrofuran, THF | 100% | |
| Toluene | 100% | |
| Transformer Oil | - | |
| Trichloroethylene | 100% | |
| Vinegar, standard | 5-10% | |
| Water | - | |
| Xylene | - |
Specifications
| Material | POM |
| Format | Plate |
| Length | 1000 mm |
| Width | 500 mm |
| Thickness | 30 mm |
| Color | Black |
