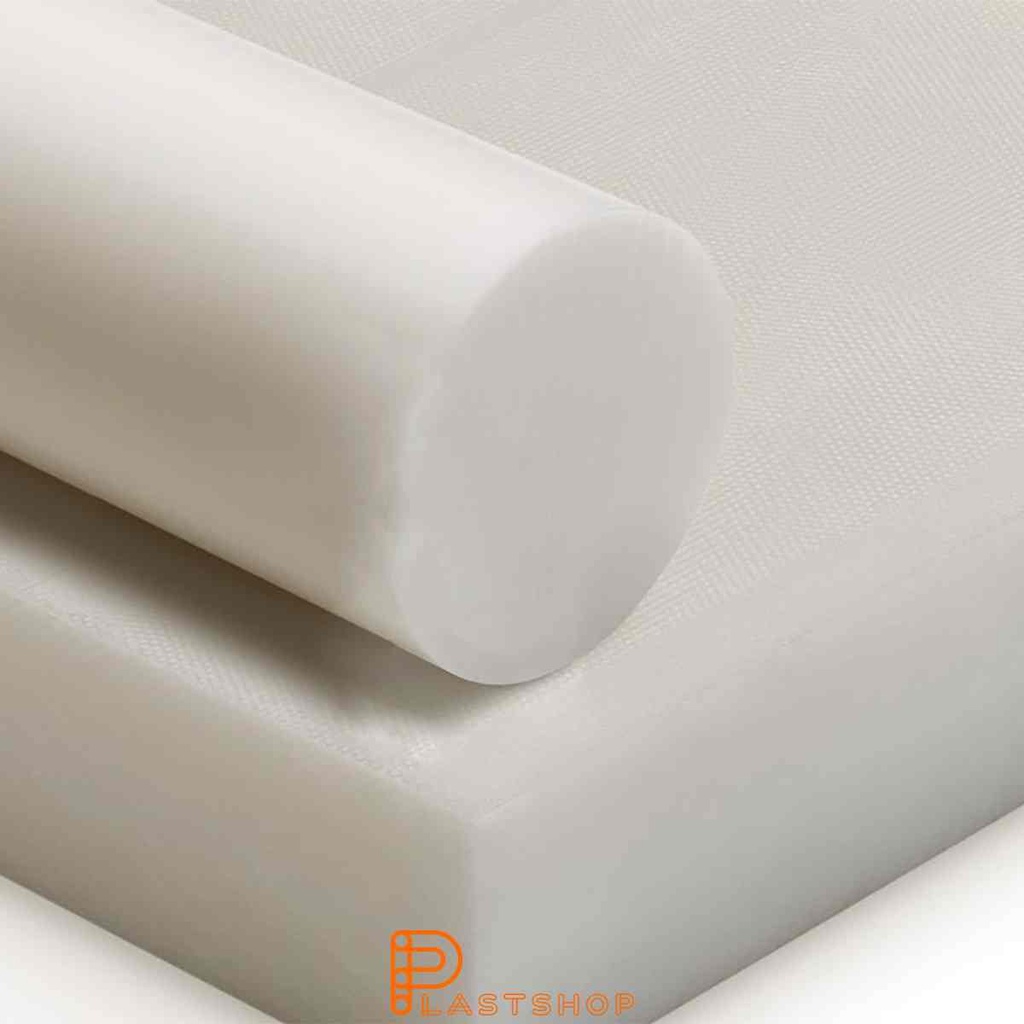

POM H 20x3000 mm natur
P1008648[P1008648] POM H 20x3000 mm natur
Material
POM
Format
Round bar
Length
3000 mm
Outer diameter
20 mm
Color
Natural
| Material | POM |
| Format | Round bar |
| Length | 3000 mm |
| Outer diameter | 20 mm |
| Color | Natural |
This content will be shared across all product pages.
Om produkten
POM H 20x3000 mm natur
POM H is characterized by its high purity and excellent mechanical properties. It is a durable and versatile material used in a variety of applications where high strength, stiffness, and dimensional stability are crucial. POM H offers excellent mechanical strength and stiffness, making it an ideal material for applications that require resistance to stress and loading. It is suitable for use in parts and components that need to maintain shape and strength over time. POM H is often used in applications that require high precision and stability, such as in machine parts and precision components. Contact us to learn more about how POM H can be used in your specific application.
Tekniska specifikationer
Color
Natural
Length
3000 mm
Material
Produktens basmaterial
Outer Diameter
20 mm
Fördelar
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Low Friction
Låg friktionskoefficient, självsmörjande egenskaper
Low Water Absorption
Minimal fuktupptagning, dimensionsstabil
Certifieringar
REACH
RoHS
Bearbetning
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 3 | g/cm³ | DIN EN ISO 1183-1 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.1 | % | DIN EN ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 53 | MPa | DIN EN ISO 527-2 |
| Modulus of elasticity (tensile) | 3000 | MPa | DIN EN ISO 527-2 |
| Break Elongation | 8 | % | DIN EN ISO 527-2 |
| Flexural Properties | |||
| Flexural Strength | 53 | MPa | DIN EN ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 25 | kJ/m² | DIN EN ISO 179-1 |
| Impact Resistance (Charpy) | 2 | kJ/m² | DIN EN ISO 179-1 |
| Hardness | |||
| Hardness Shore D | 81 | ° Shore D | DIN EN ISO 868 |
| Temperature Limits | |||
| Melting point | 179 | °C | DIN EN ISO 11357 |
| Maximal operating temperature (short-term) | 150 | °C | |
| Maximum Operating Temperature | 110 | °C | |
| Heat deflection temperature (HDT/A) | 141 | °C | |
| Vicat softening temperature (VST/B/50) | 90 | °C | DIN EN ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.46 | W/(m·K) | ISO 22007-4 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 23 | 10⁻⁴/K | DIN EN ISO 11359-1 |
| Insulation Properties | |||
| Dielectric Strength | 23 | kV/mm | ISO 60243-1 |
| Volume Resistivity | 10¹⁴ | Ω | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 2.4 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹⁴ | Ω | DIN EN 62631-3-2 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 60695 | UL 94 | |
Identifiering
| Produktnamn | Polyoximetylen (POM) / Polyacetal |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig termoplast. Vit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 165-175°C |
| Nedbrytningstemp. | >250 °C (bildar formaldehyd) |
| Självantändning | ca 310°C |
| Löslighet | Olöslig i vatten |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100% | |
| 2-Hydroxypropionic Acid | 90% | |
| Acetic Acid | 100% | |
| Acetone | 100% | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100% | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100% | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100% | |
| Chlorobenzene | 100% | |
| Chloroform | - | |
| Citric Acid | 10% | |
| Cresol | - | |
| Cyclohexanone | 100% | |
| Cyclohexene | 100% | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100% | |
| Ethyl Alcohol | 96% | |
| Ethylene Chloride | 100% | |
| Food Oil | - | |
| Formaldehyde, aqueous | 40% | |
| Formic Acid | 10% | |
| Frost Protection Agent | - | |
| Fuel, aromatic free | - | |
| Glycerine | 100% | |
| Glycol | 100% | |
| Heating Oil | - | |
| Heptane | 100% | |
| Hydrochloric Acid | 10% | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40% | |
| Hydrogen Peroxide | 10% | |
| Hydrogen Sulfide, aqueous solution | - | |
| Isopropyl Alcohol | 100% | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100% | |
| Methyl Ethyl Ketone (MEK) | 100% | |
| Methylene Chloride | 100% | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10% | |
| Nitric Acid (50%) | 50% | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤0.5 ppm | |
| Paraffine Oil | 100% | |
| Perchloroethylene | - | |
| Petroleum | 100% | |
| Petroleum Ether | 100% | |
| Phenol, aqueous | ca. 9% | |
| Phosphoric Acid | 50% | |
| Potassium Hydroxide liquor | 50% | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate, aqueous | - | |
| Sodium Chloride, aqueous | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor (15%) | 15% | |
| Sodium Hydroxide liquor (60%) | 60% | |
| Sodium Nitrate, aqueous | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96% | |
| Tetrahydrofuran, THF | 100% | |
| Toluene | 100% | |
| Transformer Oil | - | |
| Trichloroethylene | 100% | |
| Vinegar, standard | 5-10% | |
| Water | - | |
| Xylene | - |
Specifications
| Material | POM |
| Format | Round bar |
| Length | 3000 mm |
| Outer diameter | 20 mm |
| Color | Natural |
