  3. POM C FG 180/90x1000 mm traffic blue
EUR List Price €

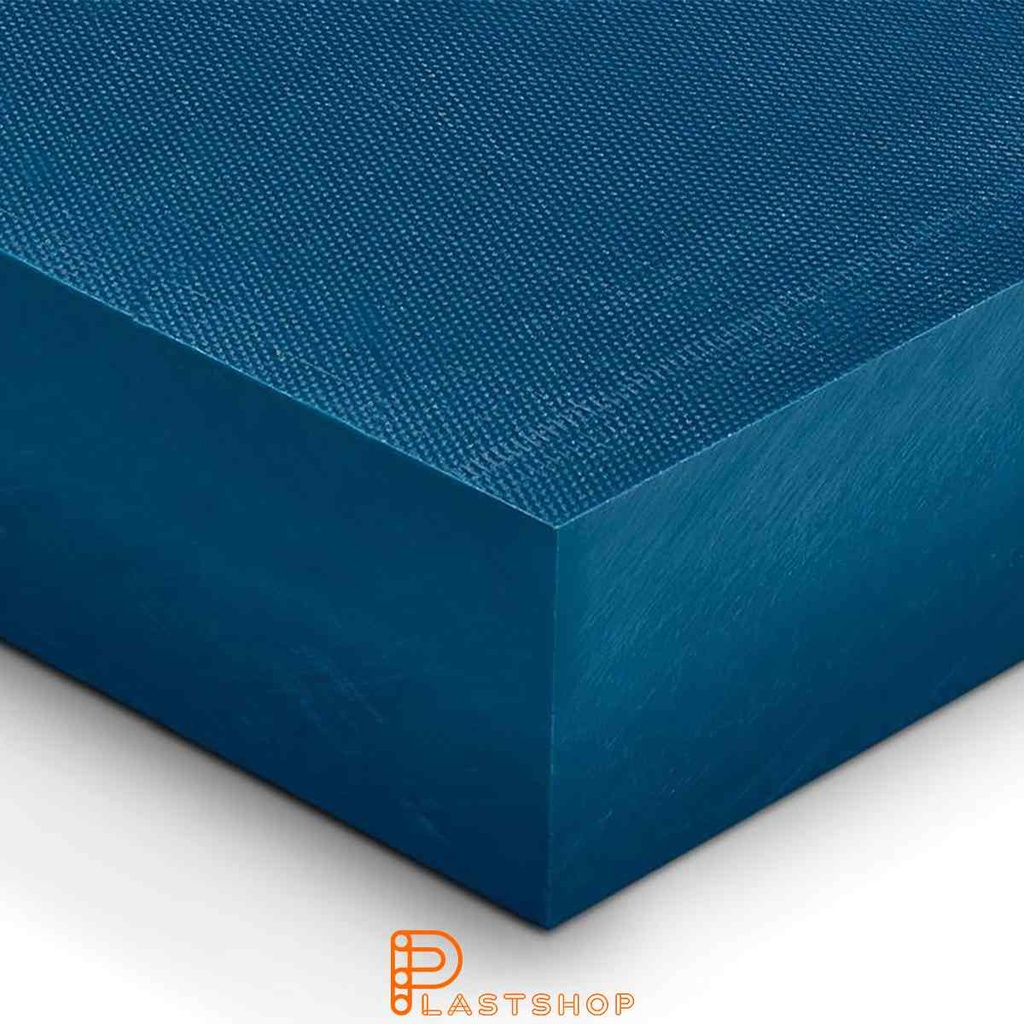

POM C FG 180/90x1000 mm traffic blue

POM C FG 180/90x1000 mm traffic blue

https://utv.plastshop.se/web/image/product.template/29059/image_1920?unique=6250cde
SKU:
P1007633
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Inner diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: POM Tube

Share

POM C FG 180/90x1000 mm trafikblå This material offers high mechanical strength and low friction, making it ideal for use in components and products that are subject to stress. It has excellent sliding properties and can withstand high loads, impacts, and abrasions. This material is food-grade compliant and meets the requirements of FDA and EU 10/2011 for direct contact with food. It is often used in applications where mechanical durability and dimensional stability are crucial. Do you need help selecting the right dimension or would you like to know more about the material's properties? Contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.24 g/cm³ ASTM D792
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.2 % ASTM D955
Water Absorption to Saturation 0.5 % ASTM D570
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 51 MPa DIN EN ISO 527-2
Modulus of elasticity (tensile) 1200 MPa ASTM D790
Breakdown Voltage 76.5 MPa ISO 527
Break Elongation 300 % ASTM D638
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 58 MPa ASTM D638
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 6 kJ/m² DIN EN ISO 179-1
Impact Resistance (Charpy) 19 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 83 ° Shore D ISO 868
Ball pressure hardness 230 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 222 °C ISO 3146
Maximal operating temperature (short-term) 129.1667 °C UL746B
Maximum Operating Temperature 90.2778 °C
Minimum temperature -46.25 °C
Heat deflection temperature (HDT/A) 105 °C ASTM D648
Heat deflection temperature (HDT/B) 155 °C ISO 75
Vicat softening temperature (VST/B/50) 50 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.3 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.4 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 85 kV/mm IEC 60243-1
Volume Resistivity 1012 Ω IEC 60093
Dielectric Constant (1 MHz) 3.6889 - IEC 60250
Dielectric loss factor (1 MHz) 0.0053 - IEC 60250
Dielectric loss factor (100 Hz) 0.002 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 1013 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Egenskap Värde Enhet Teststandard
Flammability Classification (UL 94) 60695 UL 94

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie Betyg Koncentration
1,4-Dioxane B 100%%
2-Hydroxypropionic Acid A 90%%
Acetic Acid B 100%%
Acetone A 100%%
Ammonia A conc.%
Ammonium Chloride B
Amyl Alcohol A
Apple Juice A
Benzene B
Bleaching Solution D 12.5 cl%
Boric Acid B 100%%
Brake Fluid A
Butyl Acetate A
Calcium Chloride A
Carbon Disulfide A 100%%
Carbon Tetrachloride A
Chlorobenzene B 100%%
Chloroform D
Citric Acid B 10%%
Cyclohexanone A 100%%
Cyclohexene A 100%%
Diesel Fuel A
Diethylene Oxide A
Ethyl Acetate B 100%%
Ethyl Alcohol A 96%%
Food Oil A
Formaldehyde, aqueous A 40%%
Formic Acid A 10%%
Frost Protection Agent A
Fuel, aromatic free A
Glycerin A 100%%
Glycol A 100%%
Heating Oil A
Heptane A 100%%
Hydrochloric Acid D 10%%
Hydrochloric Acid (concentrated) D conc.%
Hydrofluoric Acid D 40%%
Hydrogen Peroxide A 10%%
Hydrogen Sulfide, aqueous solution A
Isopropyl Alcohol A 100%%
Linseed Oil A
Mercurochrome D
Methyl Alcohol A 100%%
Methyl Ethyl Ketone (MEK) B 100%%
Methylene Chloride D 100%%
Milk A
Mineral Oils (aromatic free) A
Nitric Acid D 10%%
Nitric Acid (50%) D 50%%
Nitrobenzene B
