P1005939

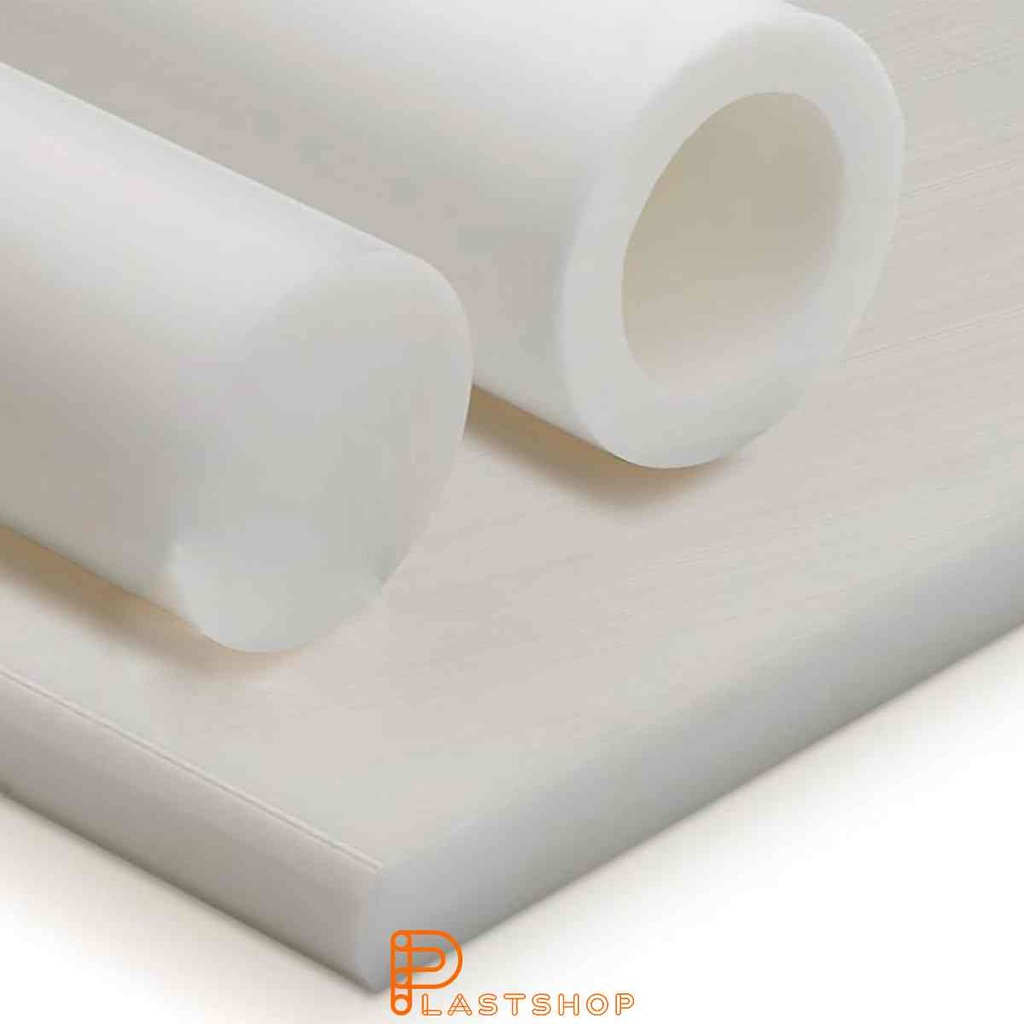

[P1005939] POM C 100/80x3000 mm natur

Material POM Format Material pipe Length 3000 mm Outer diameter 100 mm Inner diameter 80 mm Color Natural

Begär offert

Material
Format
Length
Outer diameter
Inner diameter
Color

This combination does not exist.

Visa tekniska specifikationer

Egenskaper

Color Natural

Inner Diameter 80 mm

Length 3000 mm

Outer Diameter 100 mm

Visa alla tekniska specifikationer

Specifications

Material	POM
Format	Material pipe
Length	3000 mm
Outer diameter	100 mm
Inner diameter	80 mm
Color	Natural

More Information

This content will be shared across all product pages.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Begär offert

Om produkten

POM C 100/80x3000 mm natur High mechanical strength and low friction make POM-C an ideal material for components and products that are subject to stress. It has excellent sliding properties and can withstand high loads, impacts, and abrasion. POM-C is suitable for applications where lubrication is difficult or impossible, which reduces wear and increases the lifespan of moving parts. It is commonly used in applications that require high mechanical strength and dimensional stability. If you need a material that can handle tough conditions and requires low maintenance, POM-C may be the right choice. Contact us if you want to know more about how POM-C can be used in your specific application.

Tekniska specifikationer

Color

Natural

Inner Diameter

80 mm

Length

3000 mm

Material

Produktens basmaterial

Outer Diameter

100 mm

Fördelar

Dimensionally Stable

Låg krypning och minimal formförändring

Easy to Machine

Lätt att bearbeta med konventionella verktyg

Food Safe

Godkänd för kontakt med livsmedel (FDA/EU 10/2011)

High Stiffness

Hög elasticitetsmodul och formstabilitet

High Wear Resistance

Utmärkt motstånd mot nötning och slitage

Low Friction

Låg friktionskoefficient, självsmörjande egenskaper

Low Water Absorption

Minimal fuktupptagning, dimensionsstabil

Certifieringar

EU 10/2011 FDA REACH RoHS

Bearbetning

CNC Machining

Datorstödd bearbetning

Drilling

Håltagning med borr

Milling

Bearbetning med fräs

Sawing

Kapning med såg (band-, cirkelsåg)

Threading

Skärning av gängor (invändig/utvändig)

Turning

Bearbetning i svarv

Egenskap	Värde	Enhet	Teststandard
Density & Weight
Density	1.24	g/cm³	ASTM D792
Moisture Absorption
Water absorption to saturation	2.2	%	ASTM D955
Water Absorption to Saturation	0.5	%	ASTM D570
Tensile Properties
Tensile Strength	51	MPa	DIN EN ISO 527-2
Modulus of elasticity (tensile)	1200	MPa	ASTM D790
Breakdown Voltage	76.5	MPa	ISO 527
Break Elongation	300	%	ASTM D638
Flexural Properties
Flexural Strength	58	MPa	ASTM D638
Impact Resistance
Notched impact strength (Charpy)	6	kJ/m²	DIN EN ISO 179-1
Impact Resistance (Charpy)	19	kJ/m²	ISO 179/1eU
Hardness
Hardness Shore D	83	° Shore D	ISO 868
Ball pressure hardness	230	MPa	ISO 2039-1
Temperature Limits
Melting point	222	°C	ISO 3146
Maximal operating temperature (short-term)	129	°C	UL746B
Maximum Operating Temperature	90	°C
Minimum temperature	-46.25	°C
Heat deflection temperature (HDT/A)	105	°C	ASTM D648
Heat deflection temperature (HDT/B)	155	°C	ISO 75
Vicat softening temperature (VST/B/50)	50	°C	ISO 306
Thermal Conductivity
Thermal Conductivity	0.3	W/(m·K)	DIN 52612
Thermal Expansion
Thermal Expansion Coefficient	0.4	10⁻⁴/K	ISO 11359
Insulation Properties
Dielectric Strength	85	kV/mm	IEC 60243-1
Volume Resistivity	10¹²	Ω	IEC 60093
Dielectric Constant (1 MHz)	3.7	-	IEC 60250
Dielectric loss factor (1 MHz)	0.0	-	IEC 60250
Dielectric loss factor (100 Hz)	0.0	-	IEC 60250
Static spread
Surface Resistivity	10¹³	Ω	IEC 60093
Comparative Tracking Index (CTI)	600	V	IEC 60112
Fire Classification
Flammability Classification (UL 94)	60695		UL 94

Ladda ner tekniskt datablad (PDF)

Identifiering

Produktnamn	Polyoximetylen (POM) / Polyacetal
Klassificering	not_classified

Fysikaliska egenskaper

Utseende	Fast, ogenomskinlig termoplast. Vit till svart.
Lukt	Lätt, produktspecifik
Smältpunkt	165-175°C
Nedbrytningstemp.	>250 °C (bildar formaldehyd)
Självantändning	ca 310°C
Löslighet	Olöslig i vatten

Ladda ner komplett säkerhetsblad (PDF)

Beständig Delvis beständig Ej beständig

Kemikalie	Koncentration	Beständighet
1,4-Dioxane	100%
2-Hydroxypropionic acid (lactic acid)	90%
Acetic acid	100%
Acetone	100%
Ammonia	conc.
Ammonium chloride	-
Amyl alcohol	-
Apple juice	-
Benzene	-
Bleaching solution	12.5 cl
Boric acid	100%
Brake fluid	-
Butyl acetate	-
Calcium chloride	-
Carbon disulphide	100%
Carbon tetrachloride	-
Chlorobenzene	100%
Chloroform	-
Citric acid	10%
Cyclohexanone	100%
Cyclohexene	100%
Diesel	-
Diethylene oxide	-
Ethyl acetate	100%
Ethyl alcohol (ethanol)	96%
Food oil	-
Formaldehyde, aqueous	40%
Formic acid	10%
Frost protection agent	-
Fuel oil	-
Fuel, aromatic free	-
Glycerine	100%
Glycol	100%
Heptane	100%
Hydrochloric acid	10%
Hydrochloric acid (concentrated)	conc.
Hydrofluoric acid	40%
Hydrogen peroxide	10%
Hydrogen sulfide, aqueous	-
Isopropyl alcohol	100%
Linseed oil	-
Mercurochrome	-
Methyl alcohol (methanol)	100%
Methyl ethyl ketone (MEK)	100%
Methylene chloride	100%
Milk	-
Mineral oils (aromatic free)	-
Nitric acid	10%
Nitric acid (50%)	50%
Nitrobenzene	-
Oxalic acid	-
Ozone (gas)	≤0.5 ppm
Paraffin oil	100%
Perchloroethylene	-
Petroleum	100%
Petroleum ether	100%
Phenol, aqueous	ca. 9%
Phosphoric acid	50%
Potassium hydroxide solution	50%
Premium fuel	-
Propyl alcohol	-
Silicone oil	-
Sodium carbonate, aqueous	-
Sodium chloride, aqueous	-
Sodium hydrogen sulfite	-
Sodium hydroxide solution (15%)	15%
Sodium hydroxide solution (60%)	60%
Sodium nitrate, aqueous	-
Sulphuric acid	96%
Tetrahydrofuran (THF)	100%
Toluene	100%
Transformer oil	-
Trichloroethylene	100%
Vinegar, standard	5-10%
Water	-
Xylene	-
