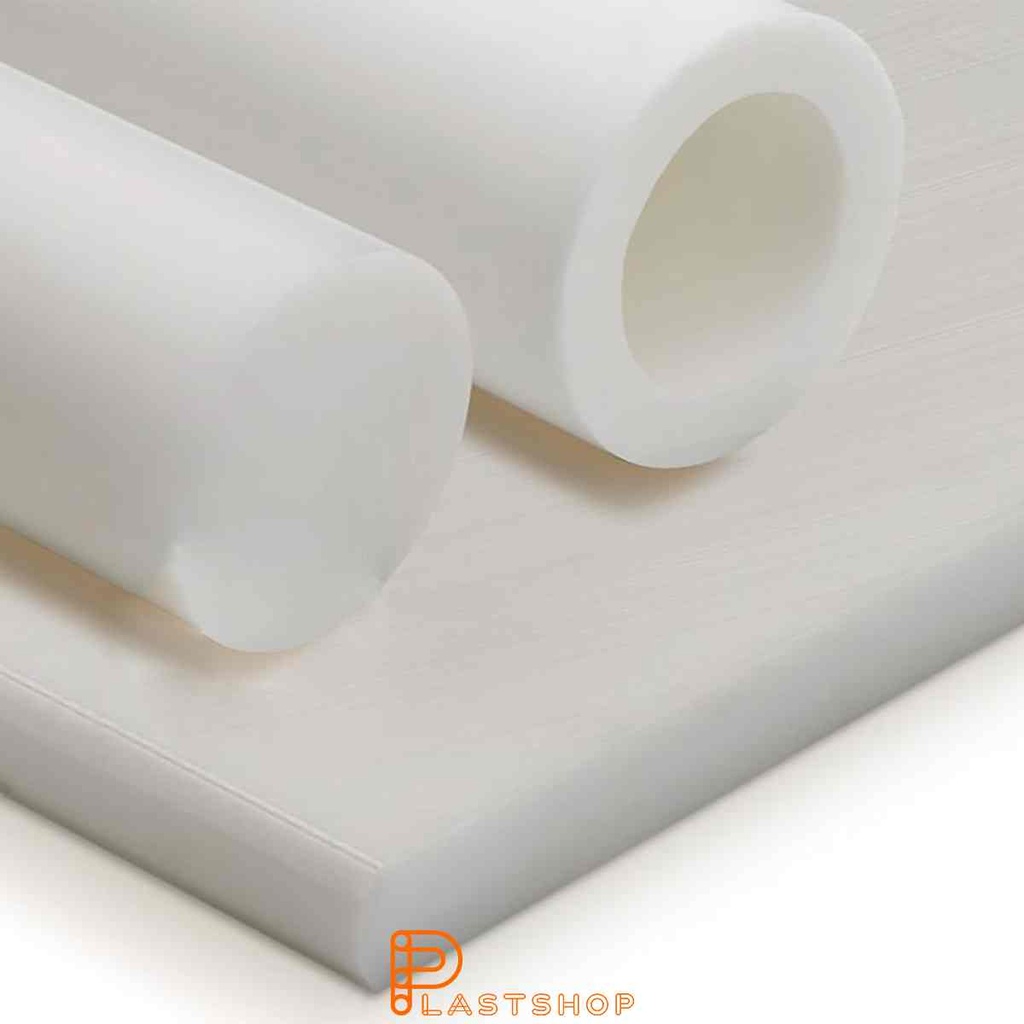

POM C 1000x1000x1,5 mm natur
POM C offers high mechanical strength and wear resistance, making it an ideal material for components and products that are subject to stress. It also has low friction and excellent sliding properties, which makes it suitable for applications where lubrication is difficult or impossible. POM C provides higher impact resistance and better moldability compared to other materials in the same category. It is used in a variety of applications where low friction, mechanical durability, and dimensional stability are important. POM C is an excellent choice for manufacturing parts that require high precision and wear resistance, such as in the machinery industry or for medical applications. Contact us if you want to know more about how POM C can be used in your project.
Technical Specifications
Color
Natural
Length
1000 mm
Material
Produktens basmaterial
Thickness
1.5 mm
Width
1000 mm
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Food Safe
Godkänd för kontakt med livsmedel (FDA/EU 10/2011)
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Low Friction
Låg friktionskoefficient, självsmörjande egenskaper
Low Water Absorption
Minimal fuktupptagning, dimensionsstabil
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyoximetylen (POM) / Polyacetal |
|---|---|
| Klassificering | not_classified |
| Tillverkare | ARC Gruppen AB // PlastShop.se |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig termoplast. Vit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 165-175°C |
| Nedbrytningstemp. | >250 °C (bildar formaldehyd) |
| Självantändning | ca 310°C |
| Löslighet | Olöslig i vatten |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100% | |
| 2-Hydroxypropionic acid (lactic acid) | 90% | |
| Acetic acid | 100% | |
| Acetone | 100% | |
| Ammonia | conc. | |
| Ammonium chloride | — | |
| Amyl alcohol | — | |
| Apple juice | — | |
| Benzene | — | |
| Bleaching solution | 12.5 cl | |
| Boric acid | 100% | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Carbon disulphide | 100% | |
| Carbon tetrachloride | — | |
| Chlorobenzene | 100% | |
| Chloroform | — | |
| Citric acid | 10% | |
| Cyclohexanone | 100% | |
| Cyclohexene | 100% | |
| Diesel | — | |
| Diethylene oxide | — | |
| Ethyl acetate | 100% | |
| Ethyl alcohol (ethanol) | 96% | |
| Food oil | — | |
| Formaldehyde, aqueous | 40% | |
| Formic acid | 10% | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100% | |
| Glycol | 100% | |
| Heptane | 100% | |
| Hydrochloric acid | 10% | |
| Hydrochloric acid (concentrated) | conc. | |
| Hydrofluoric acid | 40% | |
| Hydrogen peroxide | 10% | |
| Hydrogen sulfide, aqueous | — | |
| Isopropyl alcohol | 100% | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100% | |
| Methyl ethyl ketone (MEK) | 100% | |
| Methylene chloride | 100% | |
| Milk | — | |
| Mineral oils (aromatic free) | — | |
| Nitric acid | 10% | |
| Nitric acid (50%) | 50% | |
| Nitrobenzene | — | |
| Oxalic acid | — | |
| Ozone (gas) | ≤0.5 ppm | |
| Paraffin oil | 100% | |
| Perchloroethylene | — | |
| Petroleum | 100% | |
| Petroleum ether | 100% | |
| Phenol, aqueous | ca. 9% | |
| Phosphoric acid | 50% | |
| Potassium hydroxide solution | 50% | |
| Premium fuel | — | |
| Propyl alcohol | — | |
| Silicone oil | — | |
| Sodium carbonate, aqueous | — | |
| Sodium chloride, aqueous | — | |
| Sodium hydrogen sulfite | — | |
| Sodium hydroxide solution (15%) | 15% | |
| Sodium hydroxide solution (60%) | 60% | |
| Sodium nitrate, aqueous | — | |
| Sulphuric acid | 96% | |
| Tetrahydrofuran (THF) | 100% | |
| Toluene | 100% | |
| Transformer oil | — | |
| Trichloroethylene | 100% | |
| Vinegar, standard | 5-10% | |
| Water | — | |
| Xylene | — |
