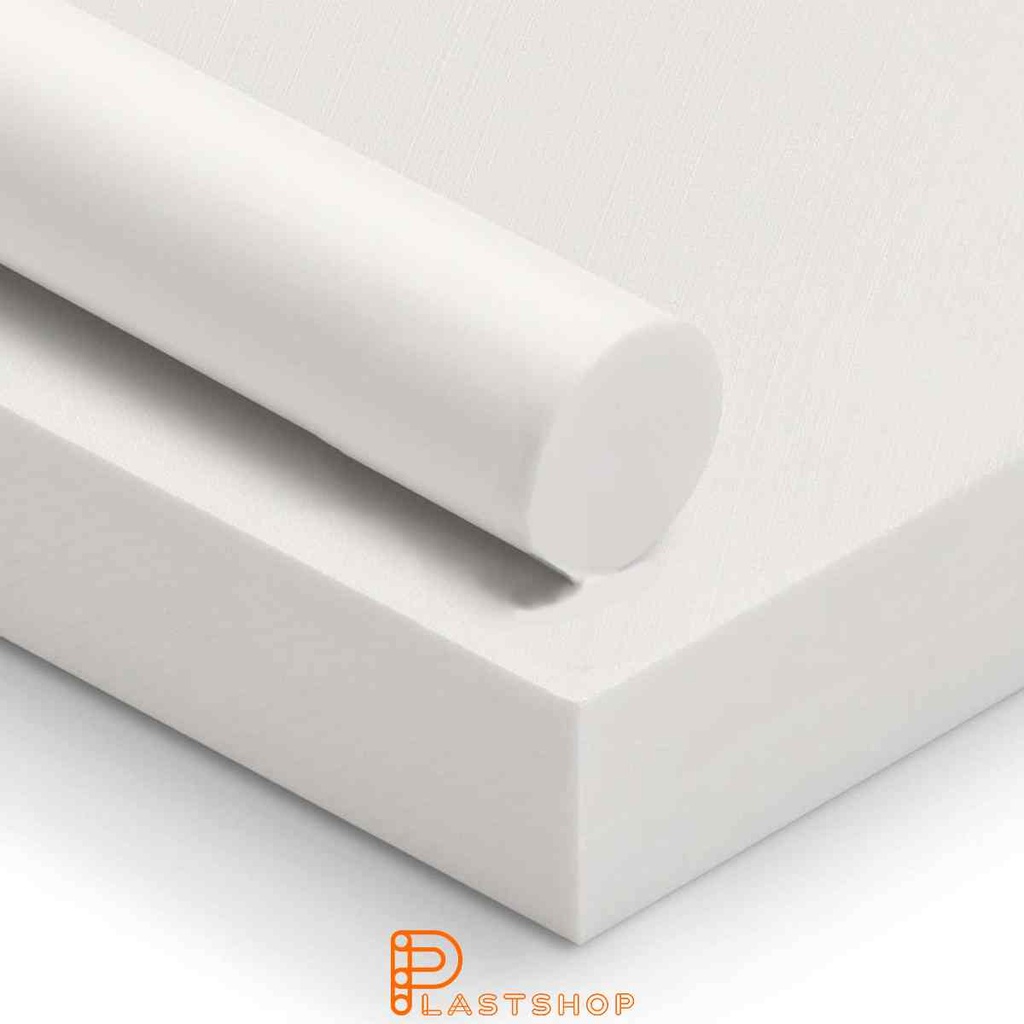

PET 2000x1000x90 mm natur
This material boasts high strength and stiffness, making it an ideal choice for applications where mechanical integrity is crucial. Its excellent tensile strength and stiffness provide a high level of mechanical strength. Additionally, it is resistant to chemicals and has a natural transparency, making it suitable for products and packaging where visibility or visual presentation is important.
It is lightweight and has good sliding properties, making it useful in various applications.
A typical use of this material is in packaging and products where the combination of strength, chemical resistance, and lightweight properties is critical.
Contact us if you want to know more about how this material can be used in your specific application.
Technical Specifications
Color
Natural
Length
2000 mm
Material
Produktens basmaterial
Thickness
90 mm
Width
1000 mm
| Property | Value | Unit | Test standard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.46 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.02 | % | ISO 62 |
| Water Absorption to Saturation | 0.02 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 52 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 3400 | MPa | ISO 527-2 |
| Breakdown Voltage | 58 | MPa | ISO 527 |
| Break Elongation | 5 | % | ISO 527-2 |
| Flexural Properties | |||
| Flexural Strength | 75.25 | MPa | ISO 178 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 90 | kJ/m² | ISO 180 |
| Impact Resistance (Charpy) | 37 | kJ/m² | ISO 179/1eU |
| Hardness | |||
| Hardness Shore D | 77 | ° Shore D | ISO 868 |
| Rockwell hardness | 112 | M-scale | |
| Ball pressure hardness | 166 | MPa | ISO 2039 |
| Temperature Limits | |||
| Melting point | 224 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 138.75 | °C | UL746B |
| Maximum Operating Temperature | 97 | °C | |
| Minimum temperature | -25 | °C | |
| Heat deflection temperature (HDT/A) | 85 | °C | ISO 75 |
| Heat deflection temperature (HDT/B) | 100 | °C | ISO 75 |
| Vicat softening temperature (VST/B/50) | 219 | °C | ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.33 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.8 | 10⁻⁴/K | DIN 11359 |
| Insulation Properties | |||
| Dielectric Strength | 22 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹⁸ | Ω·cm | DIN EN 62631-3-1 |
| Dielectric Constant (1 MHz) | 3.3 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹⁴ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
Identification
| Product name | Polyetylentereftalat (PET) |
|---|---|
| Classification | not_classified |
| Supplier | ARC Gruppen AB // PlastShop.se |
| Chemical characterization | Polyetylentereftalat (PET), CAS 25038-59-9 |
| Physical/chemical hazards | Brandfarlig.. Damm kan orsaka mekanisk irritation. |
|---|---|
| Health hazards | Brandfarlig.. Damm kan orsaka mekanisk irritation. |
| Environmental hazards | Materialet är inte skadligt för miljön, men är inte biologiskt nedbrytbart. |
Physical properties
| Fysisk form | Fast, transparent till ogenomskinlig termoplast. |
|---|---|
| Färg | Fast, transparent till ogenomskinlig termoplast. |
| Odour | Lätt, produktspecifik |
| Melting point | 250-260°C |
|---|---|
| Auto-ignition | ca 480°C |
| Decomposition temp. | >350 °C |
| Solubility | Olöslig i vatten |
Handling and storage
| Handling | Vid bearbetning av halvfabrikatet bör spån sugas bort för att undvika halkskador. |
|---|---|
| Storage | Förvara inert produkt torrt och svalt. Håll lager- och arbetsutrymmen välventilerade. Håll borta från öppen låga, värmekälla eller antändning. På grund av risken för kollaps, stapla inte mer än två pallar ovanpå varandra. Pallar ska inte staplas ovanpå varandra längs gångar. |
Personal protection
| Gloves | Skyddshandskar vid kontakt med varmt material. |
|---|---|
| Eyes | Skyddsglasögon eller visir vid bearbetning. |
| Respiratory | Adekvat ventilering vid arbetsplatsen krävs. |
Stability and reactivity
| Förhållanden | Temperaturer över smältpunkten. |
|---|---|
| Materials to avoid | Starka oxidanter. |
| Decomposition products | Kolmonoxid, CAS 630-08-0 |
Transport information
Inte klassificerad som farligt gods.
Legal specifications
Produkten kräver ingen varningsetikett i enlighet med EU-direktiv.
Resistant
Partially resistant
Not resistant
| Chemical | Concentration | Resist. |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 1,4-Dioxane | 100 | |
| Acetic acid | 100 | |
| Acetic acid | 100% | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonia | conc. | |
| Apple juice | — | |
| Apple juice | — | |
| Benzene | — | |
| Benzene | — | |
| Bleaching solution | — | |
| Brake fluid | — | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Calcium chloride | — | |
| Carbon disulphide | 100 | |
| Carbon disulphide | 100 | |
| Carbon tetrachloride | — | |
| Carbon tetrachloride | — | |
| Carbon tetrachloride | — | |
| Chlorobenzene | 100% | |
| Chlorobenzene | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Chloroform | — | |
| Citric acid | 10 | |
| Citric acid | 10 | |
| Diesel | — | |
| Diesel | — | |
| Diethylene oxide | — | |
| Diethylene oxide | — | |
| Ethyl acetate | 100 | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethyl alcohol (ethanol) | 96% | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Ethylene chloride | 100 | |
| Food oil | — | |
| Food oil | — | |
| Food oil | — | |
| Formic acid | 10 | |
| Formic acid | 10 | |
| Frost protection agent | — | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycerine | 100 | |
| Glycerine | 100% | |
| Glycol | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | conc. | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid | conc. | |
| Hydrochloric acid (concentrated) | conc. | |
| Hydrofluoric acid | 40% | |
| Hydrofluoric acid | 40 | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide, aqueous | — | |
| Isopropyl alcohol | 100 | |
| Isopropyl alcohol | 100% | |
| Isopropyl alcohol | 100 | |
| Linseed oil | — | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100 | |
| Methyl alcohol (methanol) | 100 | |
| Methyl alcohol (methanol) | 100% | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Methylene chloride | 100 | |
| Milk | — | |
| Milk | — | |
| Mineral oils, aromatic free | — | |
| Mineral oils, aromatic free | — | |
| Nitric acid | 50 | |
| Nitric acid | 50 | |
| Nitric acid | 10% | |
| Nitric acid | 10 | |
| Nitric acid | 10 | |
| Paraffin oil | 100 | |
| Paraffin oil | 100 | |
| Perchloroethylene | — | |
| Perchloroethylene | — | |
| Petroleum | 100% | |
| Petroleum | 100 |
Showing first 100. Download complete list (PDF)
