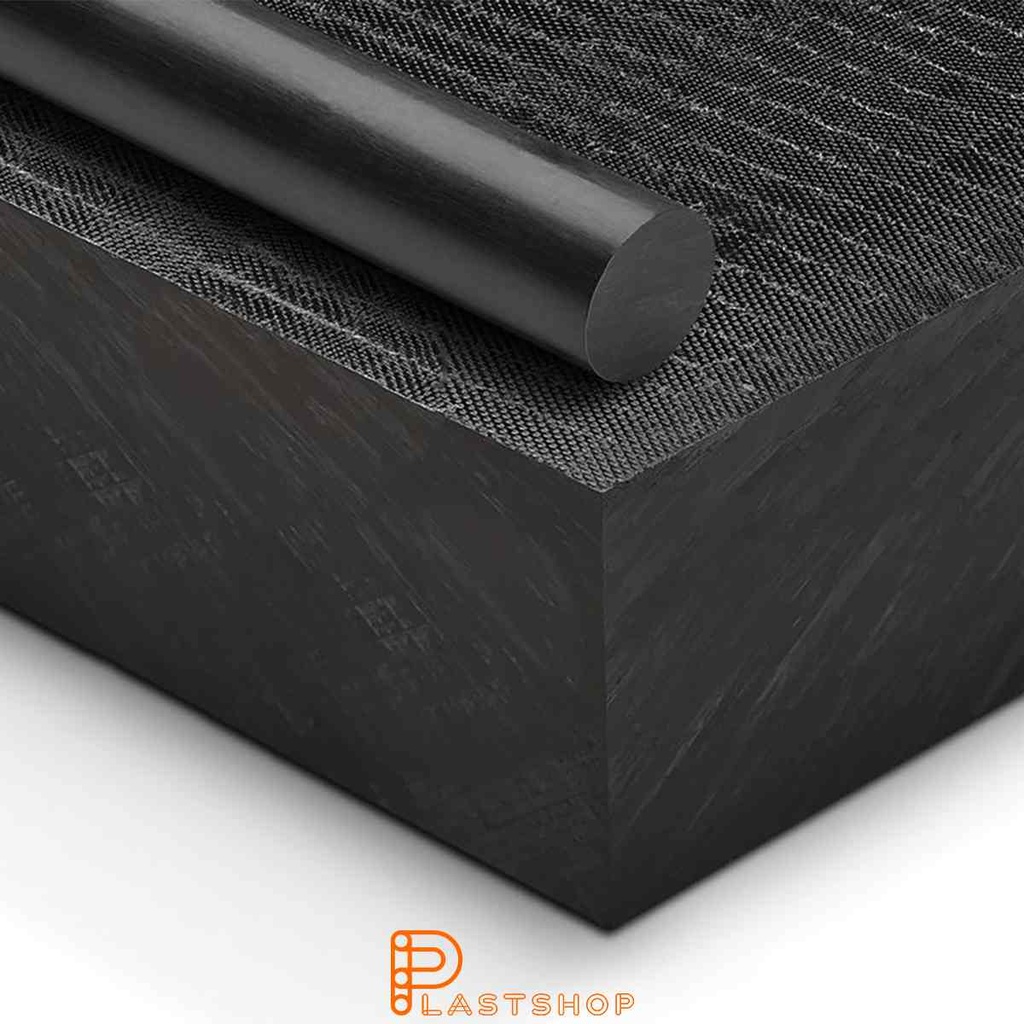

PET 1000x1000x90 mm black

SKU:

P1003737

30-day money-back
7-day returns
Shipping: 2-3 Days

Description

PET 1000x1000x90 mm svart This material boasts high strength and stiffness, making it an ideal choice for applications where mechanical integrity is crucial. Its excellent tensile strength and stiffness provide a high level of mechanical strength. Additionally, it is resistant to chemicals and has a natural transparency, making it suitable for products and packaging where visibility or visual presentation is important. It is lightweight and has good sliding properties, making it useful in various applications. A typical use of this material is in packaging and products where the combination of strength, chemical resistance, and lightweight properties is critical. Contact us if you want to know more about how this material can be used in your specific application.

Specifications

Material	PET
Format	Plate
Length	1000 mm
Width	1000 mm
Thickness	90 mm
Color	Black

Tekniska specifikationer

Density & Weight

Egenskap	Värde	Enhet	Teststandard
Density	1.46	g/cm³	ISO 1183

Moisture Absorption

Egenskap	Värde	Enhet	Teststandard
Water absorption to saturation	0.02	%	ISO 62
Water Absorption to Saturation	0.02	%	ISO 62

Tensile Properties

Egenskap	Värde	Enhet	Teststandard
Tensile Strength	52	MPa	ISO 527
Modulus of elasticity (tensile)	3400	MPa	ISO 527-2
Breakdown Voltage	58	MPa	ISO 527
Break Elongation	5	%	ISO 527-2

Flexural Properties

Egenskap	Värde	Enhet	Teststandard
Flexural Strength	75.25	MPa	ISO 178

Impact Resistance

Egenskap	Värde	Enhet	Teststandard
Notched impact strength (Charpy)	90	kJ/m²	ISO 180
Impact Resistance (Charpy)	37	kJ/m²	ISO 179/1eU

Hardness

Egenskap	Värde	Enhet	Teststandard
Hardness Shore D	77	° Shore D	ISO 868
Rockwell hardness	112	M-scale
Ball pressure hardness	166	MPa	ISO 2039

Temperature Limits

Egenskap	Värde	Enhet	Teststandard
Melting point	224	°C	ISO 3146
Maximal operating temperature (short-term)	138.75	°C	UL746B
Maximum Operating Temperature	96.6667	°C
Minimum temperature	-25	°C
Heat deflection temperature (HDT/A)	85	°C	ISO 75
Heat deflection temperature (HDT/B)	100	°C	ISO 75
Vicat softening temperature (VST/B/50)	219	°C	ISO 306

Thermal Conductivity

Egenskap	Värde	Enhet	Teststandard
Thermal Conductivity	0.33	W/(m·K)	DIN 52612

Thermal Expansion

Egenskap	Värde	Enhet	Teststandard
Thermal Expansion Coefficient	0.8	10⁻⁴/K	DIN 11359

Insulation Properties

Egenskap	Värde	Enhet	Teststandard
Dielectric Strength	22	kV/mm	IEC 60243-1
Volume Resistivity	1018	Ω·cm	DIN EN 62631-3-1
Dielectric Constant (1 MHz)	3.3	-	IEC 60250
Dielectric loss factor (1 MHz)	0.0095	-	IEC 60250
Dielectric loss factor (100 Hz)	0.0105	-	IEC 60250

Static spread

Egenskap	Värde	Enhet	Teststandard
Surface Resistivity	1014	Ω	IEC 60093
Comparative Tracking Index (CTI)	600	V	IEC 60112

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie	Betyg	Koncentration
1,4-Dioxane	B	100%
1,4-Dioxane	B	100%
Acetic Acid	A	100%%
Acetic Acid	D	100%
Acetic Acid	D	100%
Acetone	B	100%
Acetone	D	100%
Ammonia	B	conc.%
Ammonia	D	conc.%
Apple Juice	A
Apple Juice	A
Benzene	B
Benzene	D
Bleaching Solution	A
Brake Fluid	A
Brake Fluid	A
Butyl Acetate	A
Butyl Acetate	A
Calcium Chloride	A
Calcium Chloride	A
Carbon Disulfide	B	100%
Carbon Disulfide	A	100%
Carbon Tetrachloride	B
Carbon Tetrachloride	A
Carbon Tetrachloride	A
Chlorobenzene	D	100%
Chlorobenzene	A	100%%
Chlorobenzene	D	100%
Chloroform	D
Chloroform	D
Citric Acid	A	10%
Citric Acid	B	10%
Diesel Fuel	A
Diesel Fuel	A
Diethylene Oxide	A
Diethylene Oxide	A
Ethyl Acetate	A	100%
Ethyl Acetate	D	100%
Ethyl Alcohol	A	96%%
Ethyl Alcohol	A	96%
Ethyl Alcohol	A	96%
Ethylene Chloride	B	100%
Ethylene Chloride	D	100%
Food Oil	A
Food Oil	A
Food Oil	A
Formic Acid	B	10%
Formic Acid	A	10%
Frost Protection Agent	A
Frost Protection Agent	B
