  3. PET 80x3000 mm black
EUR List Price €

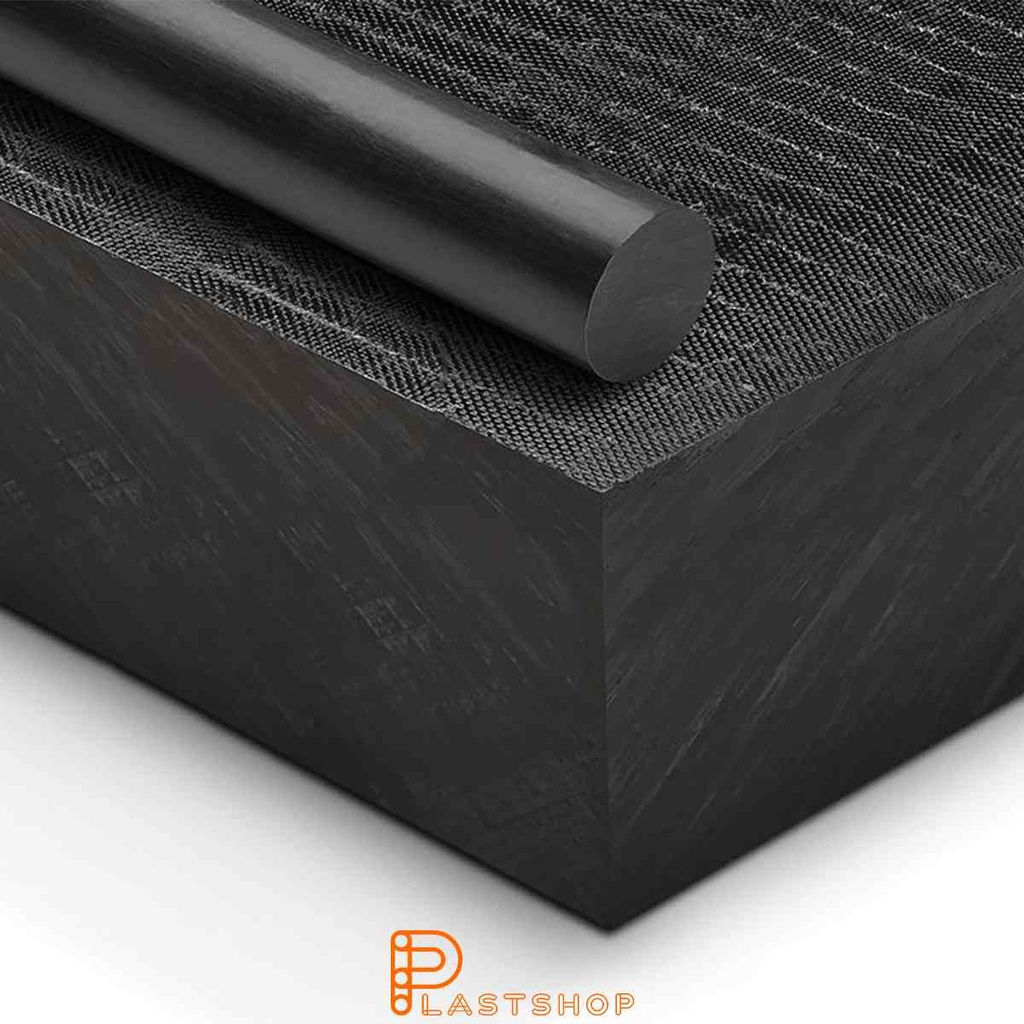

PET 80x3000 mm black

PET 80x3000 mm black

https://utv.plastshop.se/web/image/product.template/34566/image_1920?unique=30aa454
SKU:
P1003562
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PET Round Bar

Share

PET 80x3000 mm svart High strength and stiffness are key characteristics of PET, providing the material with high mechanical strength. It is strong enough to withstand loads and stresses, making it suitable for use in applications where durability is crucial. PET is also resistant to a range of chemicals, including acids, alcohols, and fats. This enables it to be used in various environments where chemical exposure occurs, without losing its properties or degrading over time. PET is a lightweight material, making it ideal for applications where weight reduction is desired. If you need help selecting the right material for your application, contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.46 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.02 % ISO 62
Water Absorption to Saturation 0.02 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 52 MPa ISO 527
Modulus of elasticity (tensile) 3400 MPa ISO 527-2
Breakdown Voltage 58 MPa ISO 527
Break Elongation 5 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 75.25 MPa ISO 178
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 90 kJ/m² ISO 180
Impact Resistance (Charpy) 37 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 77 ° Shore D ISO 868
Rockwell hardness 112 M-scale
Ball pressure hardness 166 MPa ISO 2039
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 224 °C ISO 3146
Maximal operating temperature (short-term) 138.75 °C UL746B
Maximum Operating Temperature 96.6667 °C
Minimum temperature -25 °C
Heat deflection temperature (HDT/A) 85 °C ISO 75
Heat deflection temperature (HDT/B) 100 °C ISO 75
Vicat softening temperature (VST/B/50) 219 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.33 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.8 10⁻⁴/K DIN 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 22 kV/mm IEC 60243-1
Volume Resistivity 1018 Ω·cm DIN EN 62631-3-1
Dielectric Constant (1 MHz) 3.3 - IEC 60250
Dielectric loss factor (1 MHz) 0.0095 - IEC 60250
Dielectric loss factor (100 Hz) 0.0105 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 1014 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie Betyg Koncentration
1,4-Dioxane B 100%
1,4-Dioxane B 100%
Acetic Acid A 100%%
Acetic Acid D 100%
Acetic Acid D 100%
Acetone B 100%
Acetone D 100%
Ammonia B conc.%
Ammonia D conc.%
Apple Juice A
Apple Juice A
Benzene B
Benzene D
Bleaching Solution A
Brake Fluid A
Brake Fluid A
Butyl Acetate A
Butyl Acetate A
Calcium Chloride A
Calcium Chloride A
Carbon Disulfide B 100%
Carbon Disulfide A 100%
Carbon Tetrachloride B
Carbon Tetrachloride A
Carbon Tetrachloride A
Chlorobenzene D 100%
Chlorobenzene A 100%%
Chlorobenzene D 100%
Chloroform D
Chloroform D
Citric Acid A 10%
Citric Acid B 10%
Diesel Fuel A
Diesel Fuel A
Diethylene Oxide A
Diethylene Oxide A
Ethyl Acetate A 100%
Ethyl Acetate D 100%
Ethyl Alcohol A 96%%
Ethyl Alcohol A 96%
Ethyl Alcohol A 96%
Ethylene Chloride B 100%
Ethylene Chloride D 100%
Food Oil A
Food Oil A
Food Oil A
Formic Acid B 10%
Formic Acid A 10%
Frost Protection Agent A
Frost Protection Agent B
