  3. PE-HD 250x1000 mm black
EUR List Price €

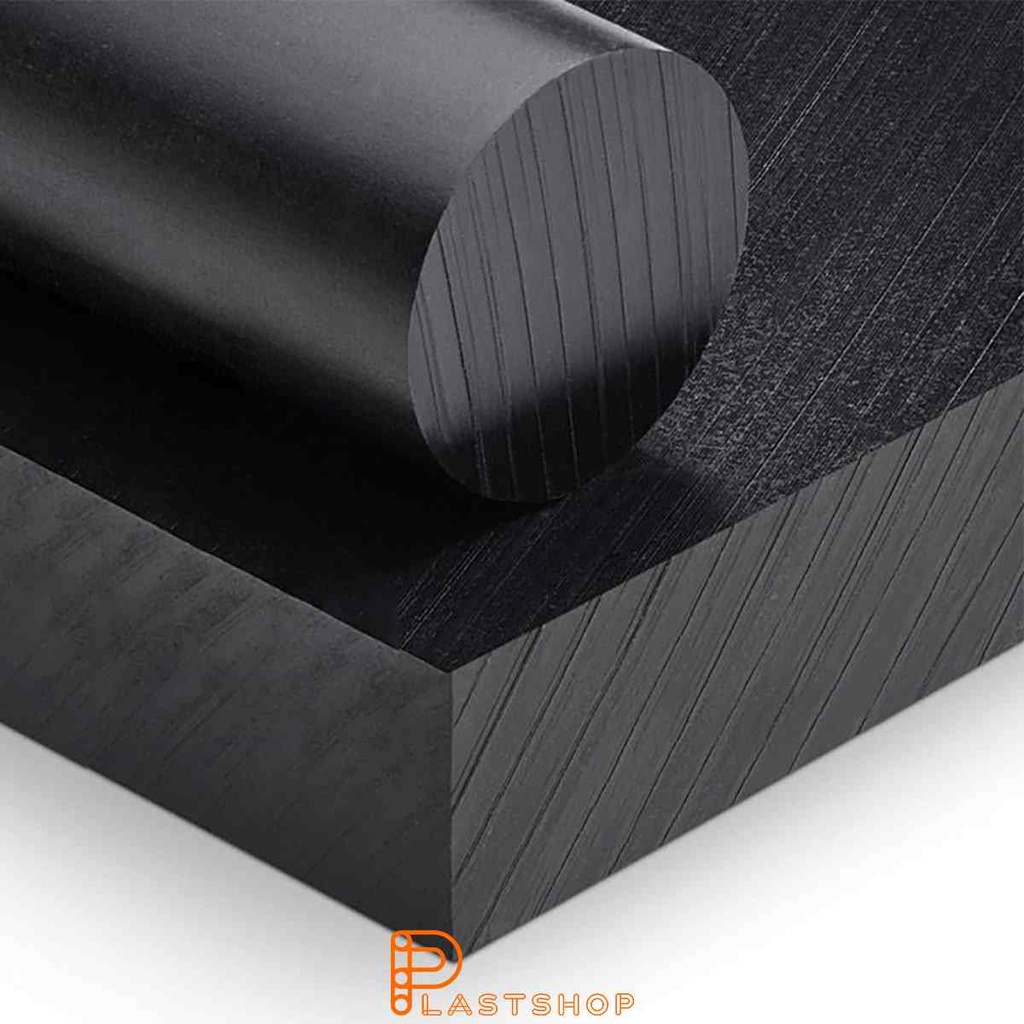

PE-HD 250x1000 mm black

PE-HD 250x1000 mm black

https://utv.plastshop.se/web/image/product.template/33741/image_1920?unique=0761be6
SKU:
P1003234
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PE Round Bar

Share

PE-HD 250x1000 mm svart This material is characterized by its high strength and durability, featuring excellent tensile strength and compressive strength. It is resilient and can withstand mechanical stress, including impacts and flexural loads. Its chemical resistance makes it suitable for use in environments where chemical exposure is common. The benefits include: * High strength and durability * Chemical resistance * Low weight and easy processing This material is suitable for use in demanding applications, such as in the chemical industry or for storing corrosive substances. Do you have questions about the material? Contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 0.96 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 0.01 % ISO 62
Water Absorption to Saturation 0.01 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 20 MPa ISO 527
Modulus of elasticity (tensile) 1200 MPa ISO 527
Breakdown Voltage 13 MPa ISO 527
Break Elongation 200 % ISO 527
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 20 MPa ISO527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 7.5 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 15 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 60 ° Shore D shore D
Ball pressure hardness 50 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 135 °C ISO 3146
Maximal operating temperature (short-term) 94.5455 °C UL746B
Maximum Operating Temperature 75.5128 °C
Minimum temperature -50.7609 °C
Heat deflection temperature (HDT/A) 45 °C ISO 75-2
Heat deflection temperature (HDT/B) 69 °C ISO 75
Vicat softening temperature (VST/B/50) 79 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.4 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 2 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 45 kV/mm IEC 60243-1
Volume Resistivity 1000000000000 Ω·cm EN 61340-5-1
Dielectric Constant (1 MHz) 2.4232 - IEC 60250
Dielectric Constant (100 Hz) 2.3 - IEC 60250
Dielectric loss factor (1 MHz) 0.0004 - IEC 60250
Dielectric loss factor (100 Hz) 0.0002 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω EN 61340-5-1
Comparative Tracking Index (CTI) 600 V IEC 60112

A = Utmärkt, B = God, C = Begränsad, D = Ej rekommenderad

Kemikalie Betyg Koncentration
1,4-Dioxane A 100%%
2-Hydroxypropionic Acid A 90%%
Acetaldehyde A
Acetic Acid A 100%%
Acetic acid A 100%%
Acetic acid, aqueous A 70%%
Acetic anhydride A
Acetone A
Acetone A 100%%
Acronal dispersions A
Acrylonitrile A
Allyl acetate A
Allyl alcohol A 96%%
Allyl chloride A
Aluminium chloride, aqueous A any%
Aluminium chloride, solid A
Aluminium fluoride A Conc.%
Aluminium hydroxide A
Aluminium metaphosphate A
Aluminium sulphate, aqueous saturated A
Aluminium sulphate, solid A
Ammonia A concentrated%
Ammonia, gaseous A
Ammonia, liquid A
Ammonium Chloride A
Amyl Alcohol A
Aniline A any%
Anisole A
Aqua regia D
Beer A
Benzaldehyde, aqueous A any%
Benzene D technically grade%
Benzene A
Benzoic acid, aqueous A any%
Benzyl alcohol A
Bitumen A
Bleaching Solution B 12.5 cl%
Boric Acid A 100%%
Brake Fluid A
Bromine, liquid D 100%%
Butanol, aqueous A any%
Butter A
Butyl Acetate A
Calcium Chloride A
Calcium hypochlorite, aqueous suspension A any%
Camphor B
Carbon Disulfide B 100%%
Carbon Tetrachloride B
Carbon disulphide D
Caustic soda A any%
