  3. PA6.6 GF30 60x3000 mm black
EUR List Price €

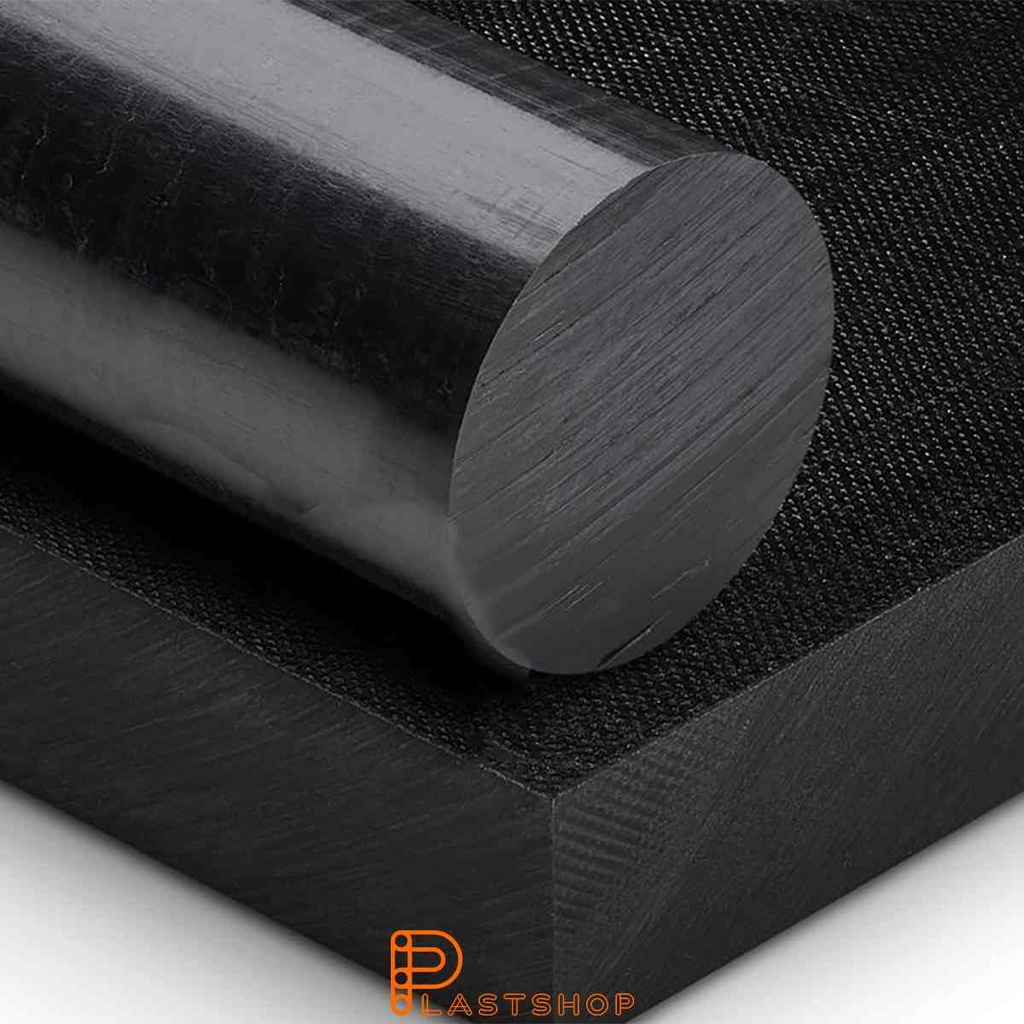

PA6.6 GF30 60x3000 mm black

PA6.6 GF30 60x3000 mm black

https://utv.plastshop.se/web/image/product.template/33149/image_1920?unique=32af57e
SKU:
P1002522
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA round bar

Share

PA6.6 GF30 60x3000 mm svart PA6 OL is known for its enhanced lubricity, reduced friction, and excellent wear resistance. The addition of oil provides improved lubricity, which reduces friction between surfaces and results in smoother movement and decreased wear. This material is particularly suitable for use in high-friction applications or where high wear resistance is crucial. PA6 OL can be used in applications where sliding or movement is common, such as moving parts or mechanical components. Contact us to learn more about how PA6 OL can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.315 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 3.6 % ISO 62
Water Absorption to Saturation 5.5 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 100 MPa ISO 527
Modulus of elasticity (tensile) 5900 MPa ISO 527-2
Breakdown Voltage 100 MPa ISO 527-2
Break Elongation 5 % ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 6 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 50 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 85 ° Shore D ISO 868
Ball pressure hardness 165 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 257.5 °C ISO 3146
Maximal operating temperature (short-term) 175 °C UL746B
Maximum Operating Temperature 120 °C
Minimum temperature -20 °C
Heat deflection temperature (HDT/A) 150 °C ISO 75-2
Heat deflection temperature (HDT/B) 250 °C ISO 75
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.31 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.5 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 30 kV/mm IEC 60243-1
Volume Resistivity 55000000000000 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.6 - IEC 60250
Dielectric loss factor (1 MHz) 0.014 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 5000000000506.5 Ω IEC 60093
Comparative Tracking Index (CTI) 475 V IEC 60112
