  3. PA6.6 165x1000 mm black
EUR List Price €

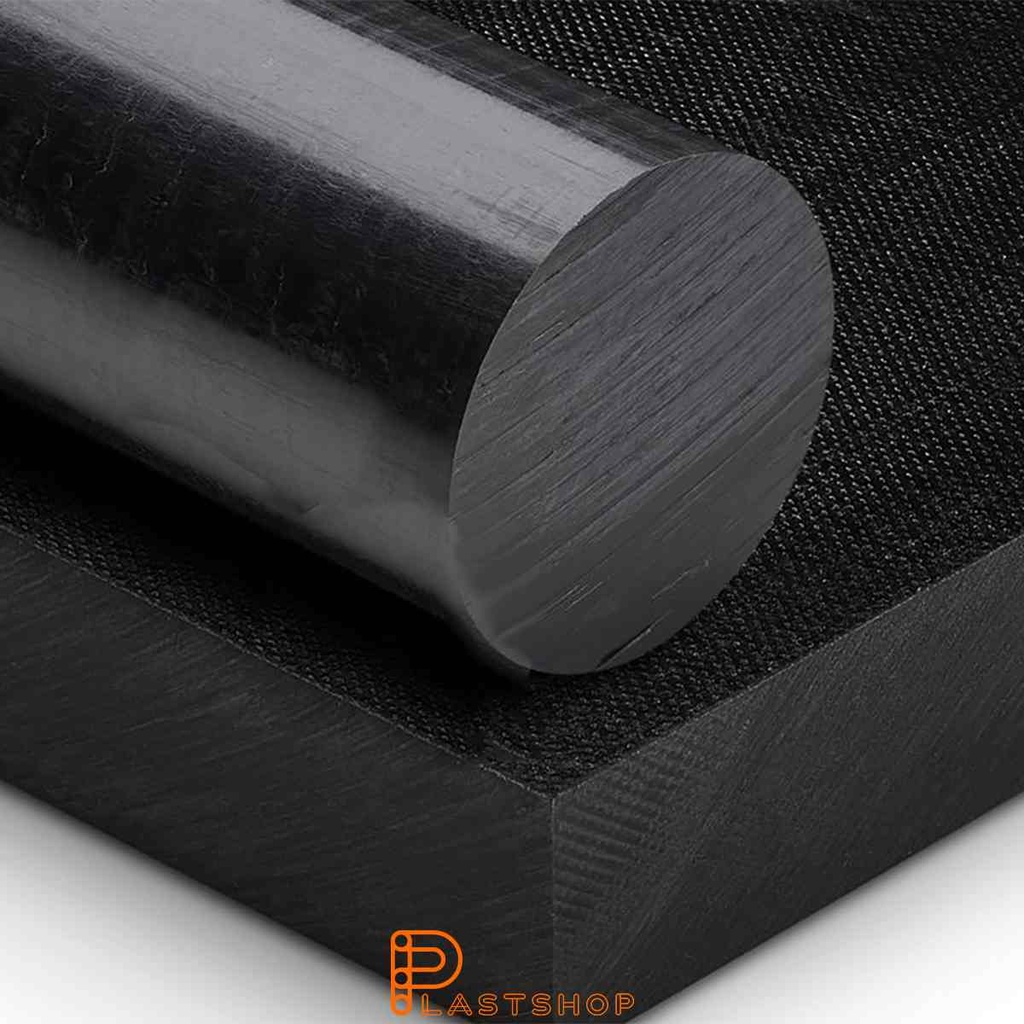

PA6.6 165x1000 mm black

PA6.6 165x1000 mm black

https://utv.plastshop.se/web/image/product.template/32911/image_1920?unique=33c7f09
SKU:
P1001886
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA round bar

Share

PA6.6 165x1000 mm svart PA6 OL is known for its enhanced lubricity, reduced friction, and excellent wear resistance. The addition of oil provides improved lubricity, which reduces friction between surfaces and results in smoother movement and decreased wear. This material is particularly suitable for use in high-friction applications or where high wear resistance is crucial. PA6 OL can be used in applications where sliding or movement is common, such as moving parts or mechanical components. Contact us to learn more about how PA6 OL can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.14 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.4 % ISO 62
Water Absorption to Saturation 8 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 85 MPa DIN EN ISO 527
Modulus of elasticity (tensile) 3100 MPa ISO 527-2
Break Elongation 40 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 998.3333 MPa ISO 178
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 6 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 50 kJ/m² ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 83 ° Shore D DIN EN ISO 868
Ball pressure hardness 174 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 260 °C ISO 3146
Maximal operating temperature (short-term) 175 °C
Maximum Operating Temperature 95 °C
Minimum temperature -30 °C
Heat deflection temperature (HDT/A) 85 °C ISO 75-2
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.28 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.8 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 27 kV/mm IEC 60243-1
Volume Resistivity 100000000000000 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.55 - IEC 60250
Dielectric Constant (100 Hz) 3.8 - IEC 60250
Dielectric loss factor (1 MHz) 0.02 - IEC 60250
Dielectric loss factor (100 Hz) 0.013 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
