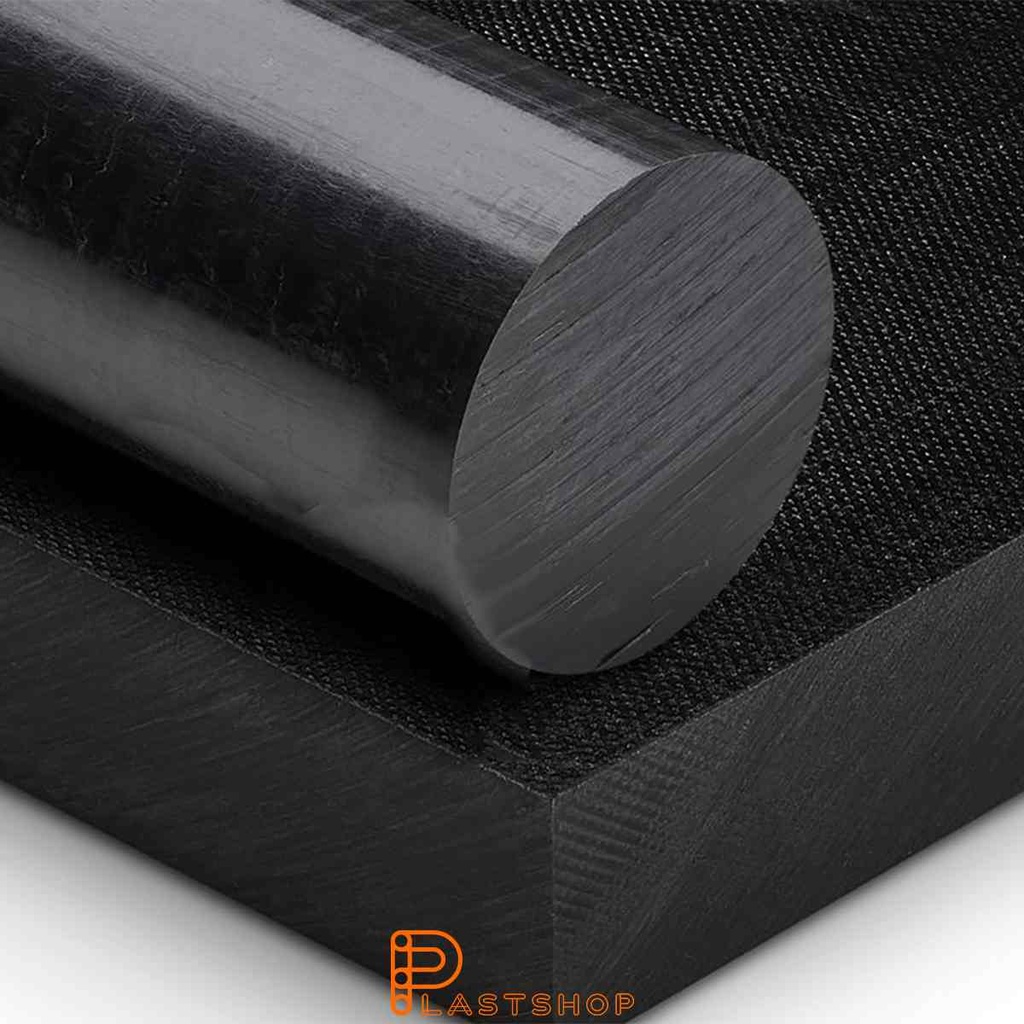

PA6 C 180x1000 mm svart
P1001618[P1001618] PA6 C 180x1000 mm svart
Material
PA
Format
Round bar
Length
1000 mm
Outer diameter
180 mm
Color
Black
| Material | PA |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 180 mm |
| Color | Black |
This content will be shared across all product pages.
Om produkten
PA6 C 180x1000 mm svart
PA6 OL is known for its enhanced lubricity, reduced friction, and excellent wear resistance. The addition of oil provides improved lubricity, which reduces friction between surfaces and results in smoother movement and decreased wear. This material is particularly suitable for use in high-friction applications or where high wear resistance is crucial.
PA6 OL can be used in applications where sliding or movement is common, such as moving parts or mechanical components.
Contact us to learn more about how PA6 OL can be used in your specific application.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.1 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 2.3 | % | ISO 62 |
| Water Absorption to Saturation | 6.5 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 75 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 3500 | MPa | ISO 527-2 |
| Break Elongation | 25 | % | ISO 527-2 |
| Flexural Properties | |||
| Flexural Strength | 85 | MPa | ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 3.5 | kJ/m² | ISO 179/1eA |
| Hardness | |||
| Ball pressure hardness | 148.3 | MPa | ISO 2039-1 |
| Temperature Limits | |||
| Melting point | 220 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 170 | °C | |
| Maximum Operating Temperature | 105 | °C | |
| Minimum temperature | -30 | °C | |
| Heat deflection temperature (HDT/A) | 80 | °C | ISO 75-2 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.29 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.8 | 10⁻⁴/K | ISO 11359 |
| Insulation Properties | |||
| Dielectric Strength | 25 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹⁴ | Ω·cm | IEC 60093 |
| Dielectric Constant (1 MHz) | 3.2 | - | IEC 60250 |
| Dielectric Constant (100 Hz) | 3.6 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹³ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
Color
Black
Length
1000 mm
Material
Produktens basmaterial
Outer Diameter
180 mm
Dimensionally Stable
Låg krypning och minimal formförändring
Easy to Machine
Lätt att bearbeta med konventionella verktyg
High Impact Resistance
Utmärkt motstånd mot slag och stötar
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Vibration Damping
God förmåga att absorbera vibrationer
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyamid (PA) / Nylon |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig till ogenomskinlig termoplast. Naturvit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 220-260°C (beroende på typ) |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten (absorberar fukt) |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100 | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric Acid | 10 | |
| Cresol | - | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | - | |
| Fuel (aromatic free) | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | - | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | - | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10 | |
| Nitric Acid | 50 | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤ 0.5 ppm | |
| Paraffine Oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate (aqueous) | - | |
| Sodium Chloride (aqueous) | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor | 60 | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Nitrate (aqueous) | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PA |
| Format | Round bar |
| Length | 1000 mm |
| Outer diameter | 180 mm |
| Color | Black |
