  3. PA6 GF30 1000x500x15 mm black
EUR List Price €

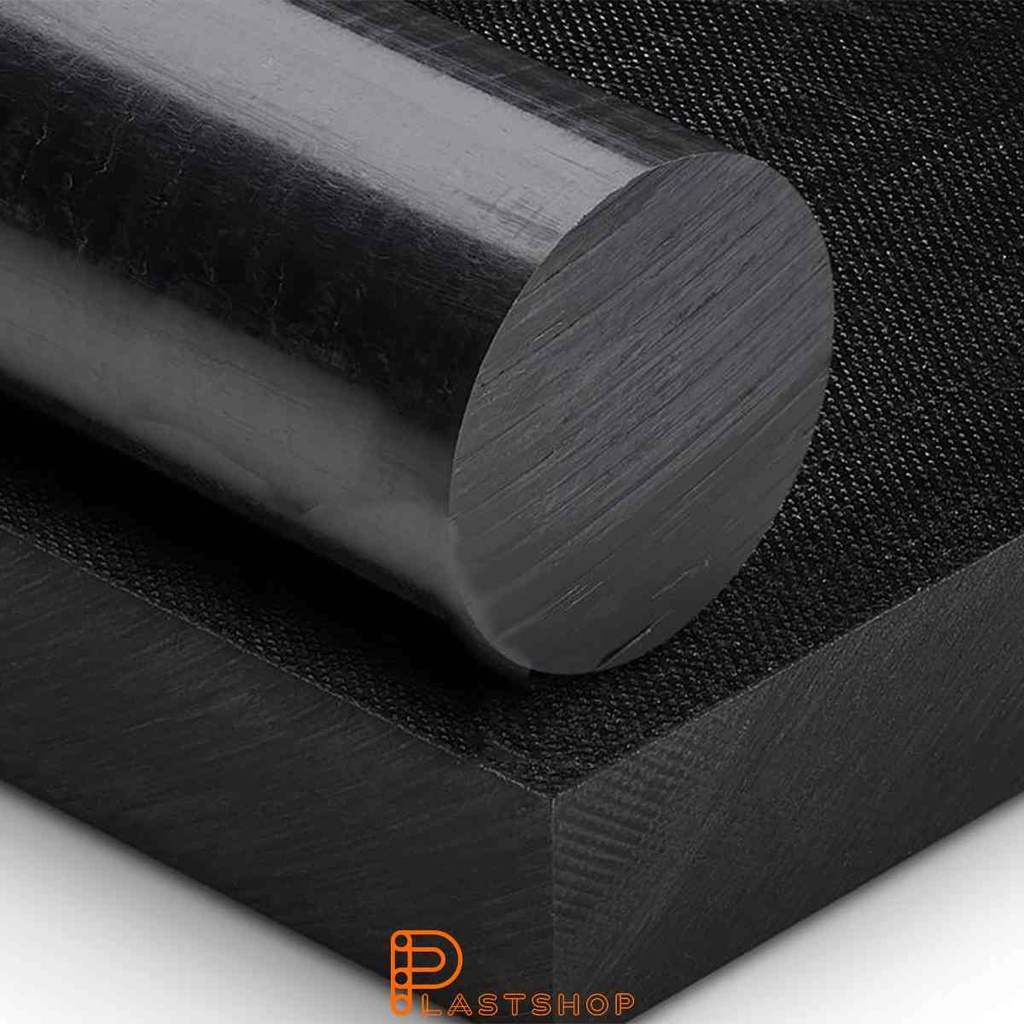

PA6 GF30 1000x500x15 mm black

PA6 GF30 1000x500x15 mm black

https://utv.plastshop.se/web/image/product.template/24369/image_1920?unique=20b4057
SKU:
P1001502
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA Sheet

Share

PA6 GF30 1000x500x15 mm svart Flame-retardant properties make PA an ideal material for applications where fire safety is of utmost importance. It has high tensile strength, stiffness, and impact resistance, making it a strong and durable material choice. PA also offers good chemical resistance to a range of common chemicals and solvents. It is suitable for use in components and parts that require both mechanical strength and fire safety, such as the electrical and electronics industry, automotive industry, and construction sector. If you need help selecting the right material for your application, contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.34 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.1 % ISO 62
Water Absorption to Saturation 6.6 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Modulus of elasticity (tensile) 8700 MPa ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 120 MPa ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 5 kJ/m² ISO 179/1eA
Impact Resistance (Charpy) 50 kJ/m² ISO 179/1eU
Hardness
Egenskap Värde Enhet Teststandard
Ball pressure hardness 43 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 220 °C ISO 3146
Maximal operating temperature (short-term) 180 °C
Maximum Operating Temperature 100 °C
Minimum temperature -20 °C
Heat deflection temperature (HDT/A) 210 °C ISO 75-2
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.28 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.26 10⁻⁴/K DIN 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Volume Resistivity 100000000000000 Ω·cm IEC 60093
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
