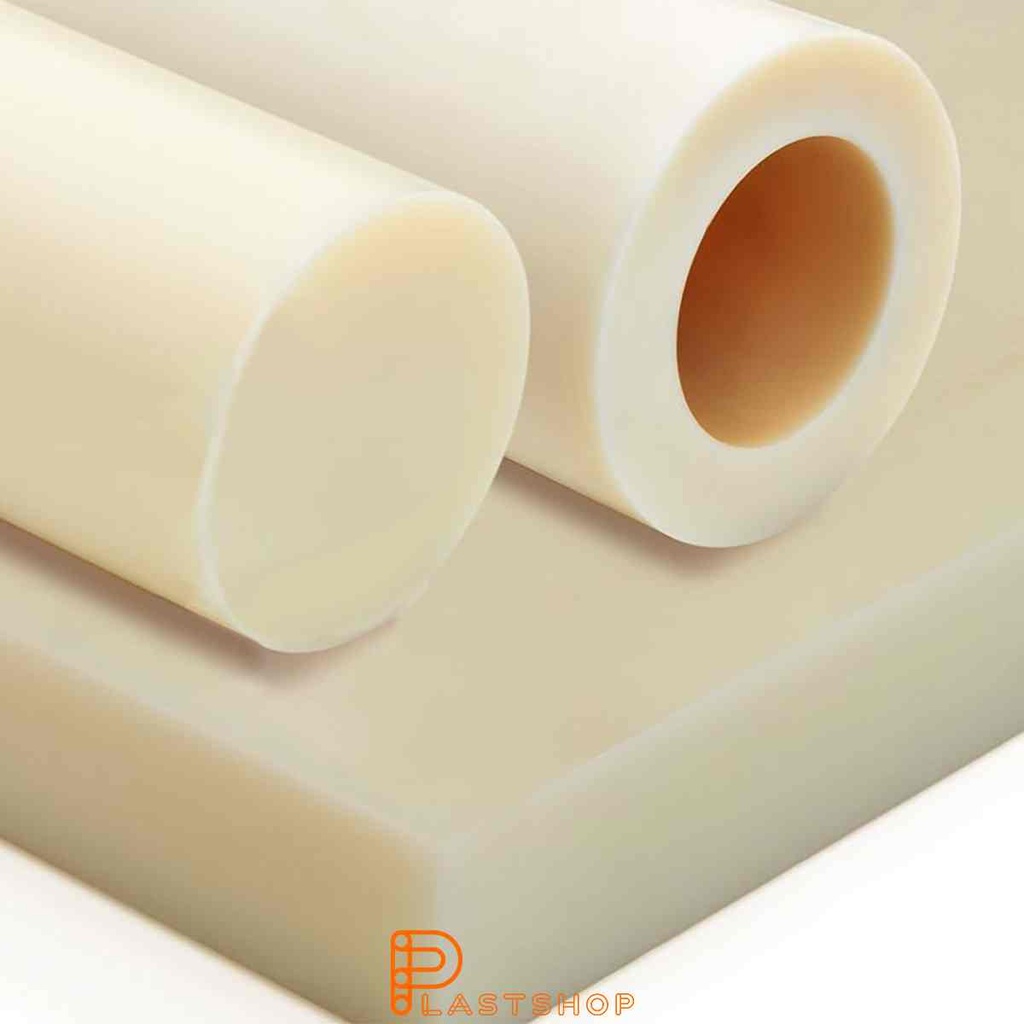

PA6 E FG 3000x610x30 mm natur
P1001362[P1001362] PA6 E FG 3000x610x30 mm natur
Material
PA
Format
Plate
Length
3000 mm
Width
610 mm
Thickness
30 mm
Color
Natural
Egenskaper
Color
Natural
Length
3000 mm
Thickness
30 mm
Width
610 mm
| Material | PA |
| Format | Plate |
| Length | 3000 mm |
| Width | 610 mm |
| Thickness | 30 mm |
| Color | Natural |
This content will be shared across all product pages.
Om produkten
PA6 E FG 3000x610x30 mm natur
Flame-retardant properties make PA an ideal material for applications where fire safety is of utmost importance. It has high tensile strength, stiffness, and impact resistance, making it a strong and durable material choice. PA also offers good chemical resistance to a range of common chemicals and solvents. It is suitable for use in components and parts that require both mechanical strength and fire safety, such as the electrical and electronics industry, automotive industry, and construction sector. If you need help selecting the right material for your application, contact us.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.14 | g/cm³ | ISO 1183 |
| Density | 1.13 | g/cm³ | ISO 1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 2.5 | % | ISO 62 |
| Water absorption to saturation | 9.5 | % | ISO 62 |
| Water Absorption to Saturation | 9 | % | ISO 62 |
| Water Absorption to Saturation | 9.5 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 70 | MPa | DIN EN ISO 527 |
| Tensile Strength | 83 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 3250 | MPa | ISO 527-2 |
| Modulus of elasticity (tensile) | 3330 | MPa | ISO 527 |
| Breakdown Voltage | 75 | MPa | ISO 527-2 |
| Breakdown Voltage | 54 | MPa | ISO 527 |
| Break Elongation | 40 | % | ISO 527-2 |
| Break Elongation | 50 | % | ISO 527 |
| Flexural Properties | |||
| Flexural Strength | 76 | MPa | ISO 527-2 |
| Flexural Strength | 100 | MPa | ISO 178 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 5.5 | kJ/m² | ISO 179/1eA |
| Notched impact strength (Charpy) | 7 | kJ/m² | ISO 179 |
| Hardness | |||
| Hardness Shore D | 82 | ° Shore D | DIN EN ISO 868 |
| Hardness Shore D | 80 | ° Shore D | ISO 868 |
| Ball pressure hardness | 150 | MPa | ISO 2039-1 |
| Ball pressure hardness | 155 | MPa | ISO 2039 |
| Temperature Limits | |||
| Melting point | 220 | °C | ISO 3146 |
| Melting point | 220 | °C | ISO 3146 |
| Maximal operating temperature (short-term) | 160 | °C | |
| Maximal operating temperature (short-term) | 130 | °C | UL746B |
| Maximum Operating Temperature | 90.5 | °C | |
| Maximum Operating Temperature | 85 | °C | |
| Minimum temperature | -36 | °C | |
| Minimum temperature | -40 | °C | |
| Heat deflection temperature (HDT/A) | 70 | °C | ISO 75-2 |
| Heat deflection temperature (HDT/A) | 75 | °C | ISO 75-2 |
| Heat deflection temperature (HDT/B) | 140 | °C | ISO 75-2 |
| Heat deflection temperature (HDT/B) | 190 | °C | ISO 75-2 |
| Vicat softening temperature (VST/B/50) | 190 | °C | ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.32 | W/(m·K) | DIN 52612 |
| Thermal Conductivity | 0.28 | W/(m·K) | DIN 52612 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 1.1 | 10⁻⁴/K | ISO 11359 |
| Thermal Expansion Coefficient | 0.9 | 10⁻⁴/K | ISO 11359 |
| Insulation Properties | |||
| Dielectric Strength | 30 | kV/mm | IEC 60243-1 |
| Dielectric Strength | 25 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹³ | Ω·cm | IEC 60093 |
| Volume Resistivity | 10¹² | Ω·cm | IEC 60093 |
| Dielectric Constant (1 MHz) | 3.8 | - | IEC 60250 |
| Dielectric Constant (1 MHz) | 3.7 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.03 | - | IEC 60250 |
| Dielectric Constant (100 Hz) | 3.9 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.0 | - | IEC 60250 |
| Dielectric loss factor (100 Hz) | 0.0 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹³ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
| Surface Resistivity | 10¹³ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 3 | UL 94 | |
Color
Natural
Length
3000 mm
Material
Produktens basmaterial
Thickness
30 mm
Width
610 mm
Easy to Machine
Lätt att bearbeta med konventionella verktyg
Food Safe
Godkänd för kontakt med livsmedel (FDA/EU 10/2011)
High Impact Resistance
Utmärkt motstånd mot slag och stötar
High Stiffness
Hög elasticitetsmodul och formstabilitet
High Wear Resistance
Utmärkt motstånd mot nötning och slitage
Vibration Damping
God förmåga att absorbera vibrationer
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Threading
Skärning av gängor (invändig/utvändig)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyamid (PA) / Nylon |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig till ogenomskinlig termoplast. Naturvit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 220-260°C (beroende på typ) |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten (absorberar fukt) |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic Acid | 90 | |
| Acetic Acid | 100 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonium Chloride | - | |
| Amyl Alcohol | - | |
| Apple Juice | - | |
| Benzene | - | |
| Bleaching Solution | 12.5 cl | |
| Boric Acid | 100 | |
| Brake Fluid | - | |
| Butyl Acetate | - | |
| Calcium Chloride | - | |
| Carbon Disulfide | 100 | |
| Carbon Tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric Acid | 10 | |
| Cresol | - | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel Fuel | - | |
| Diethylene Oxide | - | |
| Ethyl Acetate | 100 | |
| Ethyl Alcohol | 96 | |
| Ethylene Chloride | 100 | |
| Food Oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic Acid | 10 | |
| Frost Protection Agent | - | |
| Fuel (aromatic free) | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heating Oil | - | |
| Heptane | 100 | |
| Hydrochloric Acid | 10 | |
| Hydrochloric Acid (concentrated) | conc. | |
| Hydrofluoric Acid | 40 | |
| Hydrogen Peroxide | 10 | |
| Hydrogen Sulfide (aqueous) | - | |
| Isopropyl Alcohol | 100 | |
| Linseed Oil | - | |
| Mercurochrome | - | |
| Methyl Alcohol | 100 | |
| Methyl Ethyl Ketone (MEK) | 100 | |
| Methylene Chloride | 100 | |
| Milk | - | |
| Mineral Oils (aromatic free) | - | |
| Nitric Acid | 10 | |
| Nitric Acid | 50 | |
| Nitrobenzene | - | |
| Oxalic Acid | - | |
| Ozone Gas | ≤ 0.5 ppm | |
| Paraffine Oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum Ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric Acid | 50 | |
| Potassium Hydroxide liquor | 50 | |
| Premium Fuel | - | |
| Propyl Alcohol | - | |
| Pyridine | - | |
| Silicone Oil | - | |
| Sodium Carbonate (aqueous) | - | |
| Sodium Chloride (aqueous) | - | |
| Sodium Hydrogen Sulfite | - | |
| Sodium Hydroxide liquor | 60 | |
| Sodium Hydroxide liquor | 15 | |
| Sodium Nitrate (aqueous) | - | |
| Sodium Thiosulfate | - | |
| Sulfuric Acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer Oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PA |
| Format | Plate |
| Length | 3000 mm |
| Width | 610 mm |
| Thickness | 30 mm |
| Color | Natural |
