  3. PA6 E FG 115x1000 mm natural
EUR List Price €

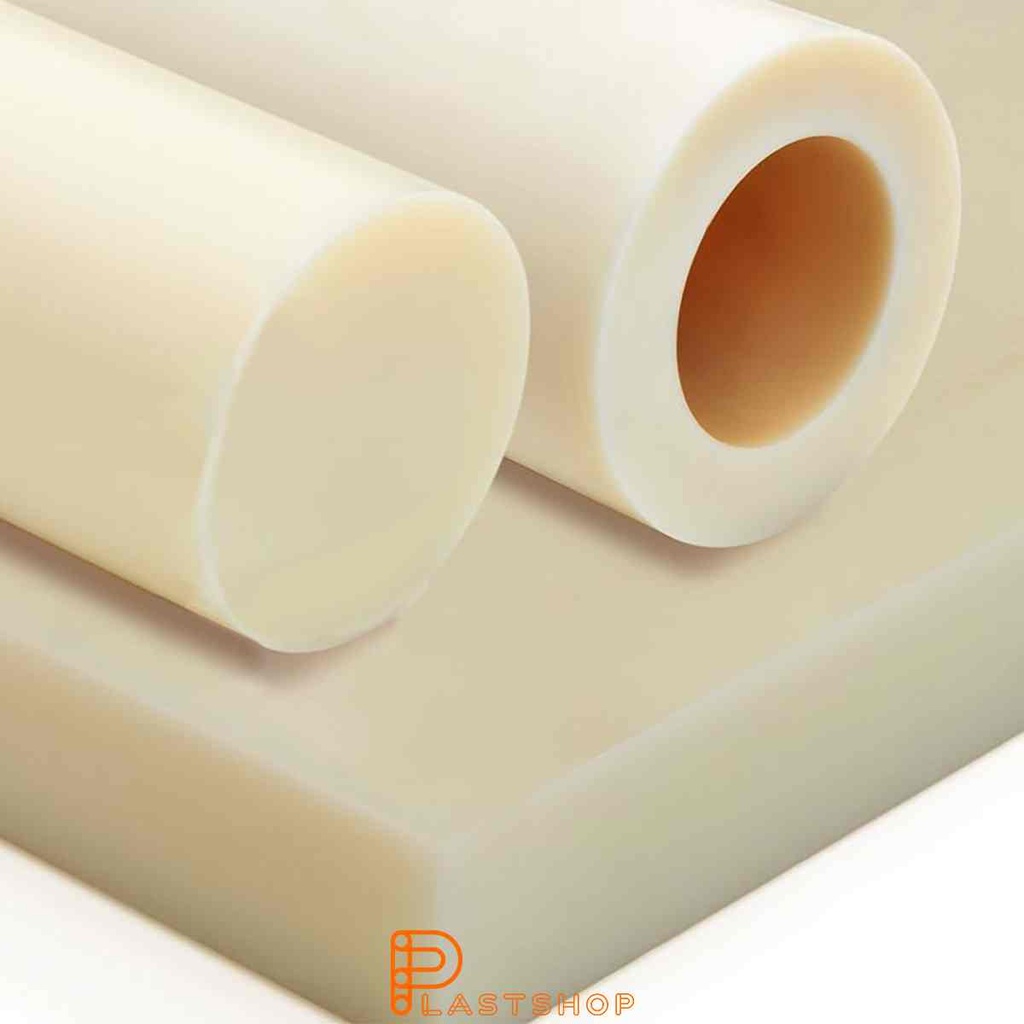

PA6 E FG 115x1000 mm natural

PA6 E FG 115x1000 mm natural

https://utv.plastshop.se/web/image/product.template/32582/image_1920?unique=f250234
SKU:
P1001229
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Outer diameter
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA round bar

Share

PA6 E FG 115x1000 mm natur PA6 OL is known for its enhanced lubricity, reduced friction, and excellent wear resistance. The addition of oil provides improved lubricity, which reduces friction between surfaces and results in smoother movement and decreased wear. This material is particularly suitable for use in high-friction applications or where high wear resistance is crucial. PA6 OL can be used in applications where sliding or movement is common, such as moving parts or mechanical components. Contact us to learn more about how PA6 OL can be used in your specific application.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.14 g/cm³ ISO 1183
Density 1.13 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.5 % ISO 62
Water absorption to saturation 9.5 % ISO 62
Water Absorption to Saturation 9 % ISO 62
Water Absorption to Saturation 9.5 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 70 MPa DIN EN ISO 527
Tensile Strength 83 MPa ISO 527
Modulus of elasticity (tensile) 3250 MPa ISO 527-2
Modulus of elasticity (tensile) 3330 MPa ISO 527
Breakdown Voltage 75 MPa ISO 527-2
Breakdown Voltage 54 MPa ISO 527
Break Elongation 40 % ISO 527-2
Break Elongation 50 % ISO 527
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 76 MPa ISO 527-2
Flexural Strength 100 MPa ISO 178
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 5.5 kJ/m² ISO 179/1eA
Notched impact strength (Charpy) 7 kJ/m² ISO 179
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 82 ° Shore D DIN EN ISO 868
Hardness Shore D 80 ° Shore D ISO 868
Ball pressure hardness 150 MPa ISO 2039-1
Ball pressure hardness 155 MPa ISO 2039
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 220 °C ISO 3146
Melting point 220 °C ISO 3146
Maximal operating temperature (short-term) 160 °C
Maximal operating temperature (short-term) 130 °C UL746B
Maximum Operating Temperature 90.5 °C
Maximum Operating Temperature 85 °C
Minimum temperature -36 °C
Minimum temperature -40 °C
Heat deflection temperature (HDT/A) 70 °C ISO 75-2
Heat deflection temperature (HDT/A) 75 °C ISO 75-2
Heat deflection temperature (HDT/B) 140 °C ISO 75-2
Heat deflection temperature (HDT/B) 190 °C ISO 75-2
Vicat softening temperature (VST/B/50) 190 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.32 W/(m·K) DIN 52612
Thermal Conductivity 0.28 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 1.1 10⁻⁴/K ISO 11359
Thermal Expansion Coefficient 0.9 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 30 kV/mm IEC 60243-1
Dielectric Strength 25 kV/mm IEC 60243-1
Volume Resistivity 10000000000000 Ω·cm IEC 60093
Volume Resistivity 101200 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.8 - IEC 60250
Dielectric Constant (1 MHz) 3.6714 - IEC 60250
Dielectric loss factor (1 MHz) 0.03 - IEC 60250
Dielectric Constant (100 Hz) 3.9 - IEC 60250
Dielectric loss factor (1 MHz) 0.023 - IEC 60250
Dielectric loss factor (100 Hz) 0.0195 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Egenskap Värde Enhet Teststandard
Flammability Classification (UL 94) 3 UL 94
