  3. PA6 E 1000x610x70 mm natural
EUR List Price €

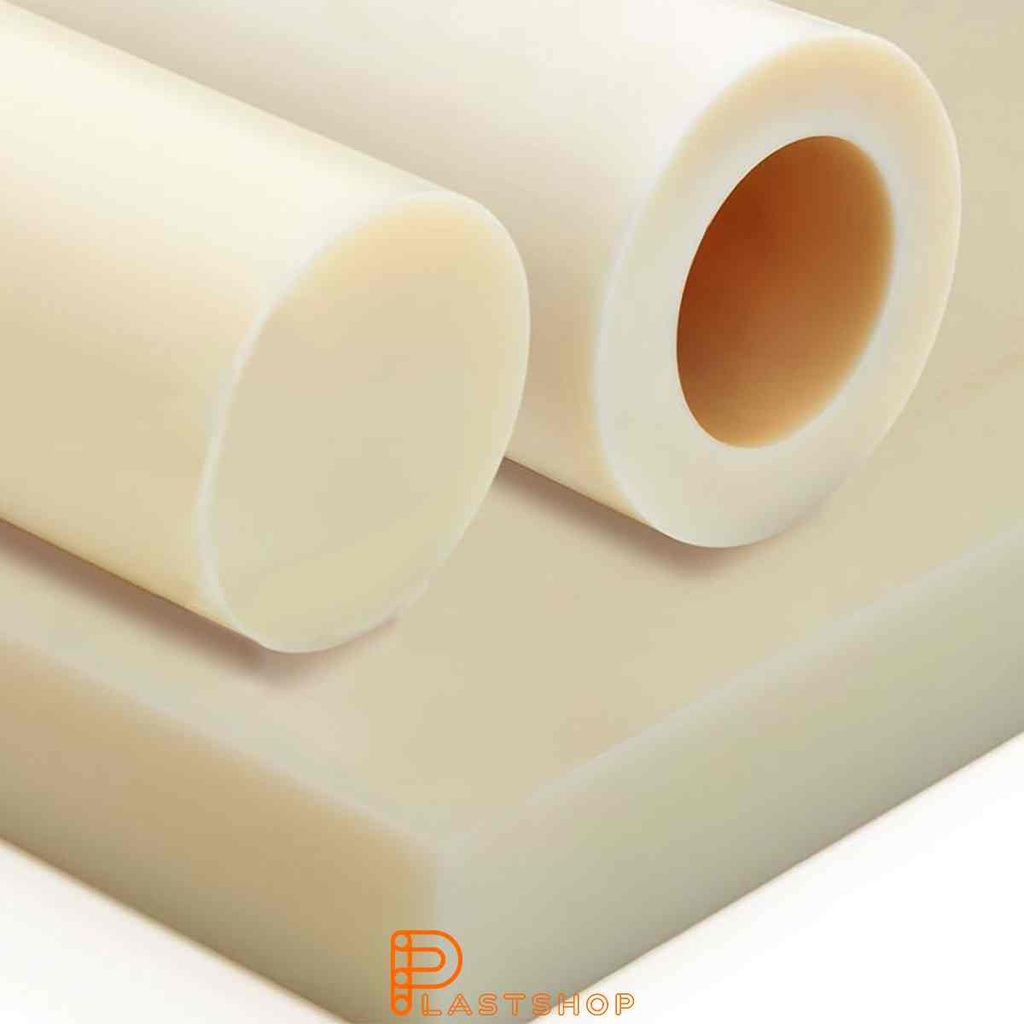

PA6 E 1000x610x70 mm natural

PA6 E 1000x610x70 mm natural

https://utv.plastshop.se/web/image/product.template/24152/image_1920?unique=755d454
SKU:
P1001095
(0.00 € / Units)
  • Material
  • Format
  • Length
  • Width
  • Thickness
  • Color

This combination does not exist.

 or    to get a price
Contact Us
Kategori: PA Sheet

Share

PA6 E 1000x610x70 mm natur Flame-retardant properties make PA an ideal material for applications where fire safety is of utmost importance. It has high tensile strength, stiffness, and impact resistance, making it a strong and durable material choice. PA also offers good chemical resistance to a range of common chemicals and solvents. It is suitable for use in components and parts that require both mechanical strength and fire safety, such as the electrical and electronics industry, automotive industry, and construction sector. If you need help selecting the right material for your application, contact us.

Tekniska specifikationer

Density & Weight
Egenskap Värde Enhet Teststandard
Density 1.14 g/cm³ ISO 1183
Moisture Absorption
Egenskap Värde Enhet Teststandard
Water absorption to saturation 2.5 % ISO 62
Water Absorption to Saturation 9 % ISO 62
Tensile Properties
Egenskap Värde Enhet Teststandard
Tensile Strength 70 MPa DIN EN ISO 527
Modulus of elasticity (tensile) 3250 MPa ISO 527-2
Breakdown Voltage 75 MPa ISO 527-2
Break Elongation 40 % ISO 527-2
Flexural Properties
Egenskap Värde Enhet Teststandard
Flexural Strength 76 MPa ISO 527-2
Impact Resistance
Egenskap Värde Enhet Teststandard
Notched impact strength (Charpy) 5.5 kJ/m² ISO 179/1eA
Hardness
Egenskap Värde Enhet Teststandard
Hardness Shore D 82 ° Shore D DIN EN ISO 868
Ball pressure hardness 150 MPa ISO 2039-1
Temperature Limits
Egenskap Värde Enhet Teststandard
Melting point 220 °C ISO 3146
Maximal operating temperature (short-term) 160 °C
Maximum Operating Temperature 90.5 °C
Minimum temperature -36 °C
Heat deflection temperature (HDT/A) 70 °C ISO 75-2
Heat deflection temperature (HDT/B) 140 °C ISO 75-2
Vicat softening temperature (VST/B/50) 190 °C ISO 306
Thermal Conductivity
Egenskap Värde Enhet Teststandard
Thermal Conductivity 0.28 W/(m·K) DIN 52612
Thermal Expansion
Egenskap Värde Enhet Teststandard
Thermal Expansion Coefficient 0.9 10⁻⁴/K ISO 11359
Insulation Properties
Egenskap Värde Enhet Teststandard
Dielectric Strength 25 kV/mm IEC 60243-1
Volume Resistivity 101200 Ω·cm IEC 60093
Dielectric Constant (1 MHz) 3.6714 - IEC 60250
Dielectric Constant (100 Hz) 3.9 - IEC 60250
Dielectric loss factor (1 MHz) 0.023 - IEC 60250
Dielectric loss factor (100 Hz) 0.0195 - IEC 60250
Static spread
Egenskap Värde Enhet Teststandard
Surface Resistivity 10000000000000 Ω IEC 60093
Comparative Tracking Index (CTI) 600 V IEC 60112
Fire Classification
Egenskap Värde Enhet Teststandard
Flammability Classification (UL 94) 3 UL 94
