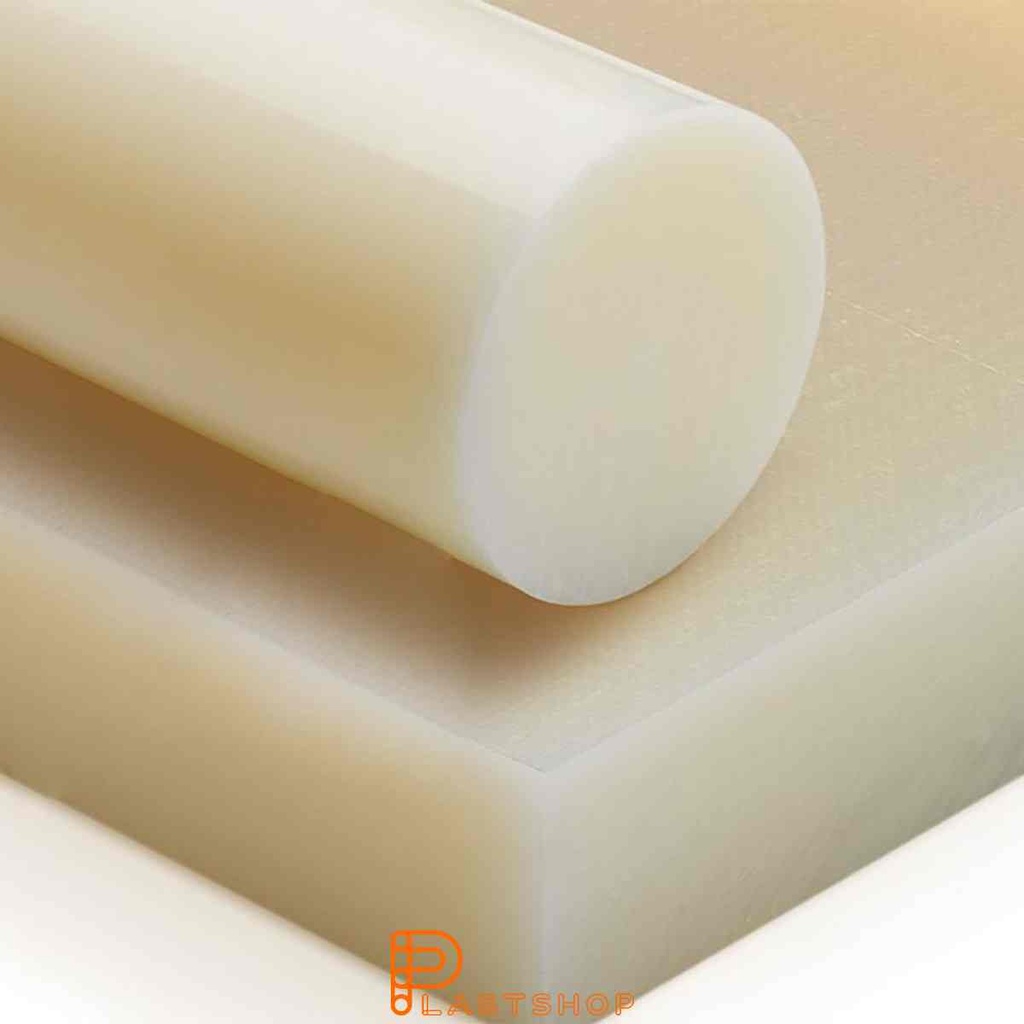

PA12 1000x1000x5 mm natur
P1000525[P1000525] PA12 1000x1000x5 mm natur
Material
PA
Format
Plate
Length
1000 mm
Width
1000 mm
Thickness
5 mm
Color
Natural
Egenskaper
Color
Natural
Length
1000 mm
Thickness
5 mm
Width
1000 mm
| Material | PA |
| Format | Plate |
| Length | 1000 mm |
| Width | 1000 mm |
| Thickness | 5 mm |
| Color | Natural |
This content will be shared across all product pages.
Om produkten
PA12 1000x1000x5 mm natur
Flame-retardant properties make PA an ideal material for applications where fire safety is of utmost importance. It has high tensile strength, stiffness, and impact resistance, making it a strong and durable material choice. PA also offers good chemical resistance to a range of common chemicals and solvents. It is suitable for use in components and parts that require both mechanical strength and fire safety, such as the electrical and electronics industry, automotive industry, and construction sector. If you need help selecting the right material for your application, contact us.
Tekniska specifikationer
| Egenskap | Värde | Enhet | Teststandard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.04 | g/cm³ | |
| Moisture Absorption | |||
| Water absorption to saturation | 3 | % | ISO 62 |
| Water Absorption to Saturation | 3 | % | ISO 62 |
| Tensile Properties | |||
| Tensile Strength | 66 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 1470 | MPa | ISO 527 |
| Breakdown Voltage | 45 | MPa | ISO 527 |
| Break Elongation | 50 | % | ISO 527 |
| Flexural Properties | |||
| Flexural Strength | 53 | MPa | DIN EN ISO 527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 7 | kJ/m² | DIN EN ISO 179-1 |
| Hardness | |||
| Hardness Shore D | 83 | ° Shore D | ISO 868 |
| Ball pressure hardness | 90 | MPa | ISO 2039 |
| Temperature Limits | |||
| Melting point | 180 | °C | DIN EN ISO 11357 |
| Maximal operating temperature (short-term) | 133 | °C | UL746B |
| Maximum Operating Temperature | 110 | °C | |
| Heat deflection temperature (HDT/A) | 115 | °C | ISO 75 |
| Heat deflection temperature (HDT/B) | 135 | °C | ISO 75 |
| Vicat softening temperature (VST/B/50) | 50 | °C | ISO 306 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 0.9 | 10⁻⁴/K | ISO 11359 |
| Insulation Properties | |||
| Dielectric Strength | 34 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹¹ | Ω | IEC 60093 |
| Dielectric Constant (1 MHz) | 1 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 1 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | ~10¹³ | Ω | IEC 60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
| Fire Classification | |||
| Flammability Classification (UL 94) | 60695 | UL 94 | |
Color
Natural
Length
1000 mm
Material
Produktens basmaterial
Thickness
5 mm
Width
1000 mm
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
High Impact Resistance
Utmärkt motstånd mot slag och stötar
Low Temperature Resistant
Behåller mekaniska egenskaper vid låga temperaturer
Low Water Absorption
Minimal fuktupptagning, dimensionsstabil
Vibration Damping
God förmåga att absorbera vibrationer
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Turning
Bearbetning i svarv
Identifiering
| Produktnamn | Polyamid (PA) / Nylon |
|---|---|
| Klassificering | not_classified |
Fysikaliska egenskaper
| Utseende | Fast, halvgenomskinlig till ogenomskinlig termoplast. Naturvit till svart. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 220-260°C (beroende på typ) |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten (absorberar fukt) |
Beständig
Delvis bestandig
Ej bestandig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetone | 100 | |
| Ammonia | conc. | |
| Ammonium chloride | - | |
| Amyl alcohol | - | |
| Apple juice | - | |
| Benzene | - | |
| Bleaching solution | 12.5 cl | |
| Boric acid | 100 | |
| Brake fluid | - | |
| Butyl acetate | - | |
| Calcium chloride | - | |
| Carbon disulphide | 100 | |
| Carbon tetrachloride | - | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | - | |
| Citric acid | 10 | |
| Cresol | - | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | - | |
| Diethylene oxide | - | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Food oil | - | |
| Formaldehyde (aqueous) | 40 | |
| Formic acid | 10 | |
| Fuel (aromatic free) | - | |
| Fuel oil | - | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | conc. | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide (aqueous) | - | |
| Isopropyl alcohol | 100 | |
| Linseed oil | - | |
| Mercurochrome | - | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Milk | - | |
| Mineral oils (aromatic free) | - | |
| Nitric acid | 50 | |
| Nitric acid | 10 | |
| Nitrobenzene | - | |
| Oxalic acid | - | |
| Ozone (gas) | ≤ 0.5 ppm | |
| Paraffin oil | 100 | |
| Perchloroethylene | - | |
| Petroleum | 100 | |
| Petroleum ether | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | - | |
| Propyl alcohol | - | |
| Pyridine | - | |
| Silicone oil | - | |
| Sodium carbonate (aqueous) | - | |
| Sodium chloride (aqueous) | - | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate (aqueous) | - | |
| Sodium thiosulfate | - | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | - | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | - | |
| Xylene | - |
Specifications
| Material | PA |
| Format | Plate |
| Length | 1000 mm |
| Width | 1000 mm |
| Thickness | 5 mm |
| Color | Natural |
