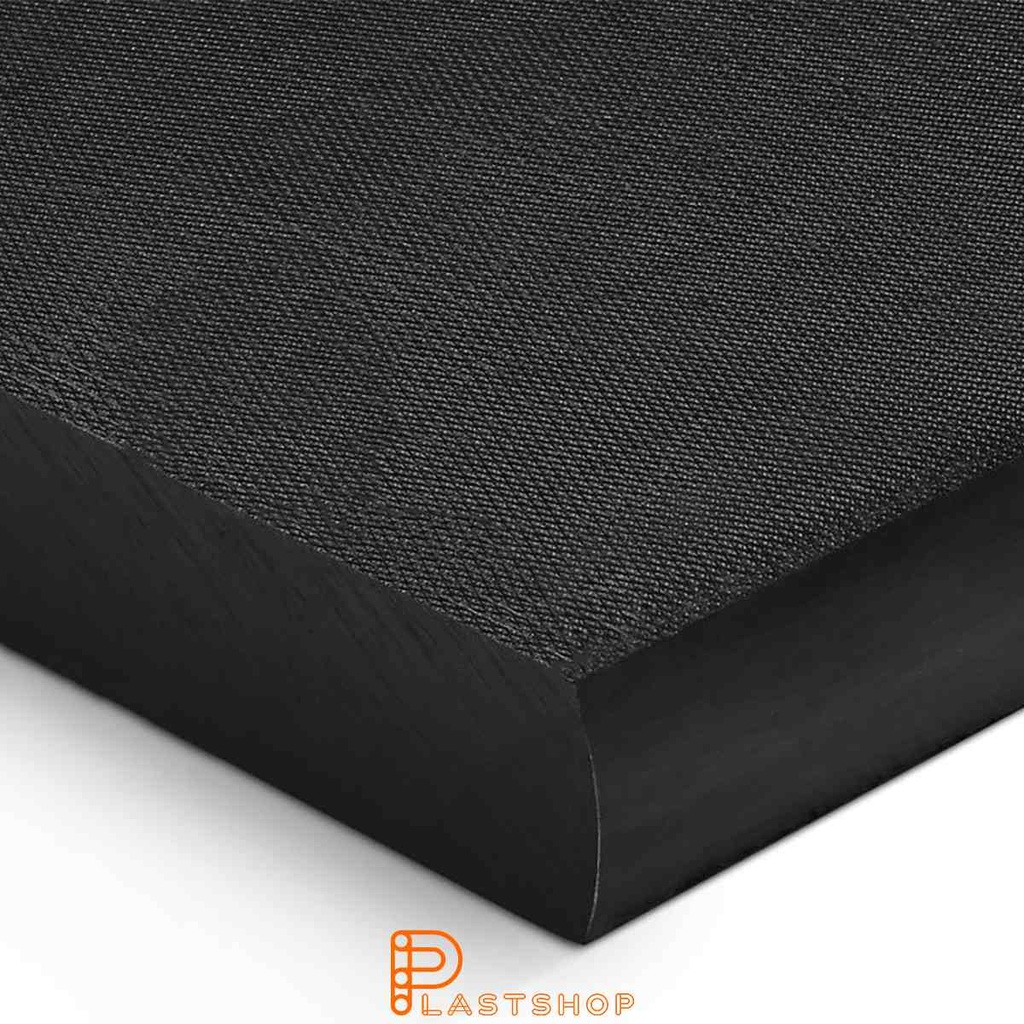

PVDF 1000x610x100 mm svart
PVDF stands out for its exceptional chemical resistance, thermal stability, and electrical insulation properties. This makes it a popular choice for demanding applications across various industries. PVDF offers a good combination of mechanical strength and wear resistance, and can operate at high temperatures without losing its mechanical and physical properties. It is often used in the chemical industry, water treatment, and electrical engineering. If you need a material that can handle tough conditions, PVDF may be the right choice. Contact us if you want to know more about how PVDF can be used in your specific application.
Technical Specifications
Color
Black
Length
1000 mm
Material
Produktens basmaterial
Thickness
100 mm
Width
610 mm
| Property | Value | Unit | Test standard |
|---|---|---|---|
| Density & Weight | |||
| Density | 1.78 | g/cm³ | ISO1183 |
| Moisture Absorption | |||
| Water absorption to saturation | 0.15 | % | ISO62 |
| Water Absorption to Saturation | 0.35 | % | ISO62 |
| Tensile Properties | |||
| Tensile Strength | 40 | MPa | ISO 527 |
| Modulus of elasticity (tensile) | 2200 | MPa | ISO527-2 |
| Breakdown Voltage | 46 | MPa | ISO 527 |
| Break Elongation | 17 | % | ISO527-2 |
| Flexural Properties | |||
| Flexural Strength | 62 | MPa | ISO527-2 |
| Impact Resistance | |||
| Notched impact strength (Charpy) | 8 | kJ/m² | ISO 179 |
| Impact Resistance (Charpy) | 150 | kJ/m² | ISO179/1eU |
| Hardness | |||
| Hardness Shore D | 80 | ° Shore D | ISO868 |
| Ball pressure hardness | 120 | MPa | ISO 2039 |
| Temperature Limits | |||
| Melting point | 171 | °C | ISO11357 |
| Maximal operating temperature (short-term) | 142 | °C | UL746B |
| Maximum Operating Temperature | 130 | °C | UL746B |
| Minimum temperature | -26 | °C | |
| Heat deflection temperature (HDT/A) | 104 | °C | ISO 75 |
| Heat deflection temperature (HDT/B) | 145 | °C | ISO 75 |
| Vicat softening temperature (VST/B/50) | 138 | °C | ISO 306 |
| Thermal Conductivity | |||
| Thermal Conductivity | 0.25 | W/(m·K) | DIN22007-4 |
| Thermal Expansion | |||
| Thermal Expansion Coefficient | 1.6 | 10⁻⁴/K | ISO11359 |
| Insulation Properties | |||
| Dielectric Strength | 27 | kV/mm | IEC 60243-1 |
| Volume Resistivity | 10¹³ | Ω·cm | IEC 60093 |
| Dielectric Constant (1 MHz) | 7.7 | - | IEC 60250 |
| Dielectric loss factor (1 MHz) | 0.1 | - | IEC 60250 |
| Static spread | |||
| Surface Resistivity | 10¹⁴ | Ω | IEC60093 |
| Comparative Tracking Index (CTI) | 600 | V | IEC 60112 |
Identification
| Product name | Polyvinylidenfluorid (PVDF) |
|---|---|
| Classification | not_classified |
| Supplier | ARC Gruppen AB // PlastShop.se |
| Chemical characterization | Polyvinylidenfluorid (PVDF), CAS 24937-79-9 |
| Physical/chemical hazards | Brandfarlig.. Damm kan orsaka mekanisk irritation. |
|---|---|
| Health hazards | Brandfarlig.. Damm kan orsaka mekanisk irritation. |
| Environmental hazards | Materialet är inte skadligt för miljön, men är inte biologiskt nedbrytbart. |
Physical properties
| Fysisk form | Fast, ogenomskinlig termoplast. Naturvit. |
|---|---|
| Färg | Fast, ogenomskinlig termoplast. Naturvit. |
| Odour | Lätt, produktspecifik |
| Melting point | 170-175°C |
|---|---|
| Auto-ignition | ca 420°C |
| Decomposition temp. | >350 °C |
| Solubility | Olöslig i vatten |
Handling and storage
| Handling | Vid bearbetning av halvfabrikatet bör spån sugas bort för att undvika halkskador. |
|---|---|
| Storage | Förvara inert produkt torrt och svalt. Håll lager- och arbetsutrymmen välventilerade. Håll borta från öppen låga, värmekälla eller antändning. På grund av risken för kollaps, stapla inte mer än två pallar ovanpå varandra. Pallar ska inte staplas ovanpå varandra längs gångar. |
Personal protection
| Gloves | Skyddshandskar vid kontakt med varmt material. |
|---|---|
| Eyes | Skyddsglasögon eller visir vid bearbetning. |
| Respiratory | Adekvat ventilering vid arbetsplatsen krävs. |
Stability and reactivity
| Förhållanden | Temperaturer över smältpunkten. |
|---|---|
| Materials to avoid | Starka oxidanter. |
| Decomposition products | Fluorväte (HF), koldioxid, kolmonoxid. |
Transport information
Inte klassificerad som farligt gods.
Legal specifications
Produkten kräver ingen varningsetikett i enlighet med EU-direktiv.
Resistant
Partially resistant
Not resistant
| Chemical | Concentration | Resist. |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium chloride | — | |
| Amyl alcohol | — | |
| Apple juice | — | |
| Benzene | — | |
| Bleaching solution | — | |
| Boric acid | 100 | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Carbon disulphide | 100 | |
| Carbon tetrachloride | — | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Citric acid | 10 | |
| Cresol | — | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | — | |
| Diethylene oxide | — | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Food oil | — | |
| Formaldehyde (aqueous) | 40 | |
| Formic acid | 10 | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | — | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide (aqueous) | — | |
| Isopropyl alcohol | 100 | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Milk | — | |
| Mineral oils (aromatic free) | — | |
| Nitric acid | 10 | |
| Nitric acid (50%) | 50 | |
| Nitrobenzene | — | |
| Oxalic acid | — | |
| Ozone (gas) | ≤ 0.5 ppm | |
| Paraffin oil | 100 | |
| Perchloroethylene | — | |
| Petroleum | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | — | |
| Propyl alcohol | — | |
| Pyridine | — | |
| Silicone oil | — | |
| Sodium carbonate (aqueous) | — | |
| Sodium chloride (aqueous) | — | |
| Sodium hydrogen sulfite | — | |
| Sodium hydroxide solution (60%) | 60 | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate (aqueous) | — | |
| Sodium thiosulfate | — | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | — | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | — | |
| Xylene | — |
