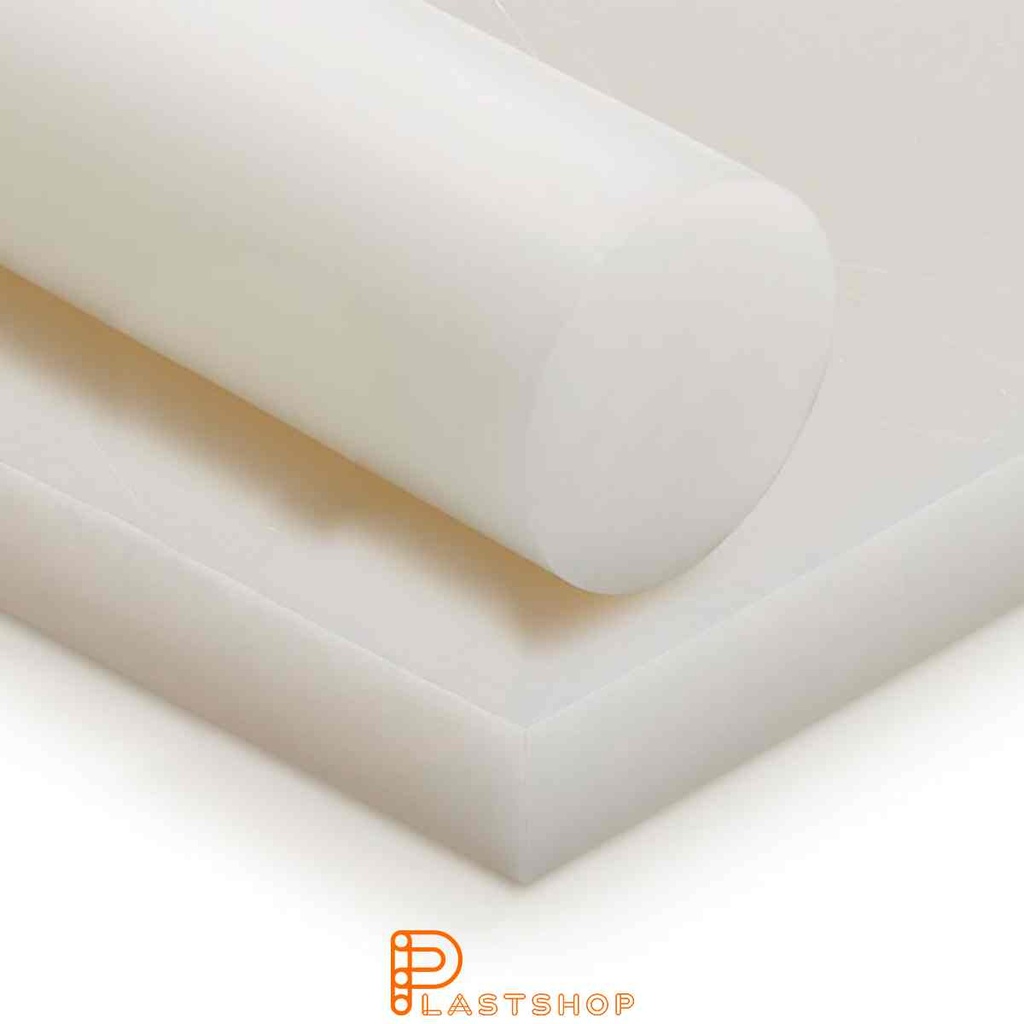

PVDF 20x3000 mm natural
[P1010613] PVDF 20x3000 mm natural
| Material | PVDF |
| Format | Round bar |
| Length | 3000 mm |
| Outer diameter | 20 mm |
| Color | Natural |
This content will be shared across all product pages.
PVDF 20x3000 mm natur
Excellent chemical resistance is one of the key properties of this material. It has a melting point of approximately 170-180 °C and can be used continuously at temperatures up to 150 °C. The benefits include excellent chemical resistance, high temperature resistance, and excellent electrical insulation. This material is suitable for use in the chemical industry and water treatment. It is ideal for applications where chemical resistance and high temperature tolerance are crucial. Contact us if you want to know more about how this material can be used in your project.
Technical Specifications
Color
Natural
Length
3000 mm
Material
Produktens basmaterial
Outer Diameter
20 mm
Chemical Resistant
God motståndskraft mot kemikalier, syror och baser
Electrically Insulating
Hög volym- och ytresistivitet
Flame Retardant
Uppfyller brandklassning V-0 eller bättre
Food Safe
Godkänd för kontakt med livsmedel (FDA/EU 10/2011)
High Temperature Resistant
Behåller mekaniska egenskaper vid höga temperaturer
Hydrolysis Resistant
Tål långvarig exponering för varmt vatten och ånga
CNC Machining
Datorstödd bearbetning
Drilling
Håltagning med borr
Milling
Bearbetning med fräs
Sawing
Kapning med såg (band-, cirkelsåg)
Turning
Bearbetning i svarv
Waterjet Cutting
Skärning med högtrycksvatten
Welding
Sammanfogning genom svetsning (varmgas, spegel, ultraljud)
Identifiering
| Produktnamn | Polyvinylidenfluorid (PVDF) |
|---|---|
| Klassificering | not_classified |
| Tillverkare | ARC Gruppen AB // PlastShop.se |
Fysikaliska egenskaper
| Utseende | Fast, ogenomskinlig termoplast. Naturvit. |
|---|---|
| Lukt | Lätt, produktspecifik |
| Smältpunkt | 170-175°C |
| Nedbrytningstemp. | >350 °C |
| Självantändning | ca 420°C |
| Löslighet | Olöslig i vatten |
Beständig
Delvis beständig
Ej beständig
| Kemikalie | Koncentration | Beständighet |
|---|---|---|
| 1,4-Dioxane | 100 | |
| 2-Hydroxypropionic acid (lactic acid) | 90 | |
| Acetic acid | 100 | |
| Acetone | 100 | |
| Ammonia | — | |
| Ammonium chloride | — | |
| Amyl alcohol | — | |
| Apple juice | — | |
| Benzene | — | |
| Bleaching solution | — | |
| Boric acid | 100 | |
| Brake fluid | — | |
| Butyl acetate | — | |
| Calcium chloride | — | |
| Carbon disulphide | 100 | |
| Carbon tetrachloride | — | |
| Chlorine (gas) | 100 | |
| Chlorobenzene | 100 | |
| Chloroform | — | |
| Citric acid | 10 | |
| Cresol | — | |
| Cyclohexanone | 100 | |
| Cyclohexene | 100 | |
| Diesel | — | |
| Diethylene oxide | — | |
| Ethyl acetate | 100 | |
| Ethyl alcohol (ethanol) | 96 | |
| Ethylene chloride | 100 | |
| Food oil | — | |
| Formaldehyde (aqueous) | 40 | |
| Formic acid | 10 | |
| Frost protection agent | — | |
| Fuel oil | — | |
| Fuel, aromatic free | — | |
| Glycerine | 100 | |
| Glycol | 100 | |
| Heptane | 100 | |
| Hydrochloric acid | 10 | |
| Hydrochloric acid (concentrated) | — | |
| Hydrofluoric acid | 40 | |
| Hydrogen peroxide | 10 | |
| Hydrogen sulfide (aqueous) | — | |
| Isopropyl alcohol | 100 | |
| Linseed oil | — | |
| Mercurochrome | — | |
| Methyl alcohol (methanol) | 100 | |
| Methyl ethyl ketone (MEK) | 100 | |
| Methylene chloride | 100 | |
| Milk | — | |
| Mineral oils (aromatic free) | — | |
| Nitric acid | 10 | |
| Nitric acid (50%) | 50 | |
| Nitrobenzene | — | |
| Oxalic acid | — | |
| Ozone (gas) | ≤ 0.5 ppm | |
| Paraffin oil | 100 | |
| Perchloroethylene | — | |
| Petroleum | 100 | |
| Phenol (aqueous) | ca. 9 | |
| Phosphoric acid | 50 | |
| Potassium hydroxide solution | 50 | |
| Premium fuel | — | |
| Propyl alcohol | — | |
| Pyridine | — | |
| Silicone oil | — | |
| Sodium carbonate (aqueous) | — | |
| Sodium chloride (aqueous) | — | |
| Sodium hydrogen sulfite | — | |
| Sodium hydroxide solution (60%) | 60 | |
| Sodium hydroxide solution (caustic soda) | 15 | |
| Sodium nitrate (aqueous) | — | |
| Sodium thiosulfate | — | |
| Sulphuric acid | 96 | |
| Tetrahydrofuran (THF) | 100 | |
| Toluene | 100 | |
| Transformer oil | — | |
| Trichloroethylene | 100 | |
| Vinegar (standard) | 5 - 10 | |
| Water | — | |
| Xylene | — |
Specifications
| Material | PVDF |
| Format | Round bar |
| Length | 3000 mm |
| Outer diameter | 20 mm |
| Color | Natural |
